Home >> Chrysler >> 2003 >> PT Cruiser Base, Standard >> Repair and Diagnosis >> Electrical >> Body Electrical >> Connector End Views >> Connector End Views >> Identifying Left Headlamp Leveling Module (Export) - Black 3 Way Connector End View

Identifying Left Headlamp Leveling Module (Export) - Black 3 Way Connector End View

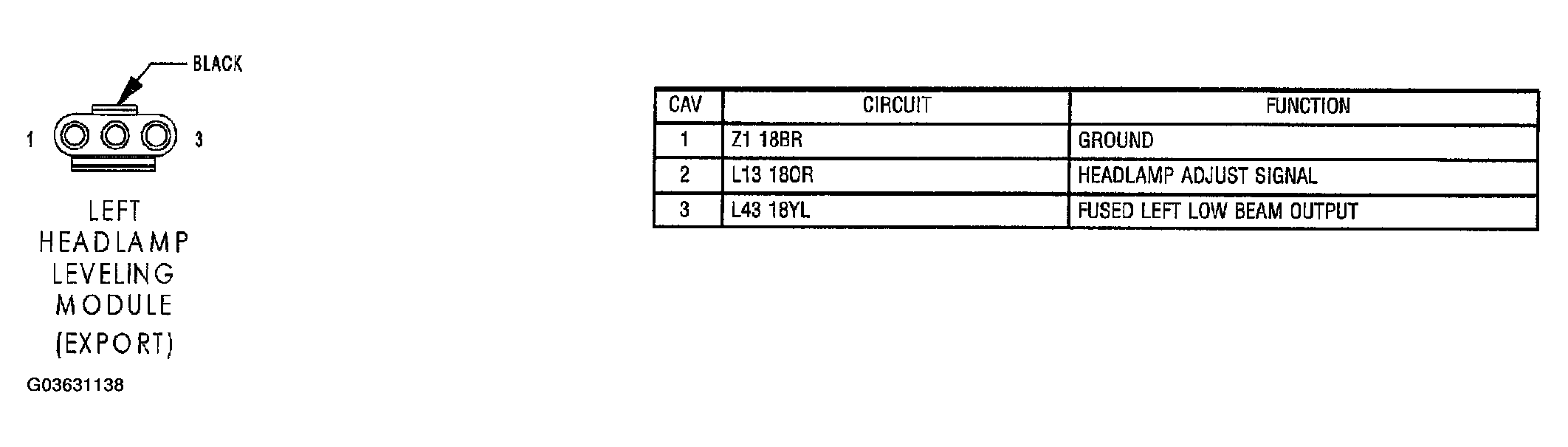

Fig 1: Identifying Left Headlamp Leveling Module (Export) - Black 3 Way Connector End View
G03631138Courtesy of DAIMLERCHRYSLER CORP.
