Home >> Chrysler >> 2003 >> PT Cruiser Base, Standard >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Body Diagnostic Procedures >> Diagnostic Information And Procedures >> Overhead Console >> Symptom: *COMPASS/TEMP MODULE INOPERATIVE >> Testing

Symptom: *COMPASS/TEMP MODULE INOPERATIVE: Testing

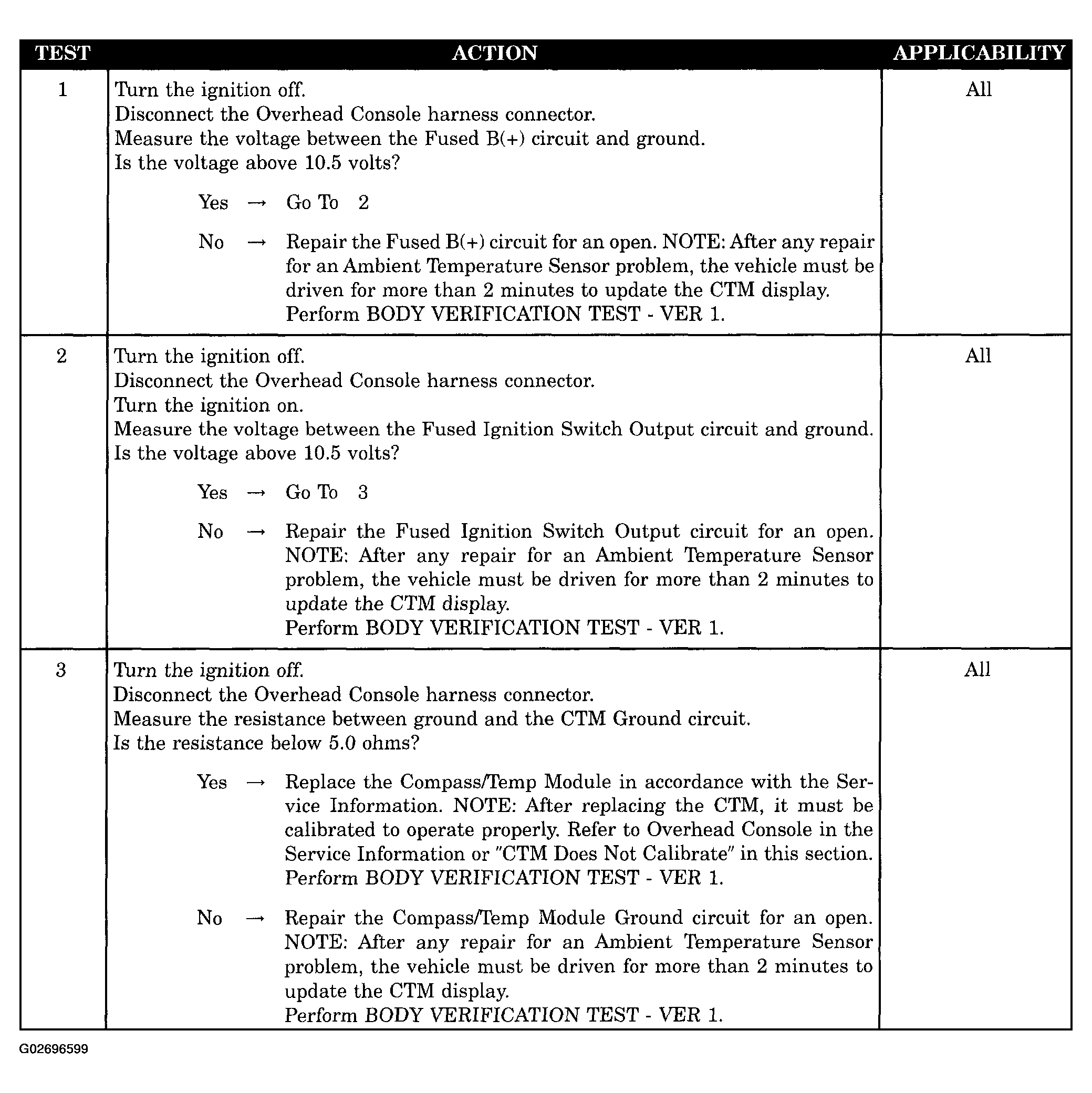

Fig 1: Testing Compass/Temp Module Inoperative

G02696599

Courtesy of DAIMLERCHRYSLER CORP.
