Symptom: *PCI BUS COMMUNICATION FAILURE: Testing

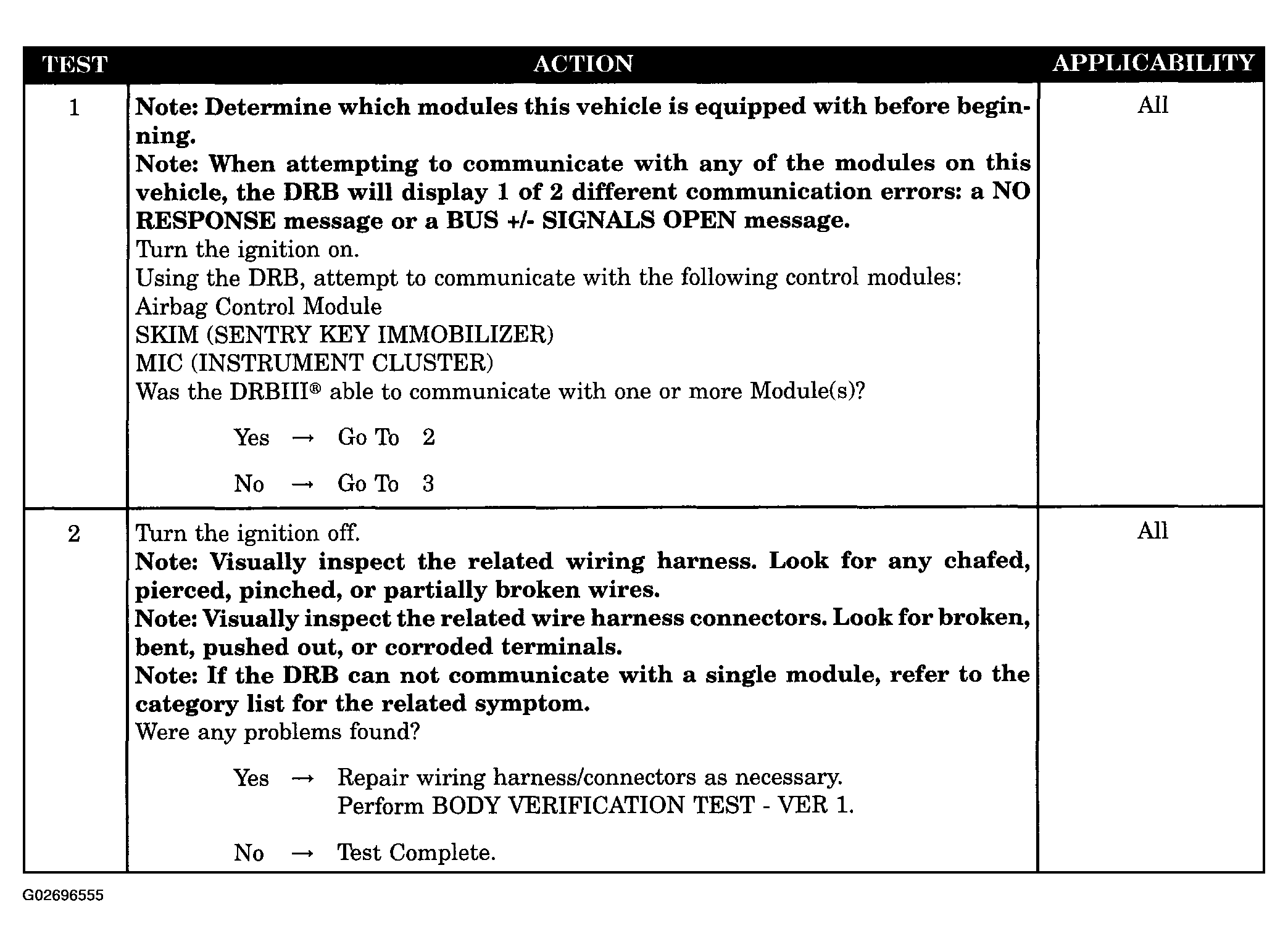

Fig 1: Testing PCI Bus Communication Failure (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

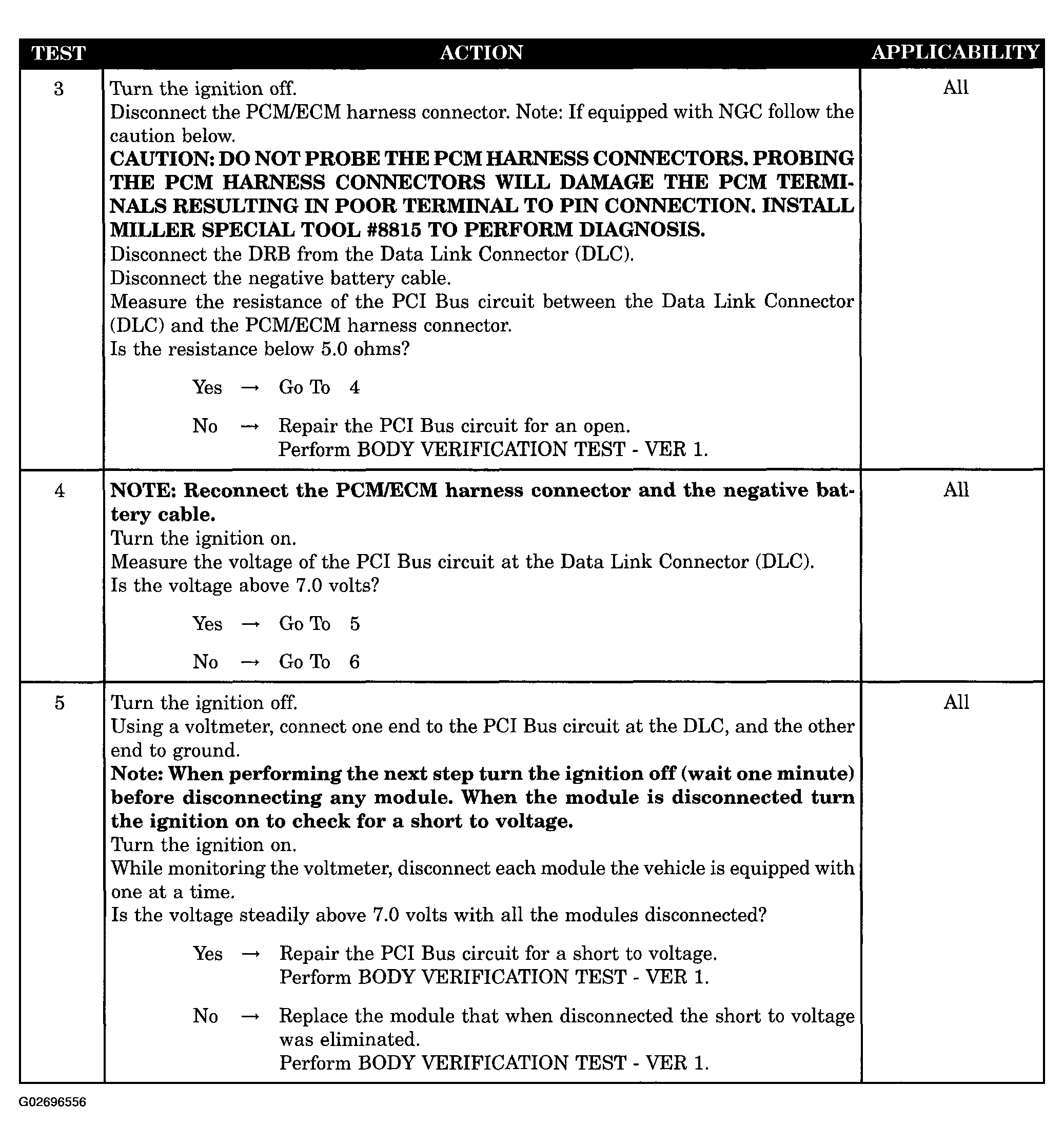

Fig 2: Testing PCI Bus Communication Failure (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

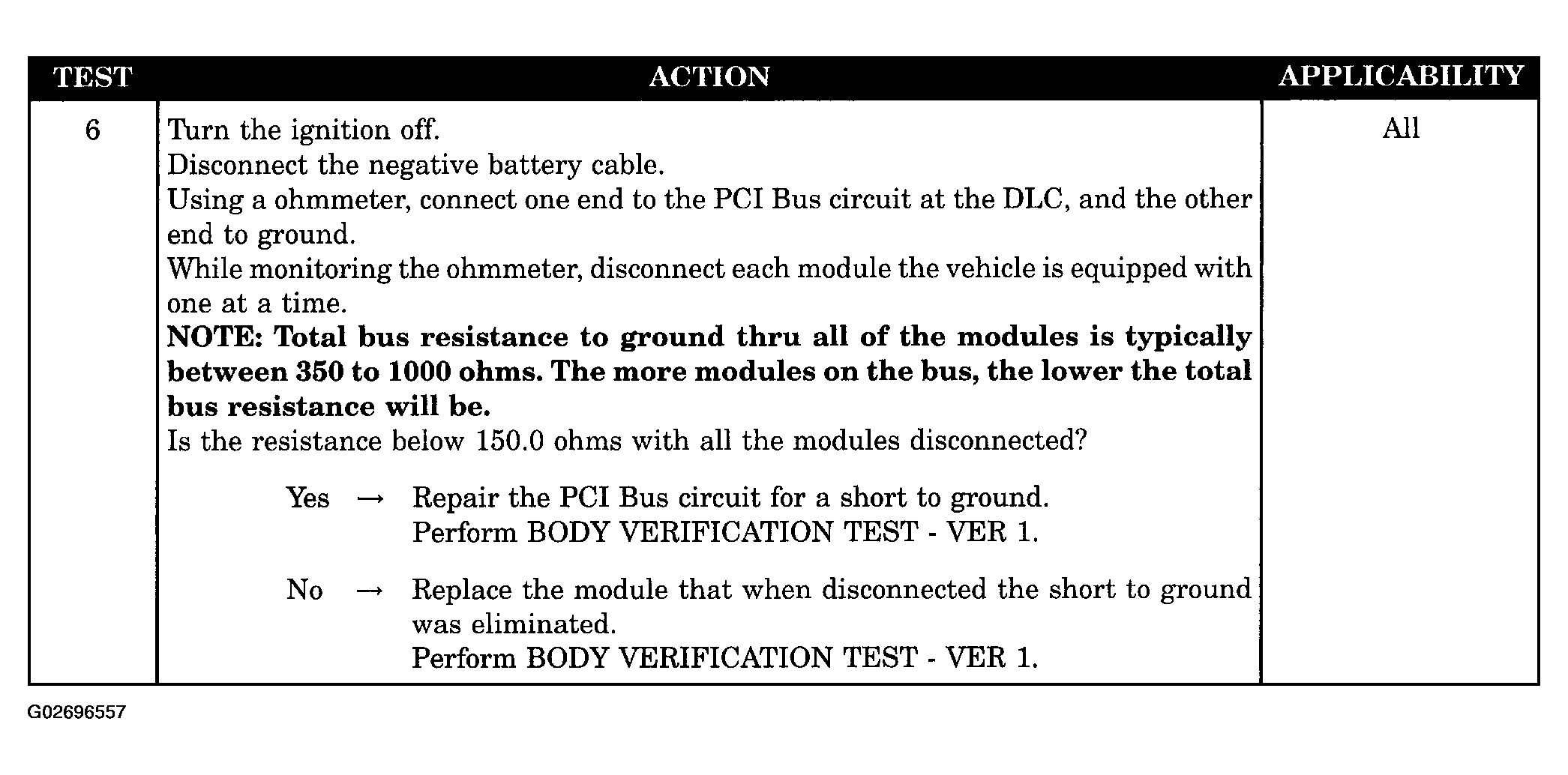

Fig 3: Testing PCI Bus Communication Failure (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
