Identifying Engine Control Module C1 (Diesel) - Black 81 Way Connector End View

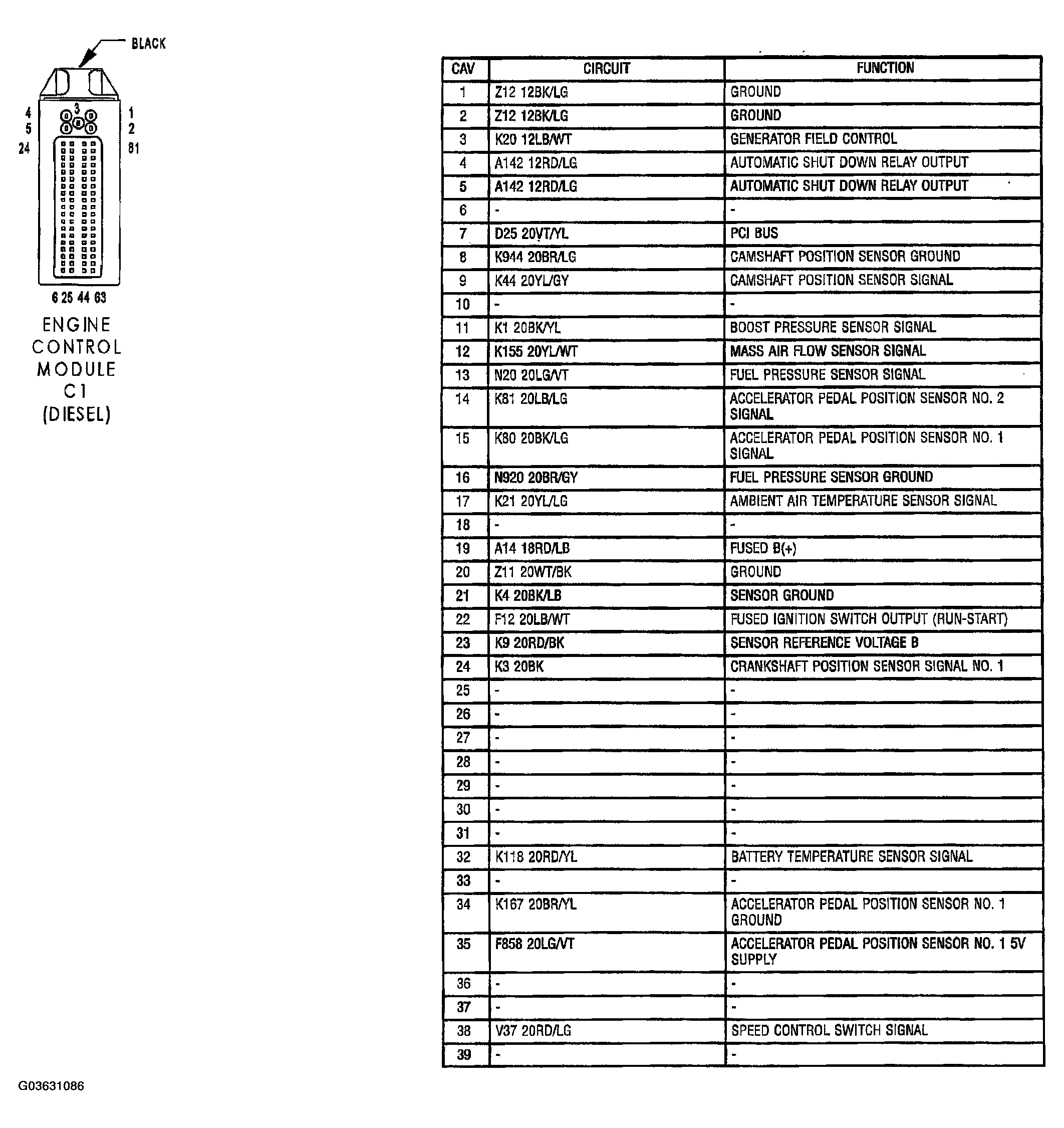

Fig 1: Identifying Engine Control Module C1 (Diesel) - Black 81 Way Connector End View
G03631086Courtesy of DAIMLERCHRYSLER CORP.

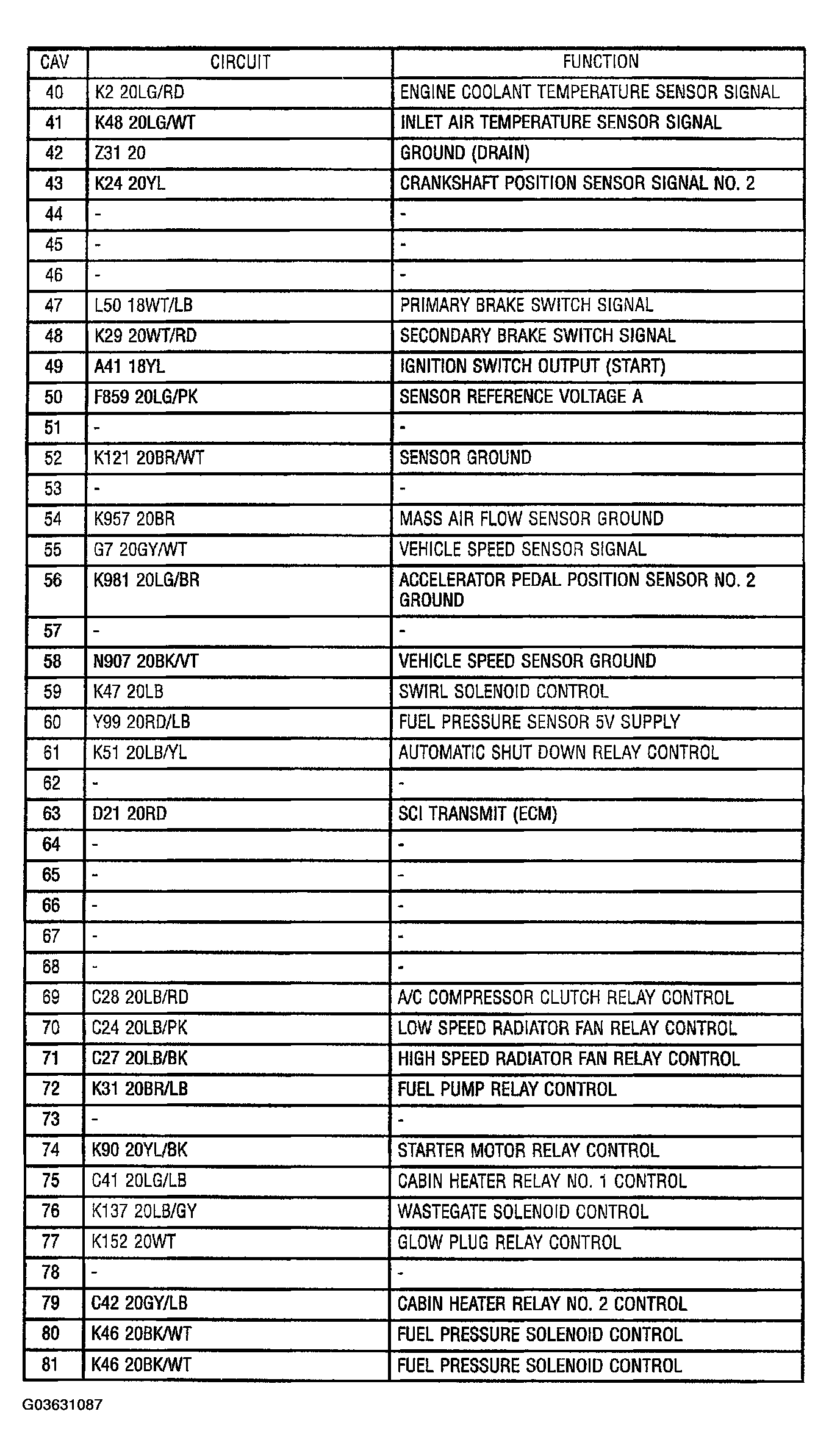

Fig 1: Identifying Engine Control Module C1 (Diesel) - Black 81 Way Connector End View
G03631087Courtesy of DAIMLERCHRYSLER CORP.
