Identifying Engine Control Module C2 (Diesel) - Black 40 Way Connector End View

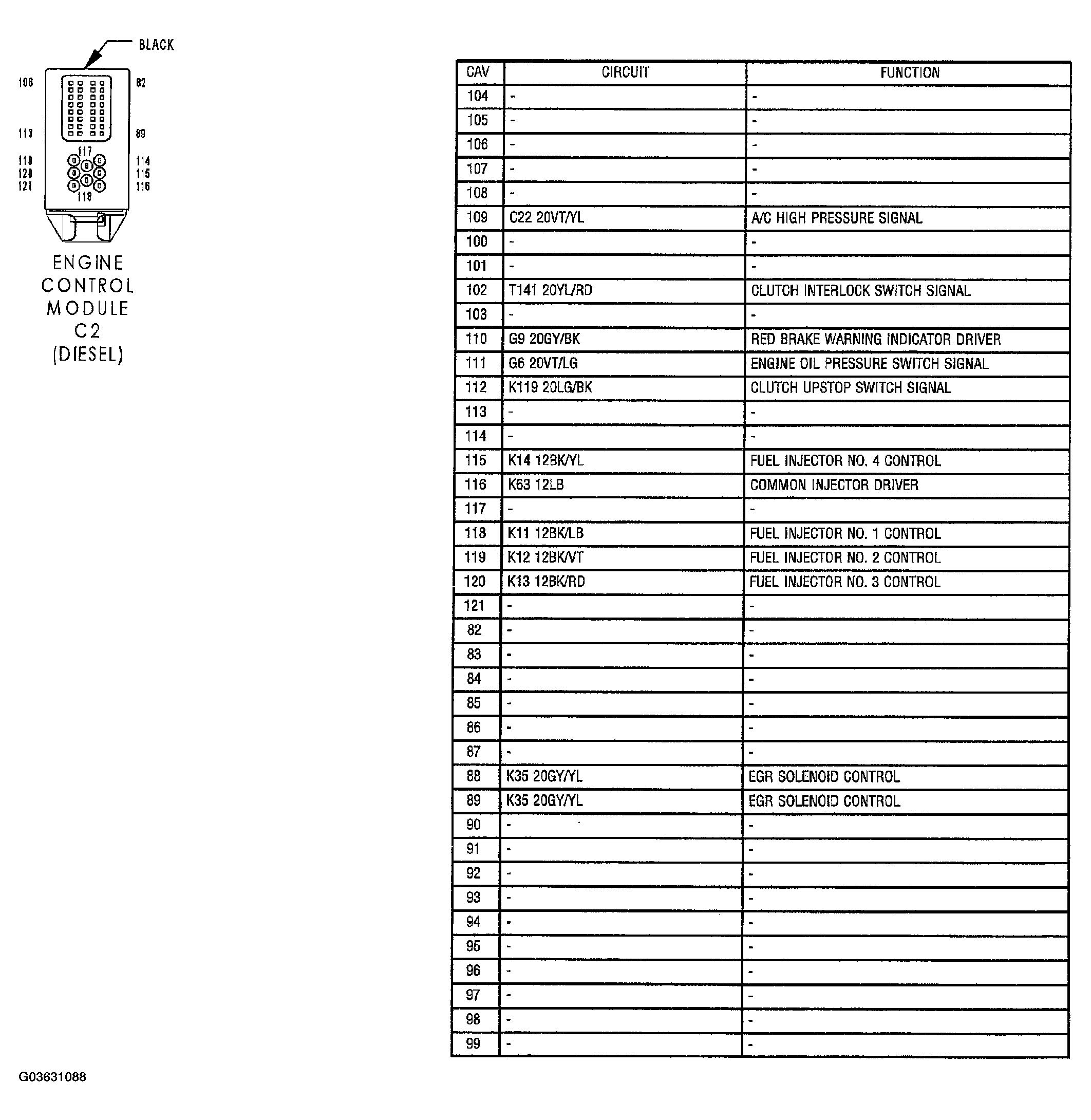

Fig 1: Identifying Engine Control Module C2 (Diesel) - Black 40 Way Connector End View

G03631088

Courtesy of DAIMLERCHRYSLER CORP.
