Vehicle Theft Security System

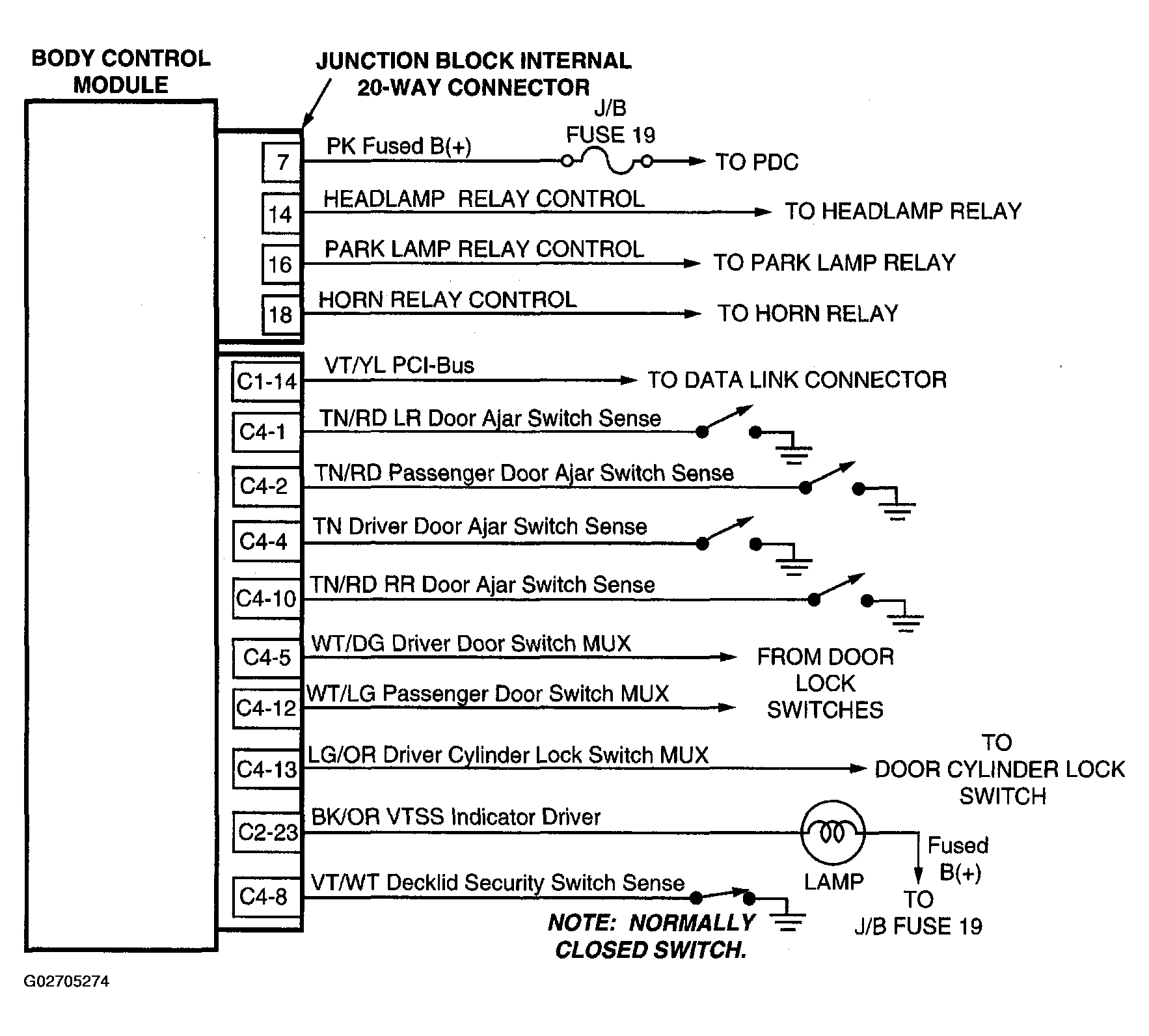

Fig 1: Schematic Diagrams - Vehicle Theft Security System

G02705274

Courtesy of DAIMLERCHRYSLER CORP.
