DECKLID Release

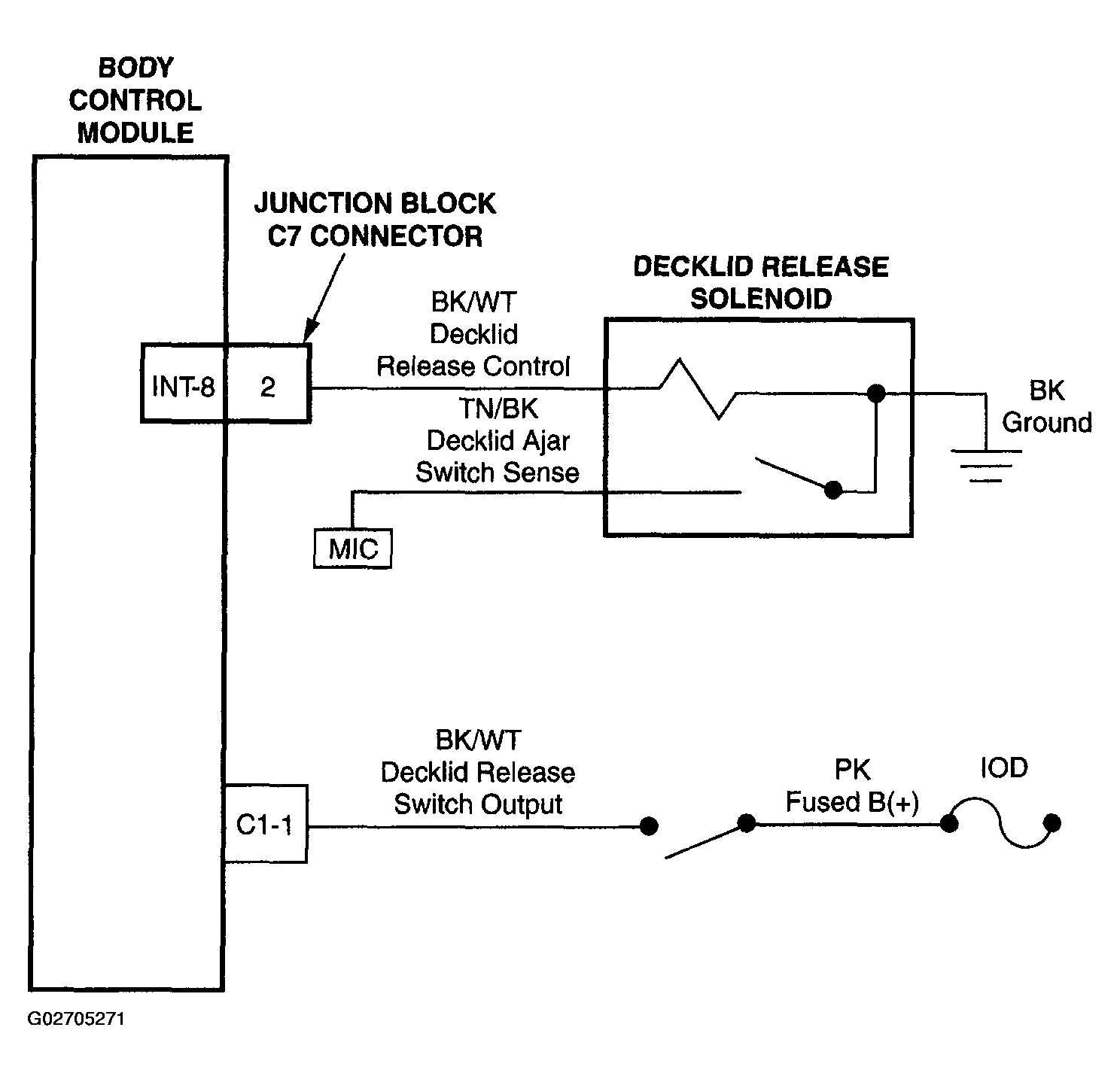

Fig 1: Schematic Diagrams - Decklid Release

G02705271

Courtesy of DAIMLERCHRYSLER CORP.
