Chime Warning System

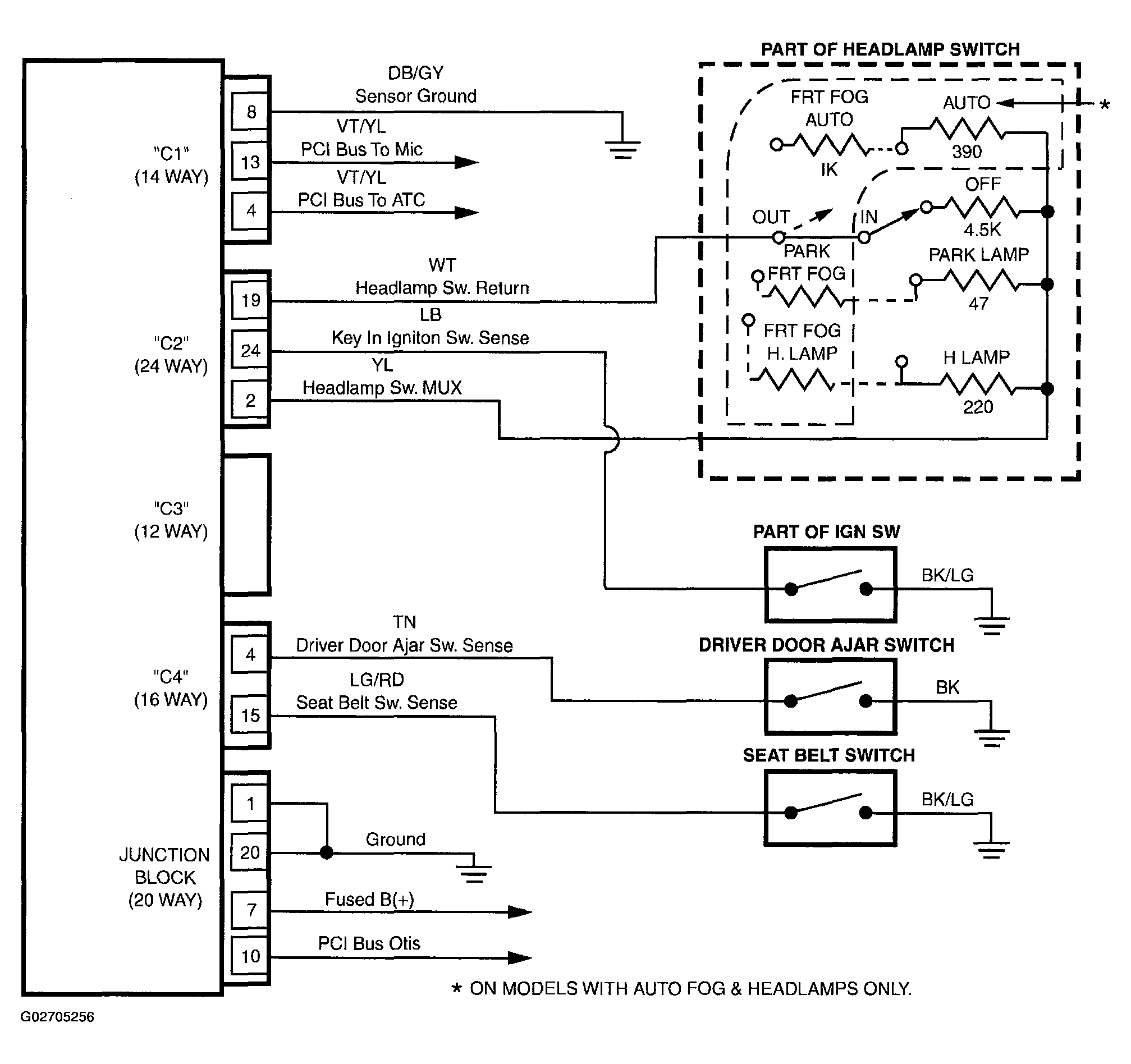

Fig 1: Schematic Diagrams - Chime Warning System
G02705256Courtesy of DAIMLERCHRYSLER CORP.
