Audio System - Midline

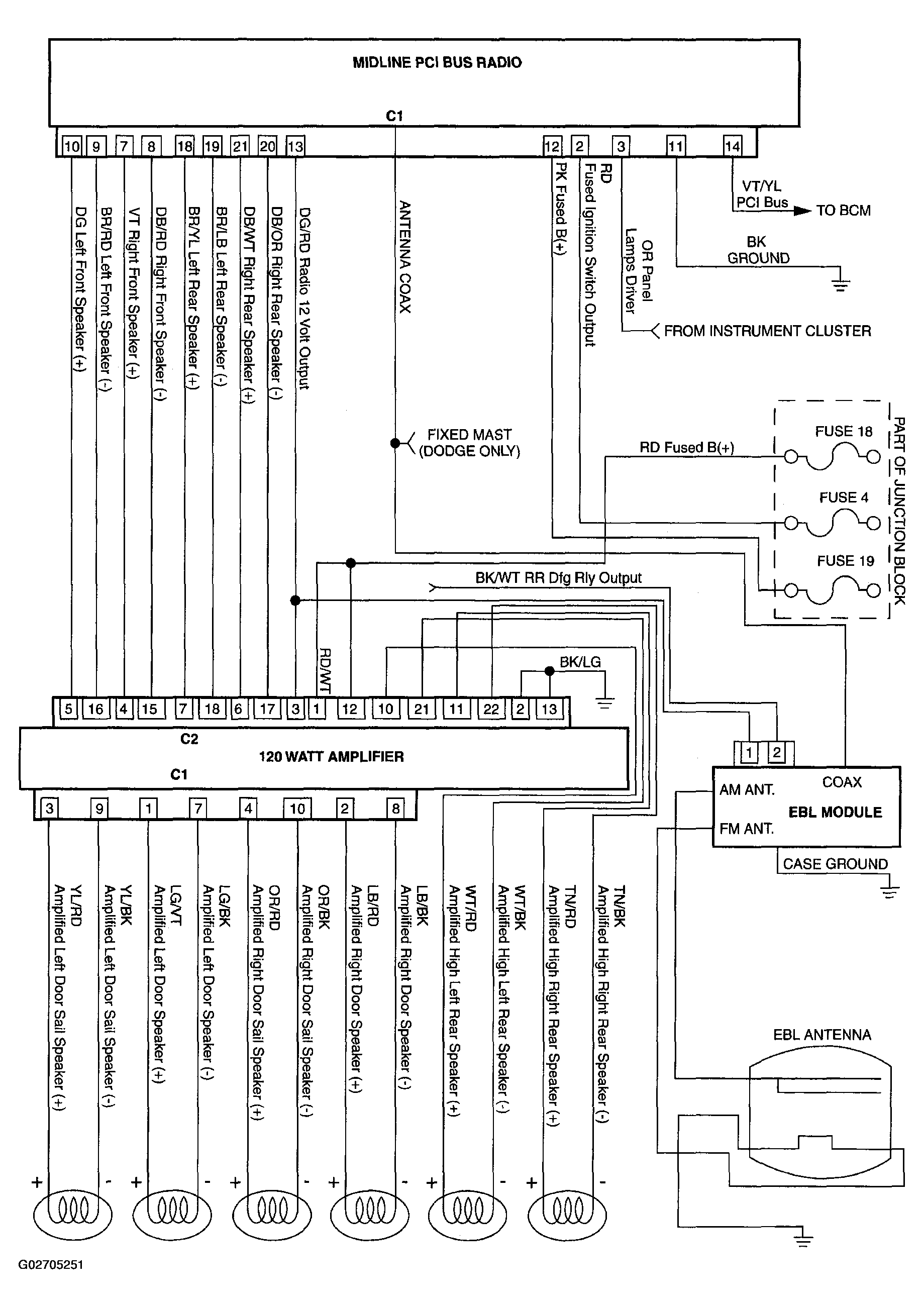

Fig 1: Schematic Diagrams - Audio System - Midline

G02705251

Courtesy of DAIMLERCHRYSLER CORP.
