Airbag Systems

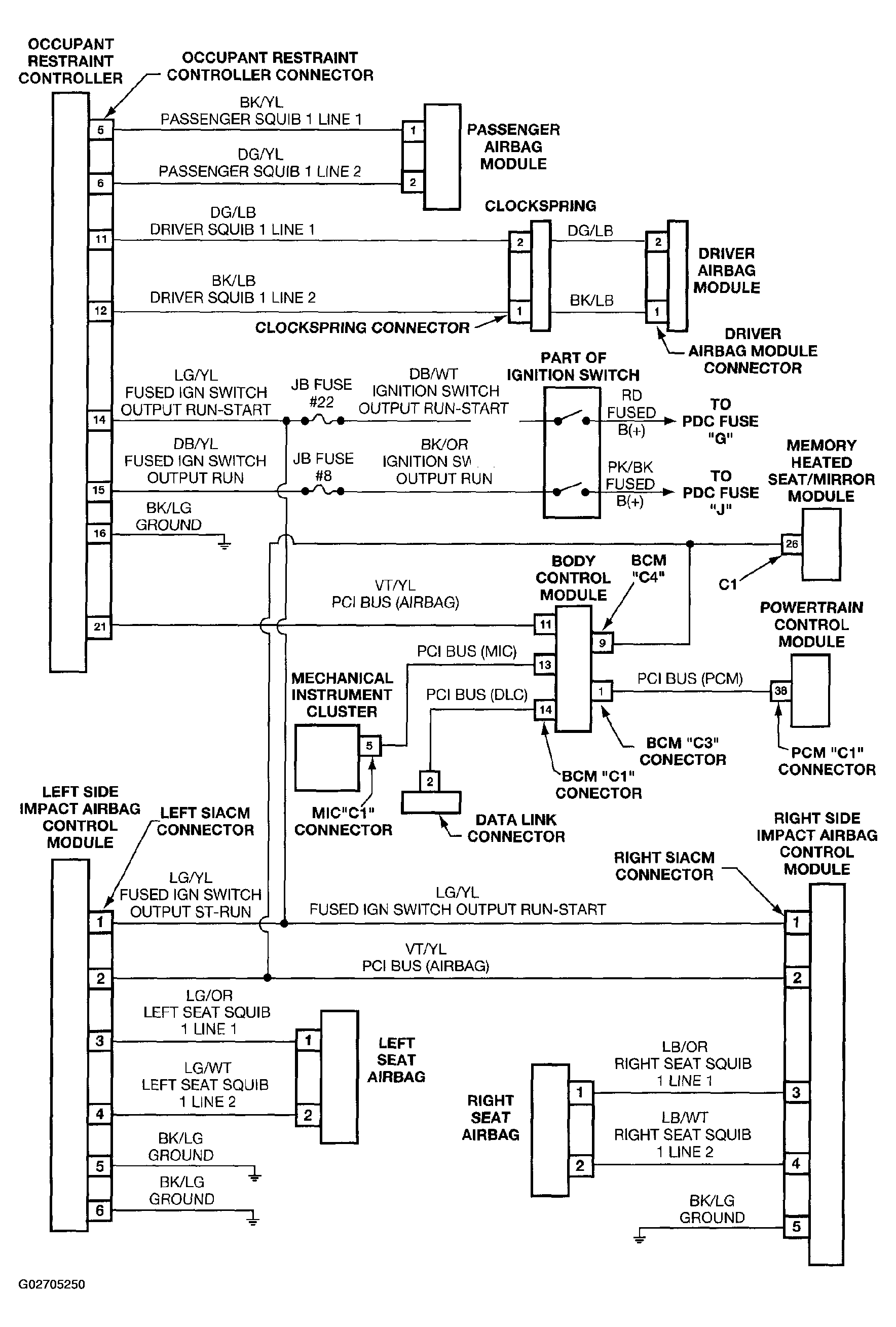

Fig 1: Schematic Diagrams - Airbag Systems
G02705250Courtesy of DAIMLERCHRYSLER CORP.
