Right Bank Down Oxygen Sensor 1/2 Connector End View

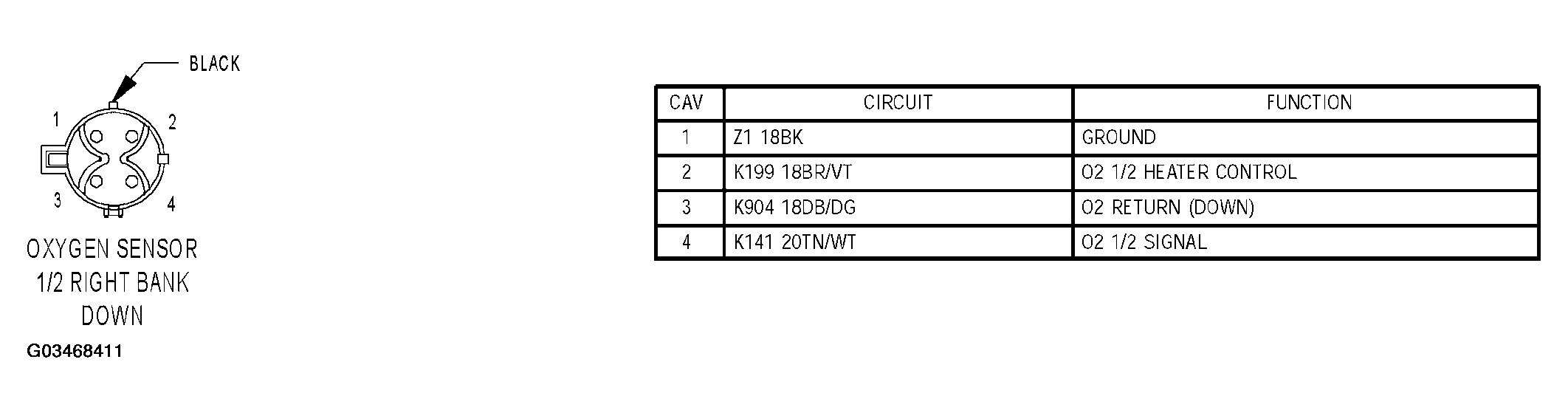

Fig 1: Right Bank Down Oxygen Sensor 1/2 Connector End View

G03468411

Courtesy of DAIMLERCHRYSLER CORP.
