Passenger Heated Seat Switch Connector End View

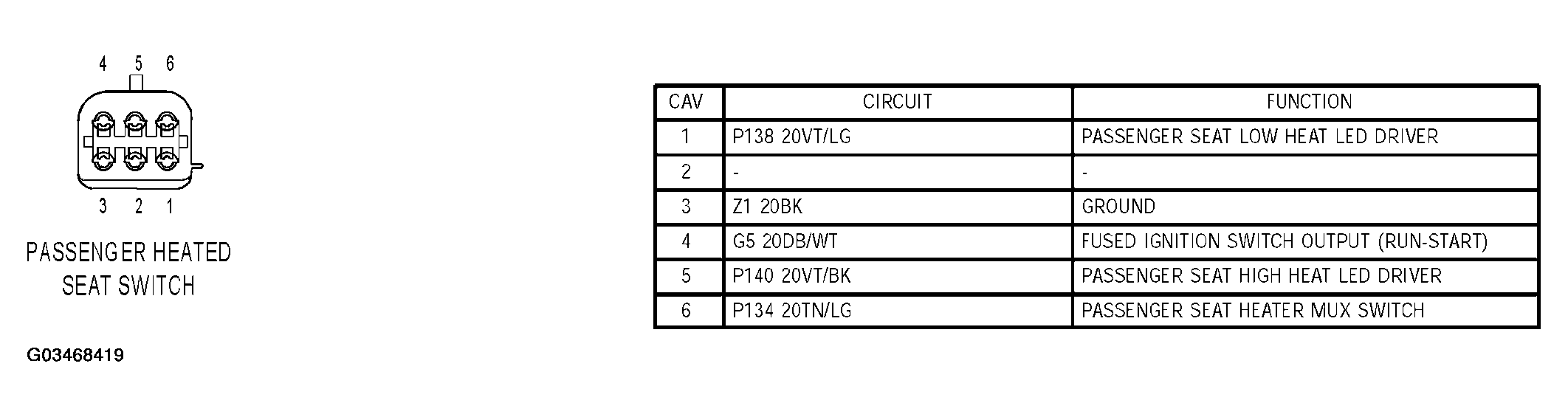

Fig 1: Passenger Heated Seat Switch Connector End View

G03468419

Courtesy of DAIMLERCHRYSLER CORP.
