Engine Side Inline Connector End View (C101)

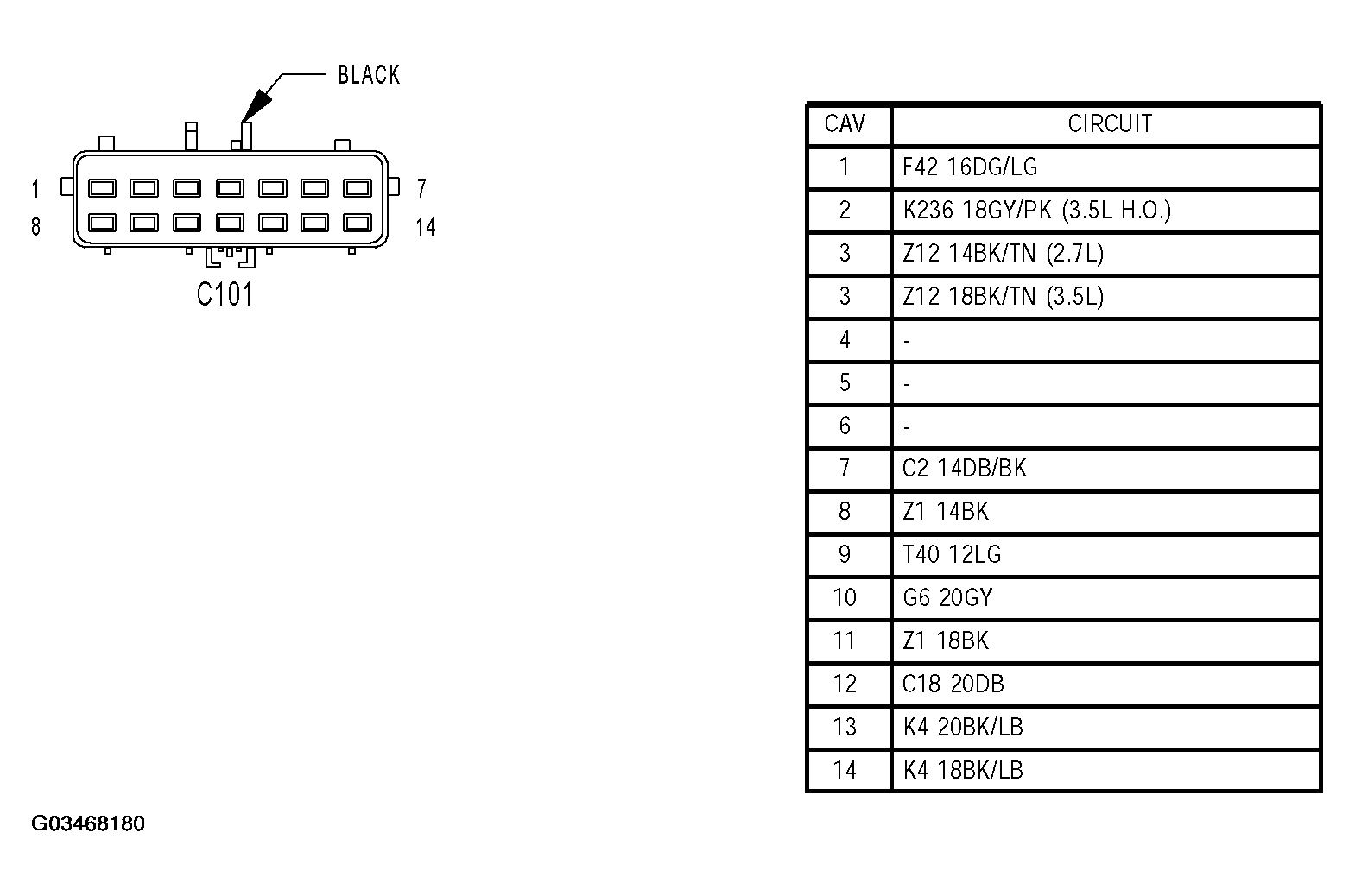

Fig 1: Engine Side Inline Connector End View (C101)

G03468180

Courtesy of DAIMLERCHRYSLER CORP.
