Speed Control Servo (Gas) Connector End View

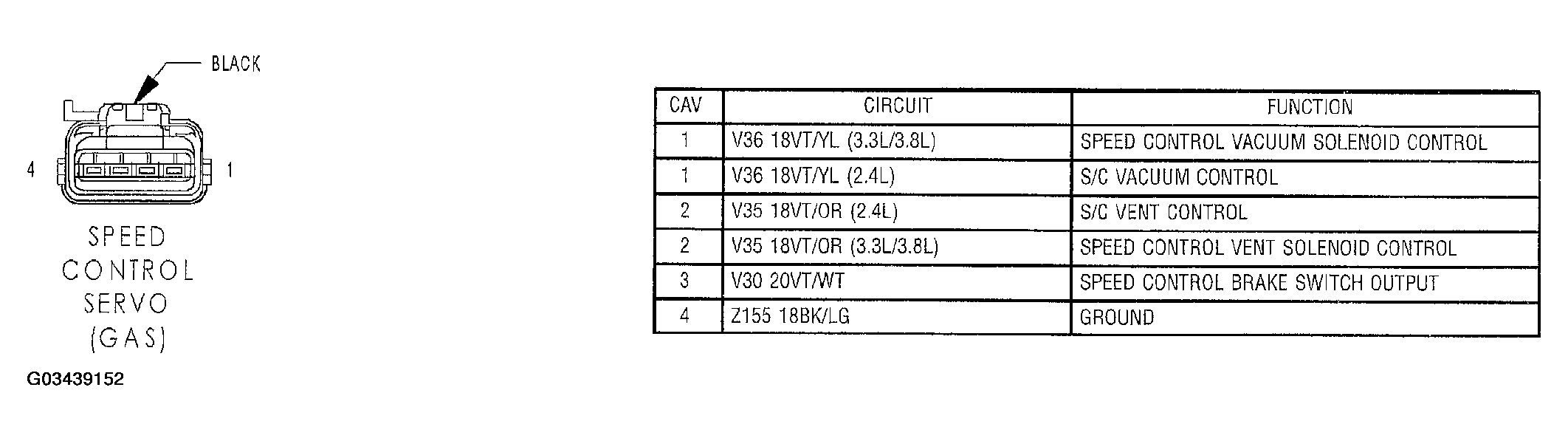

Fig 1: Speed Control Servo (Gas) Connector End View

G03439152

Courtesy of CHRYSLER GROUP, LLC
