Recirculation Door Actuator (Automatic Temperature Control) Connector End View

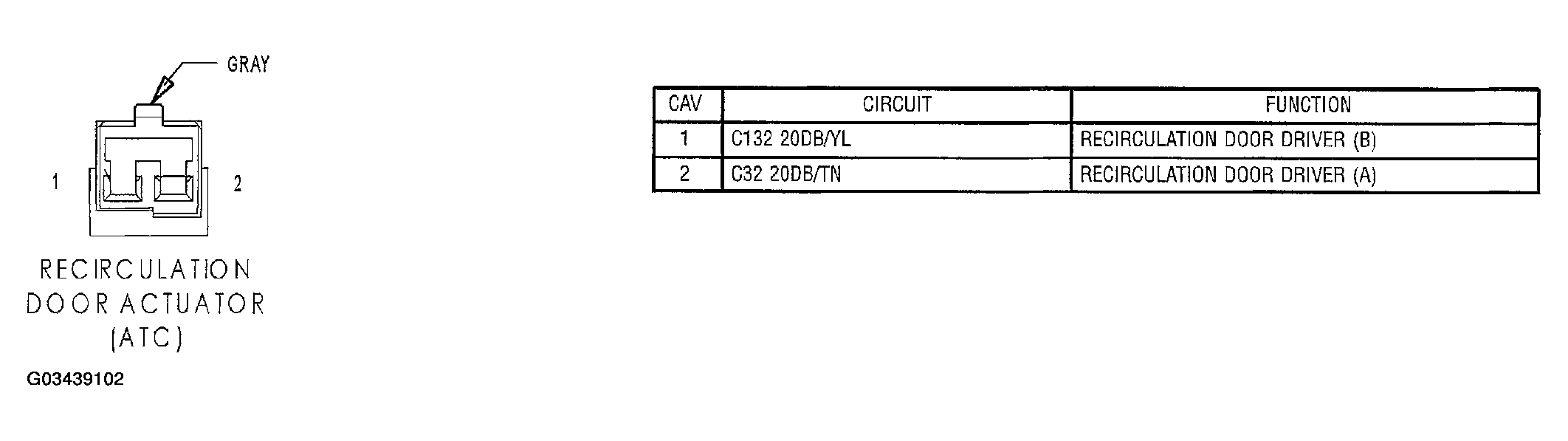

Fig 1: Recirculation Door Actuator (Automatic Temperature Control) Connector End View

G03439102

Courtesy of CHRYSLER GROUP, LLC
