Rear Auto Temp Control Switch 3 Zone Connector End View

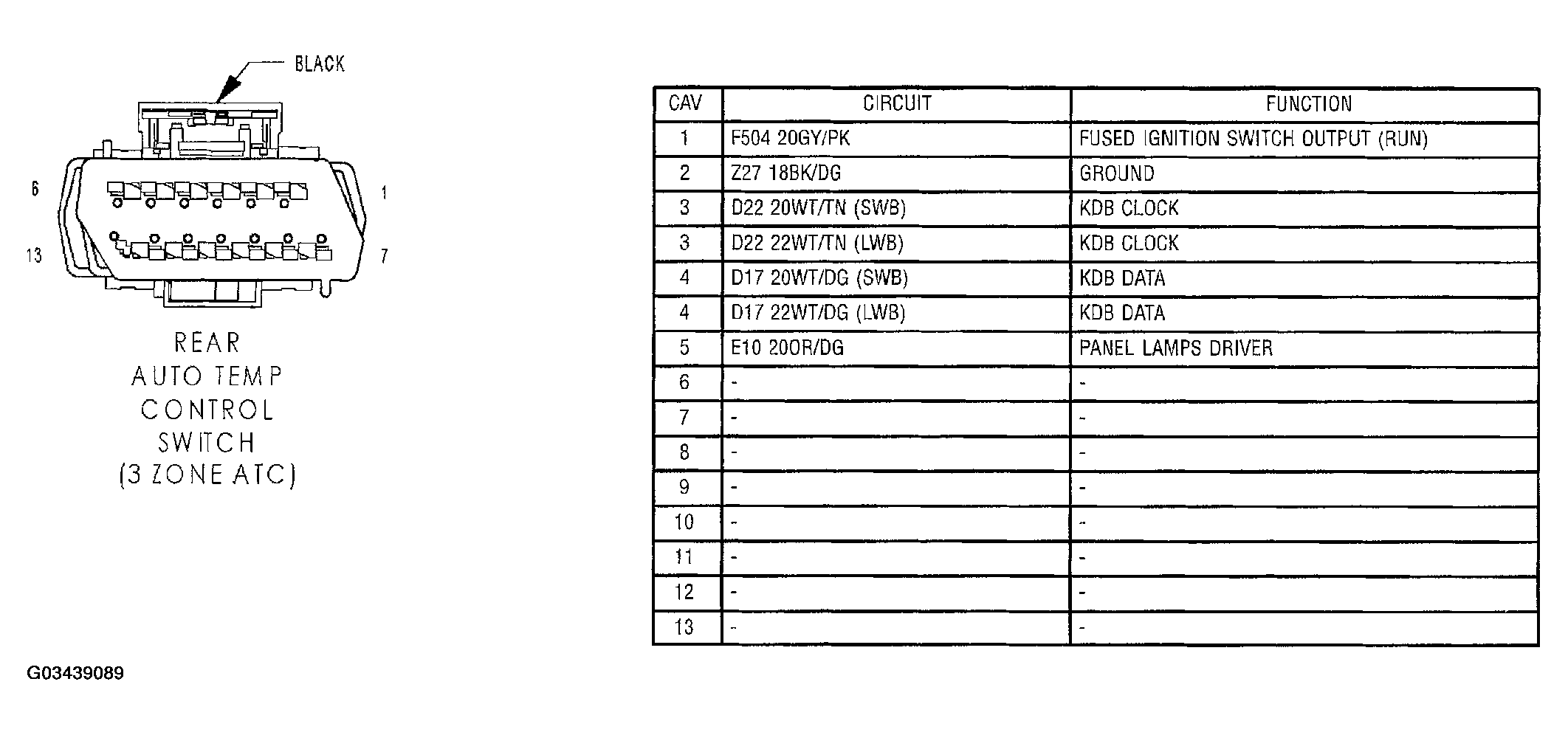

Fig 1: Rear Auto Temp Control Switch 3 Zone Connector End View

G03439089

Courtesy of CHRYSLER GROUP, LLC
