Instrument Panel Switch Bank Connector End View

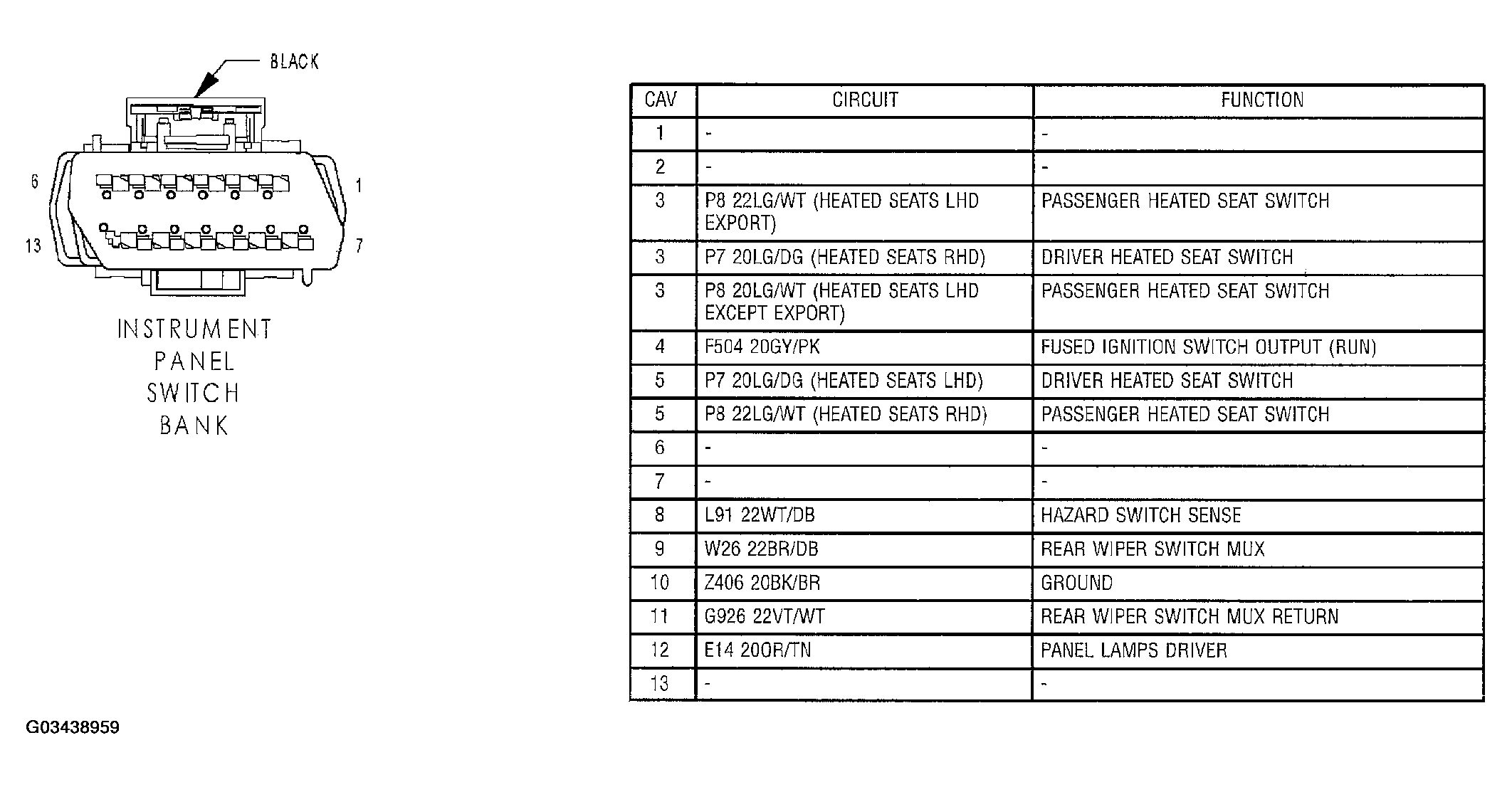

Fig 1: Instrument Panel Switch Bank Connector End View

G03438959

Courtesy of CHRYSLER GROUP, LLC
