Hands Free Module C1 Connector End View - 22 Way

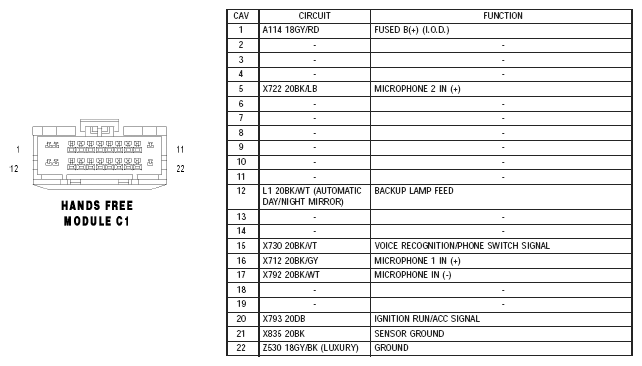

Fig 1: Hands Free Module C1 Connector End View - 22 Way

G04763311

Courtesy of CHRYSLER GROUP, LLC
