Brake Lamp Switch Connector End View

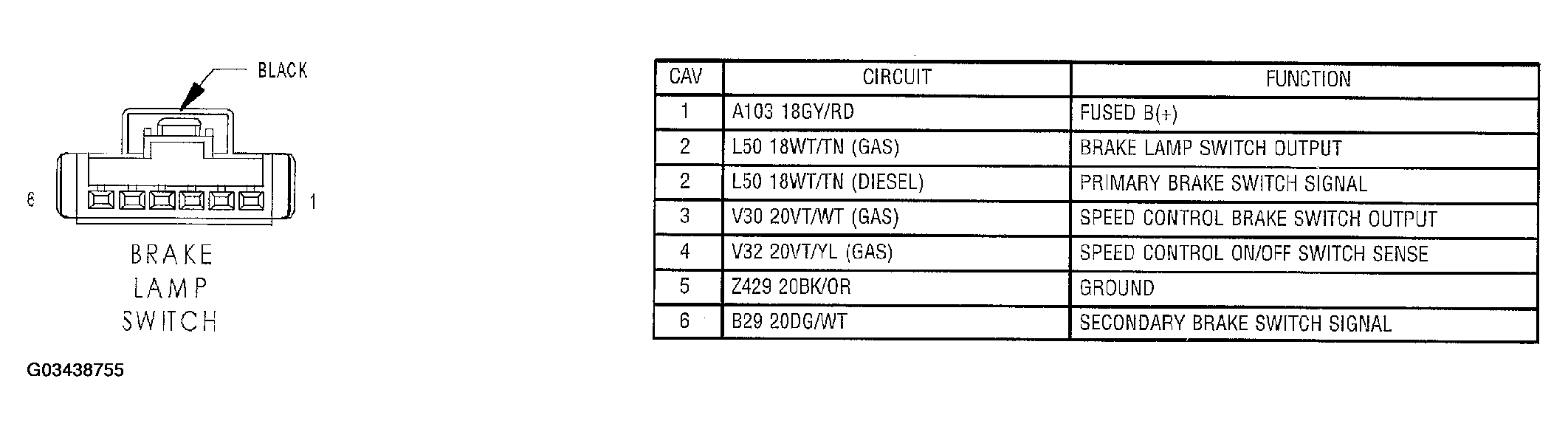

Fig 1: Brake Lamp Switch Connector End View

G03438755

Courtesy of CHRYSLER GROUP, LLC
