Ambient Temperature Sensor (Except Base) Connector End View

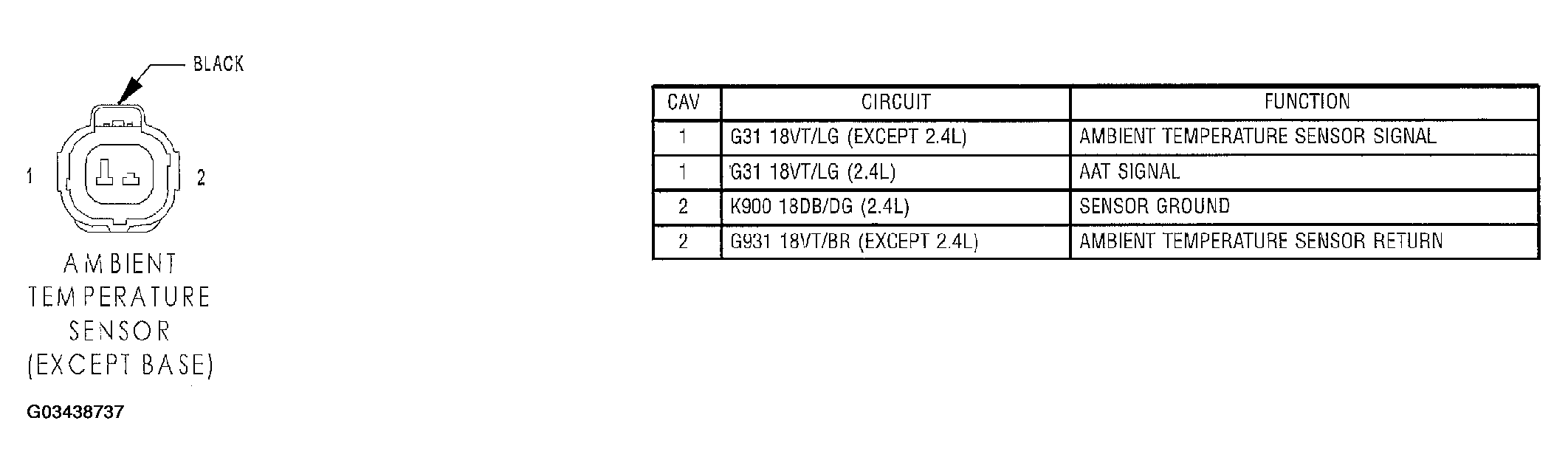

Fig 1: Ambient Temperature Sensor (Except Base) Connector End View

G03438737

Courtesy of CHRYSLER GROUP, LLC
