Airbag Control Module (ORC) (Base) - Yellow/Red 23-Way Connector End View

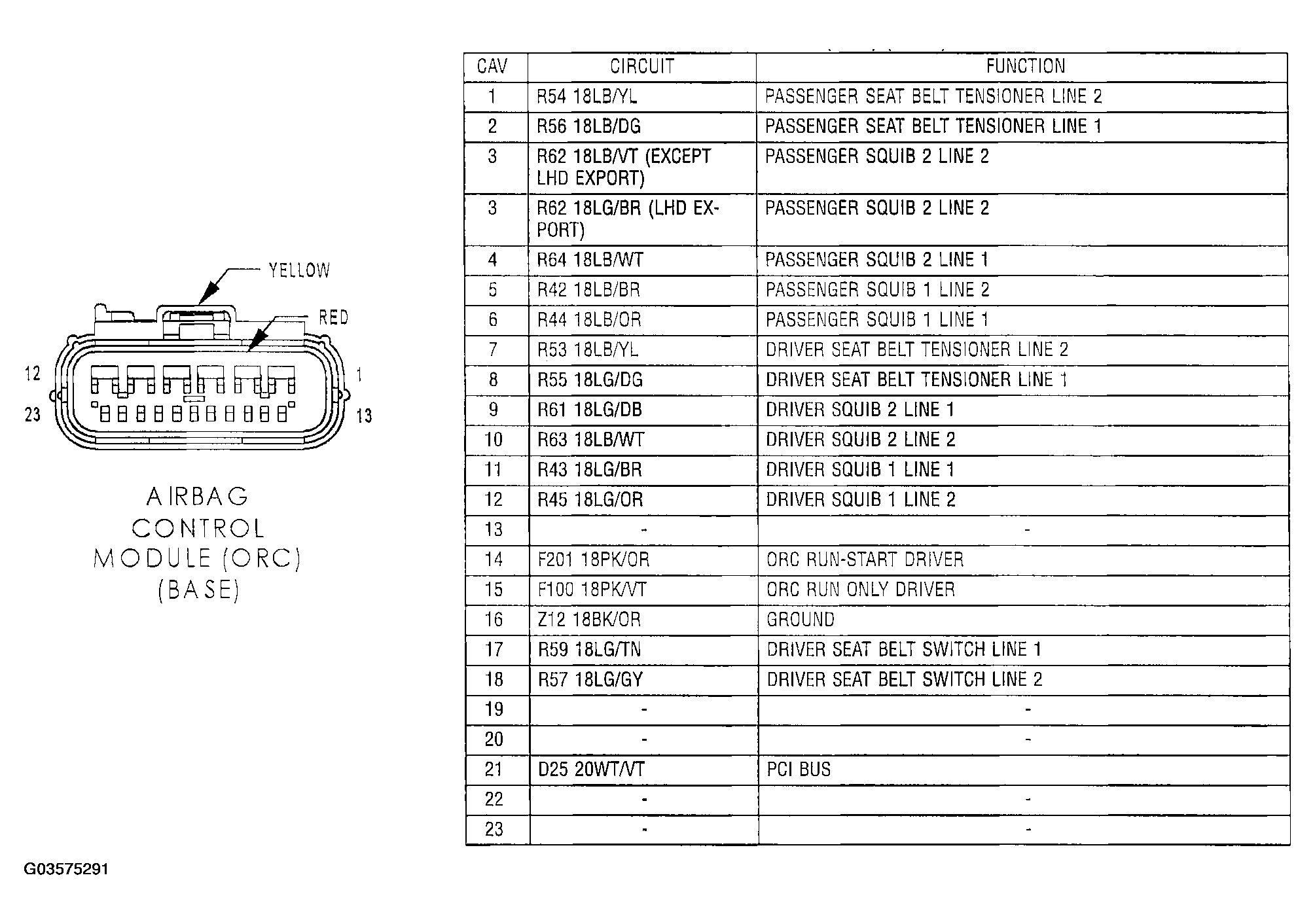

Fig 1: Airbag Control Module (ORC) (Base) - Yellow/Red 23-Way Connector End View

G03575291

Courtesy of CHRYSLER GROUP, LLC
