Fuel Tank: Installation

  1. To install, reverse removal procedure. Use proper procedure when installing fuel lines. See FUEL LINE DISCONNECT FITTINGS .
  2. Tighten fuel tank strap bolts to specification. See TORQUE SPECIFICATIONS . Turn ignition on and check for fuel leaks.

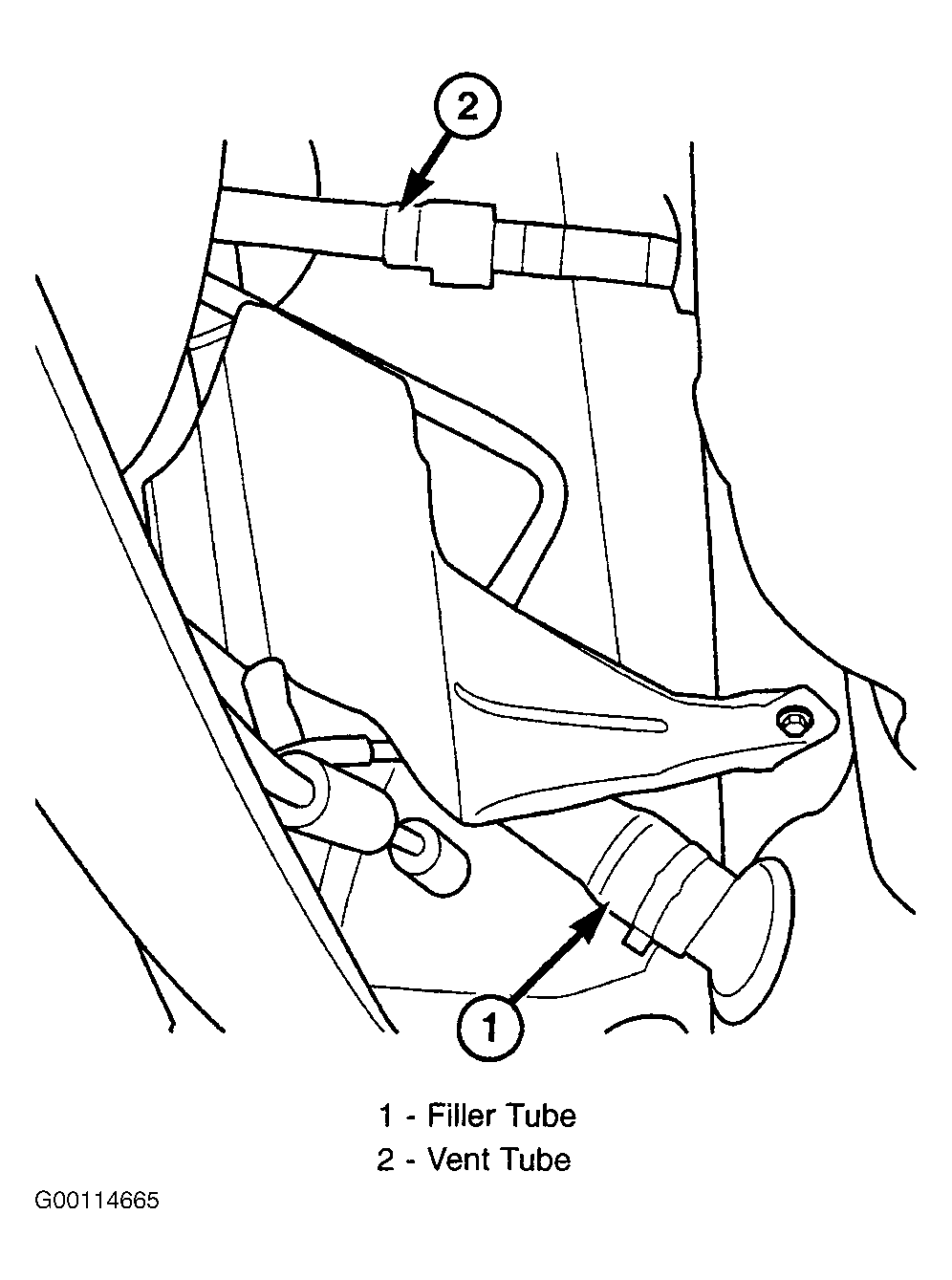

Fig 1: Locating Fuel Tank Filler Tube & Vent Tube
G00114665Courtesy of DAIMLERCHRYSLER CORPORATION
