Occupant Classification Module Connector End View

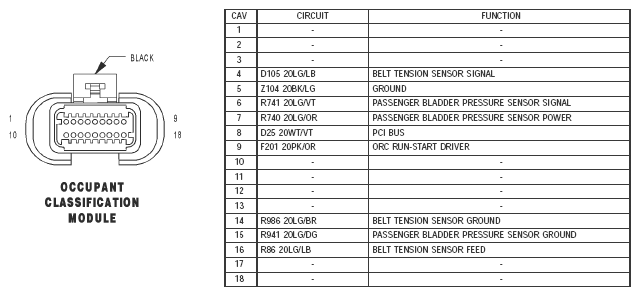

Fig 1: Occupant Classification Module Connector End View

G05552389

Courtesy of CHRYSLER GROUP, LLC
