Left Side Impact Airbag Control Module Connector End View

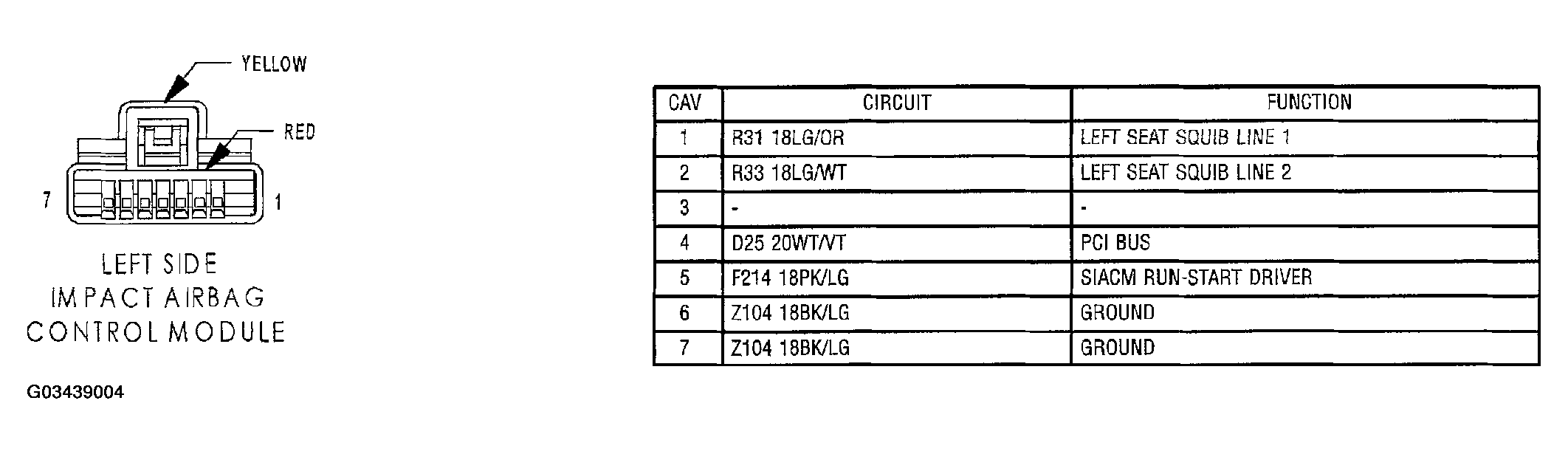

Fig 1: Left Side Impact Airbag Control Module Connector End View

G03439004

Courtesy of CHRYSLER GROUP, LLC
