Integrated Power Module Connector End View (C3)

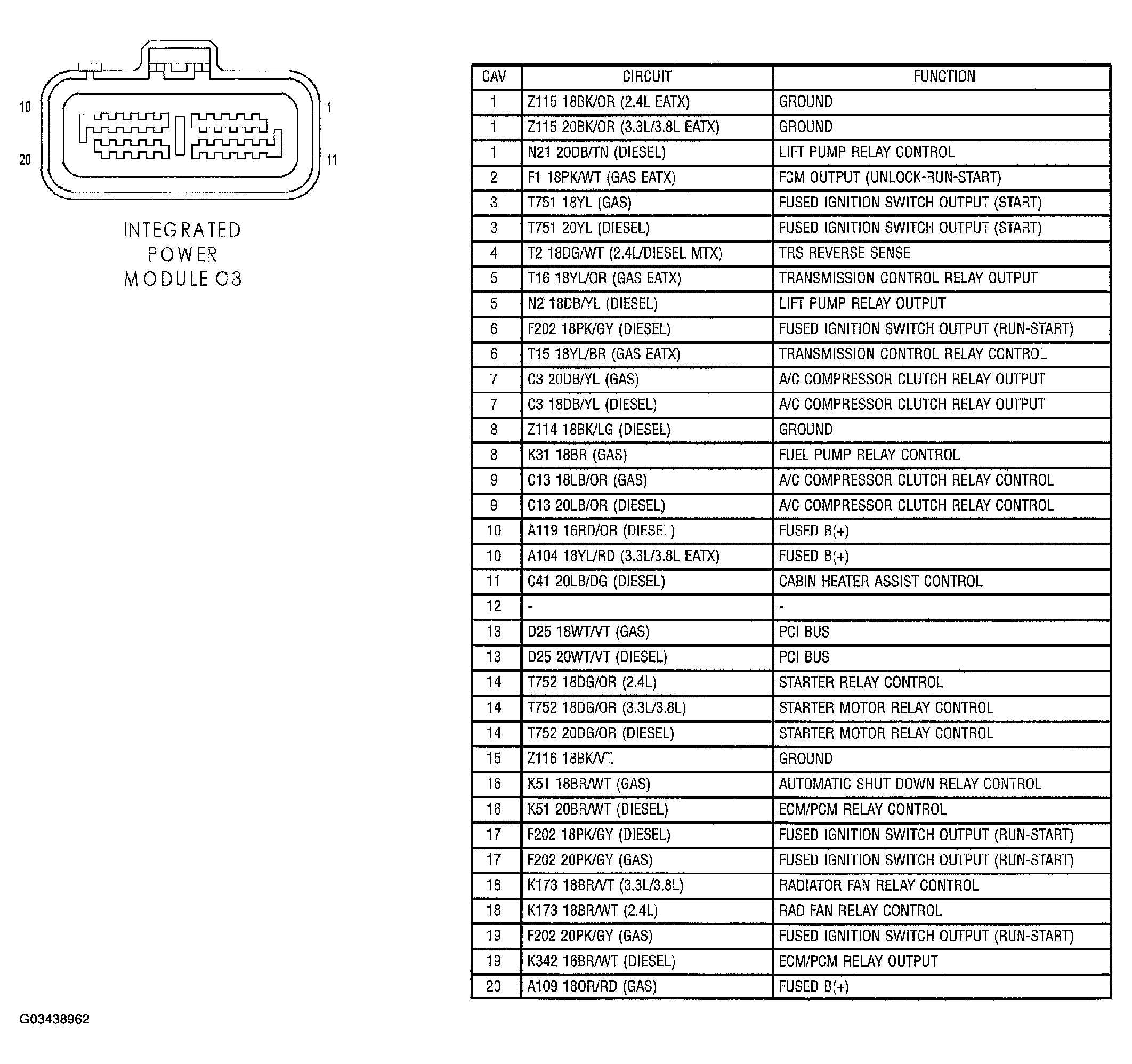

Fig 1: Integrated Power Module Connector End View (C3)

G03438962

Courtesy of CHRYSLER GROUP, LLC
