Diagnosis And Testing - Rear Driveline Module Operation

Driveline module operation requires relatively straight-forward diagnosis. Refer to the following chart:

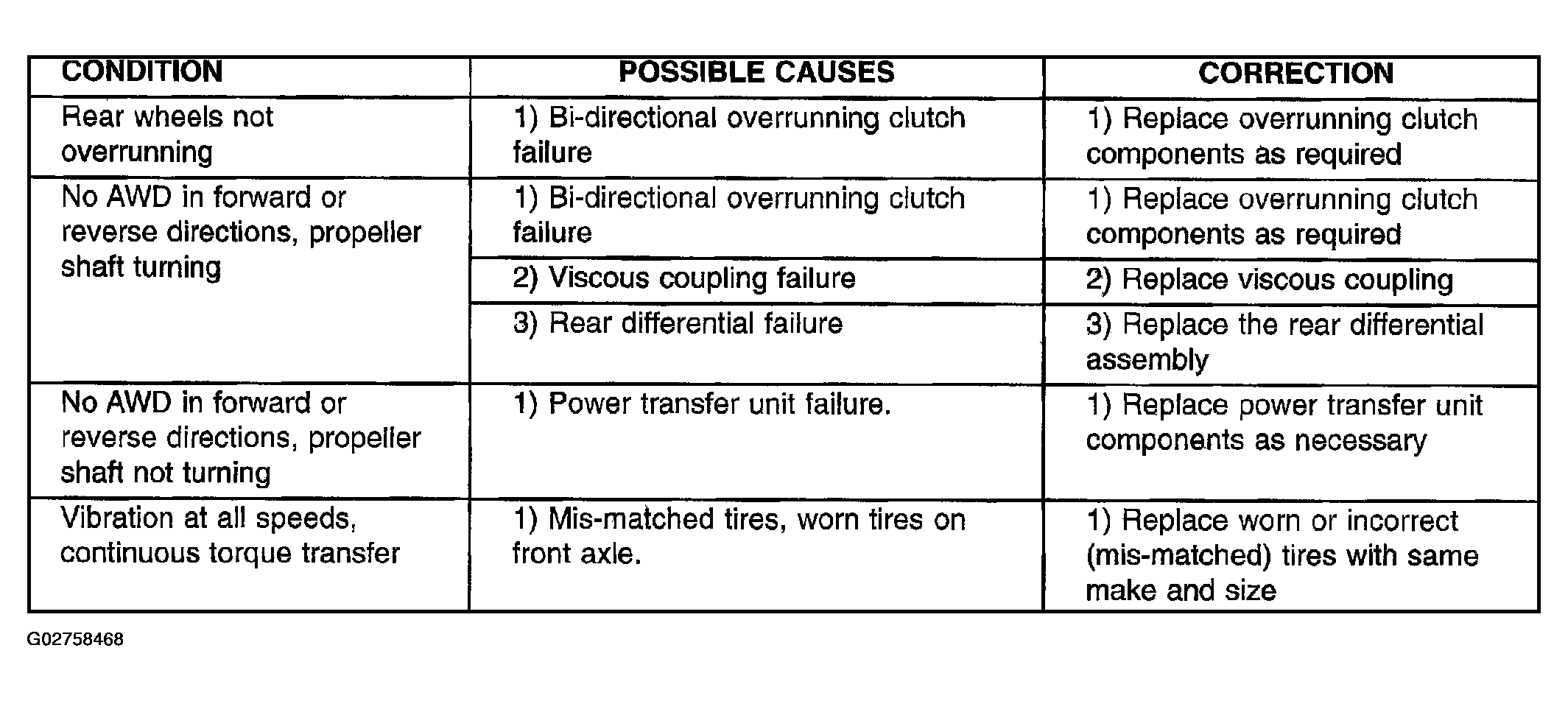

Fig 1: Driveline Module Diagnosis Chart

Courtesy of DAIMLERCHRYSLER CORP.
