Diagnostic Trouble Code Chart

Follow the inspection chart that is appropriate for the diagnostic trouble code.

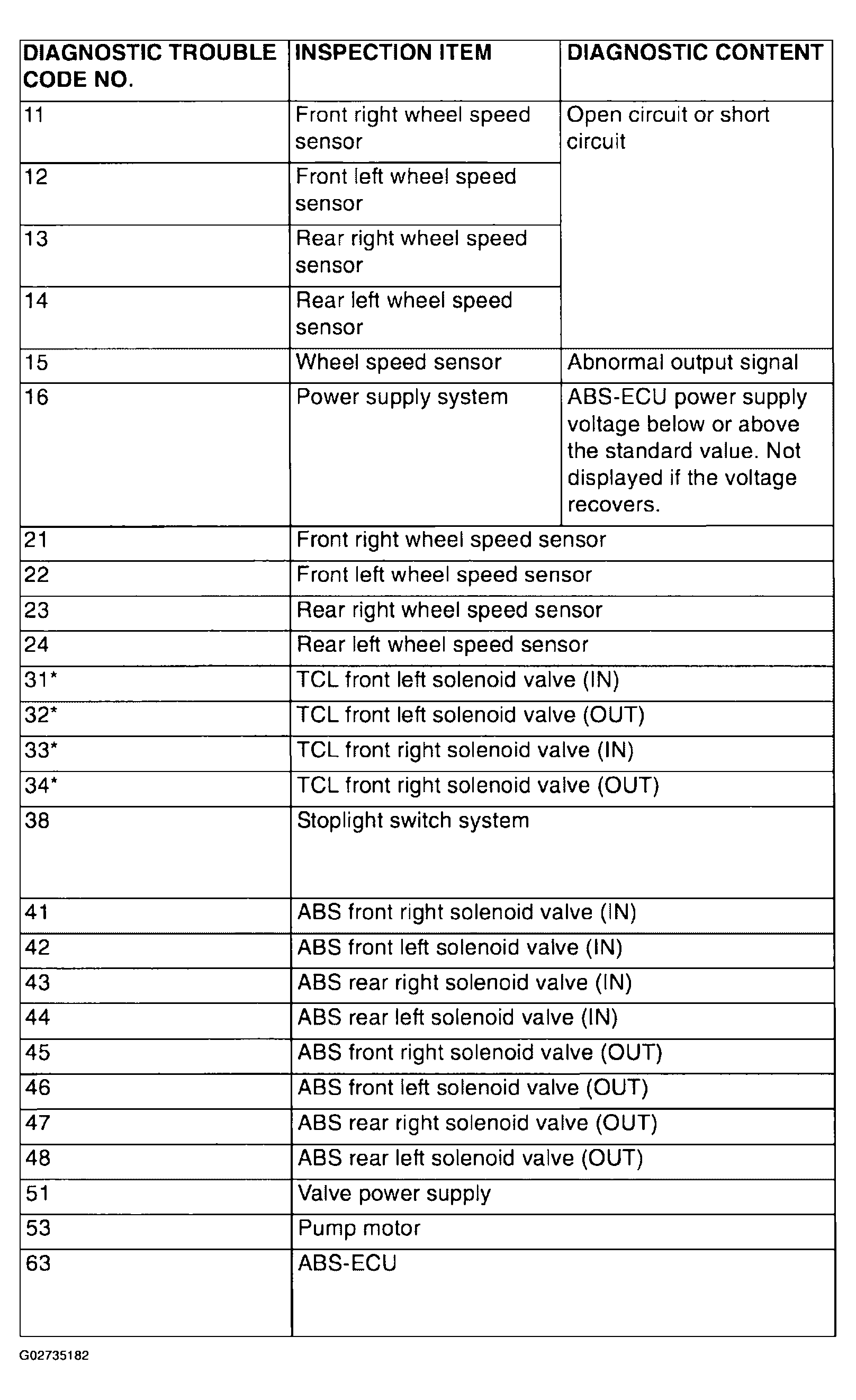

Fig 1: Diagnostic Trouble Code Chart
G02735182Courtesy of DAIMLERCHRYSLER CORP.
DTC INDEX

DTC Description
DTC 31, 32, 33, 34  TCL Solenoid Valve Inside Hydraulic Unit (Open Circuit Or Short Circuit)
DTC 41, 42, 43, 44, 45, 46, 47, 48  ABS Solenoid Valve inside Hydraulic Unit (Open Circuit Or Short Circuit)
DTC 51  Valve Power Supply
DTC 53  Pump Motor
