Actuator Test Specifications

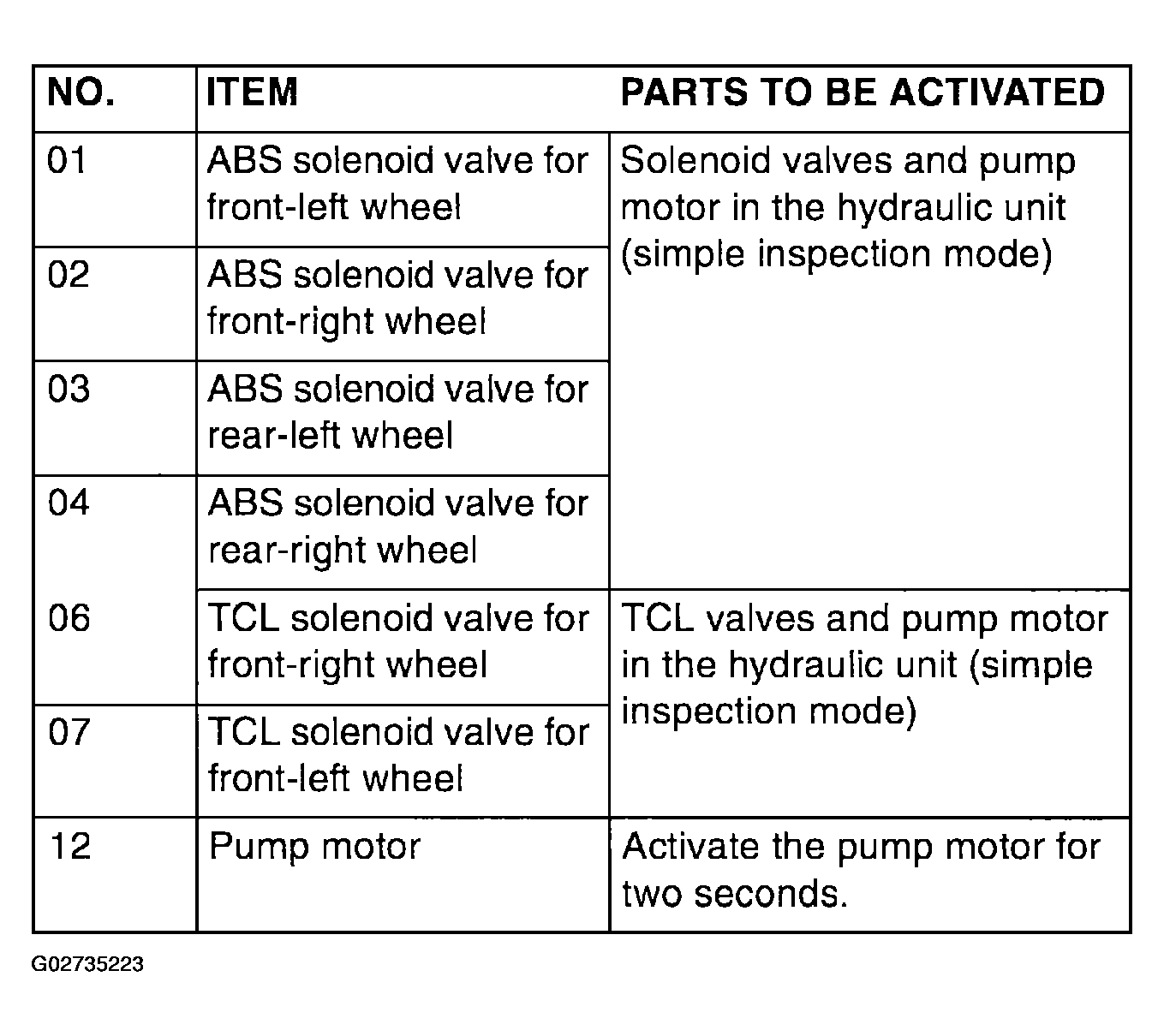

Fig 1: Actuator Test Specifications Chart

G02735223

Courtesy of DAIMLERCHRYSLER CORP.

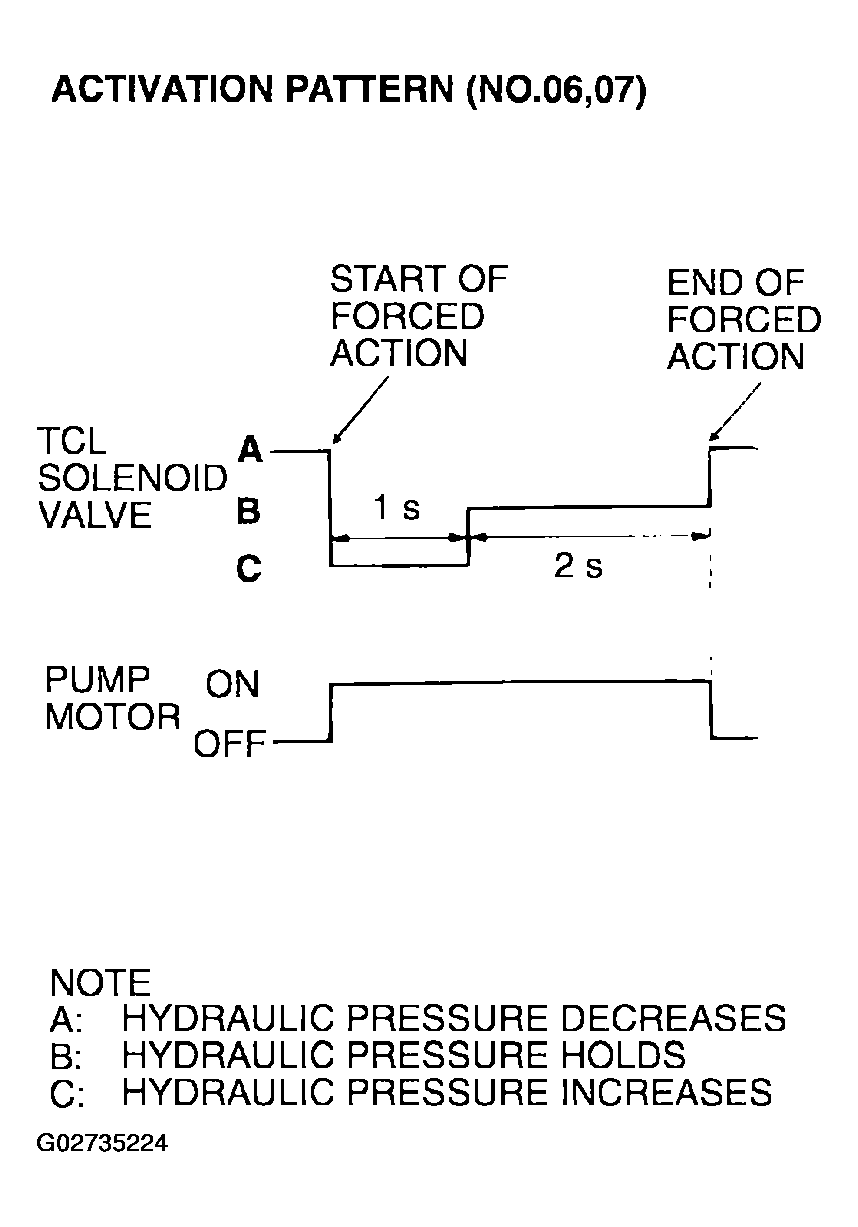

Fig 2: Identifying Activation Pattern (No. 06 & 07)

G02735224

Courtesy of DAIMLERCHRYSLER CORP.
