Wiper On/Off Relay Output Shorted Low

For testing procedures, see Fig 1 and Fig 2 .

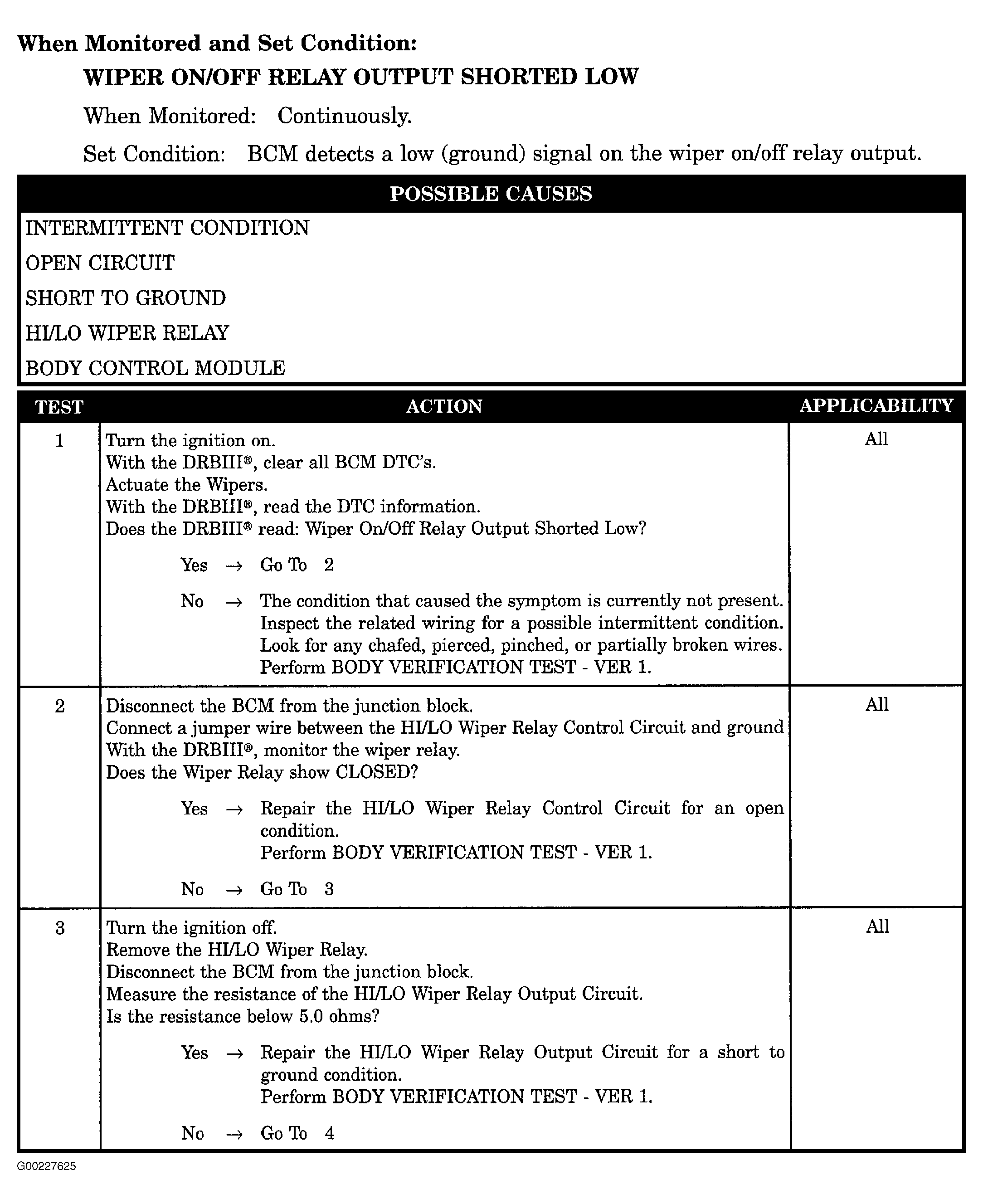

Fig 1: Wiper On/Off Relay Output Shorted Low - Steps 1-3 (1 Of 2)
G00227625Courtesy of CHRYSLER CORP.

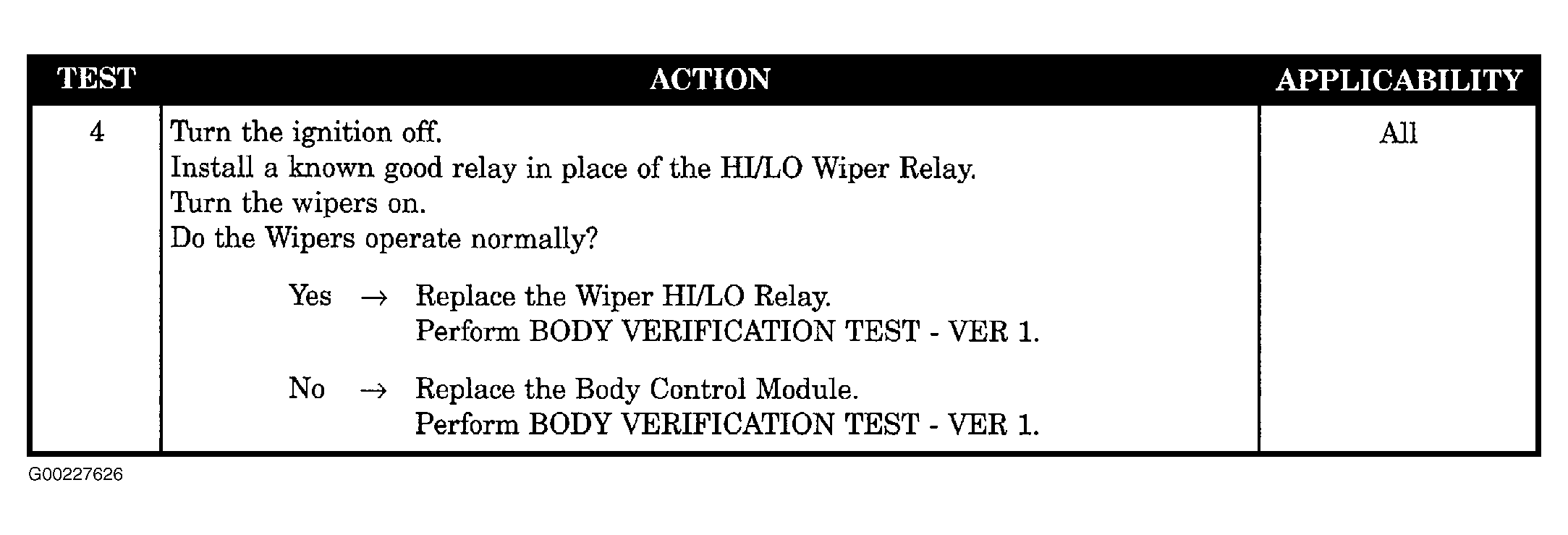

Fig 2: Wiper On/Off Relay Output Shorted Low - Step 4 (2 Of 2)
G00227626Courtesy of CHRYSLER CORP.
