Door Lock Switch Failure

For testing procedures, see Fig 1 and Fig 2 .

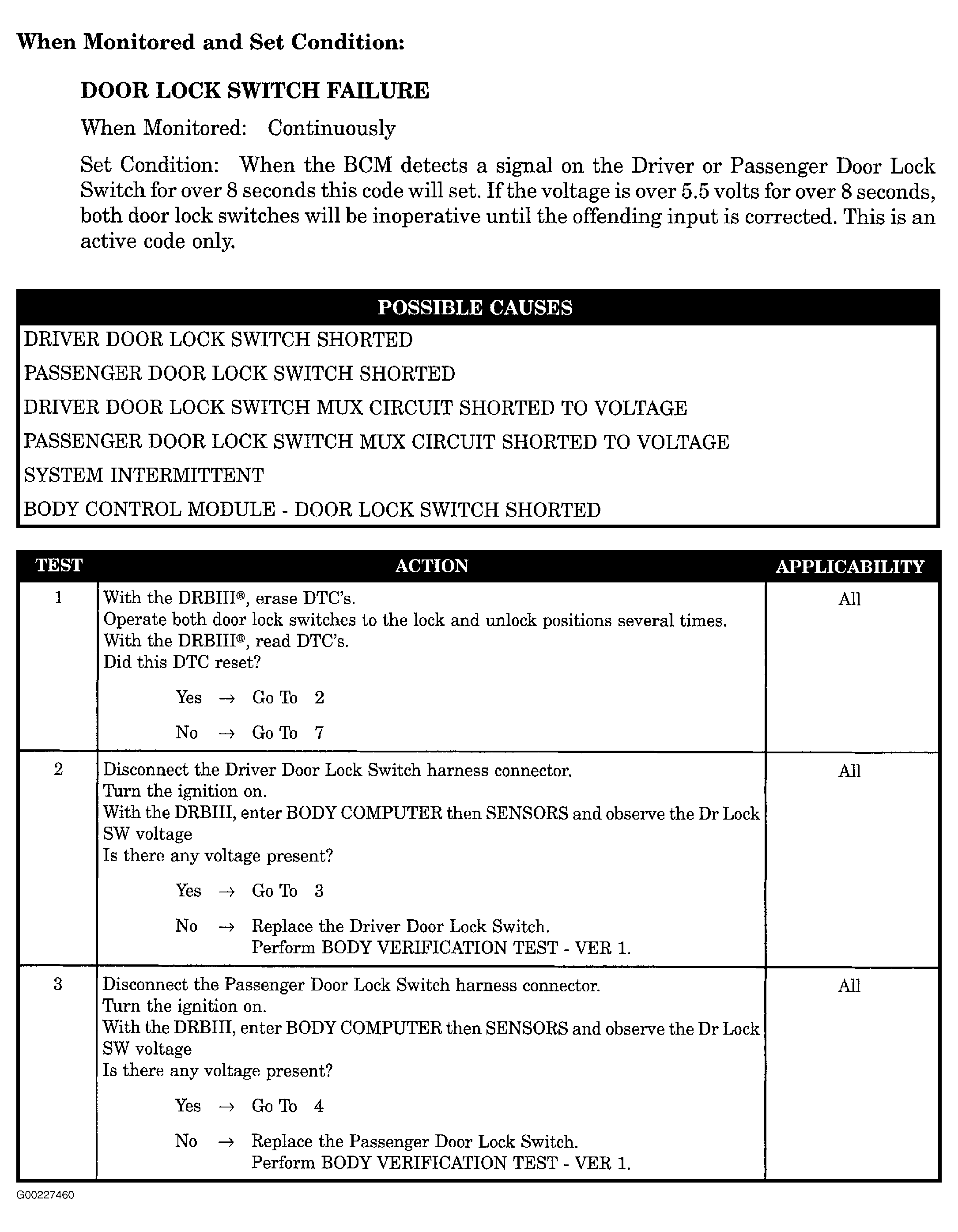

Fig 1: Door Lock Switch Failure - Steps 1-3 (1 Of 2)
G00227460Courtesy of CHRYSLER CORP.

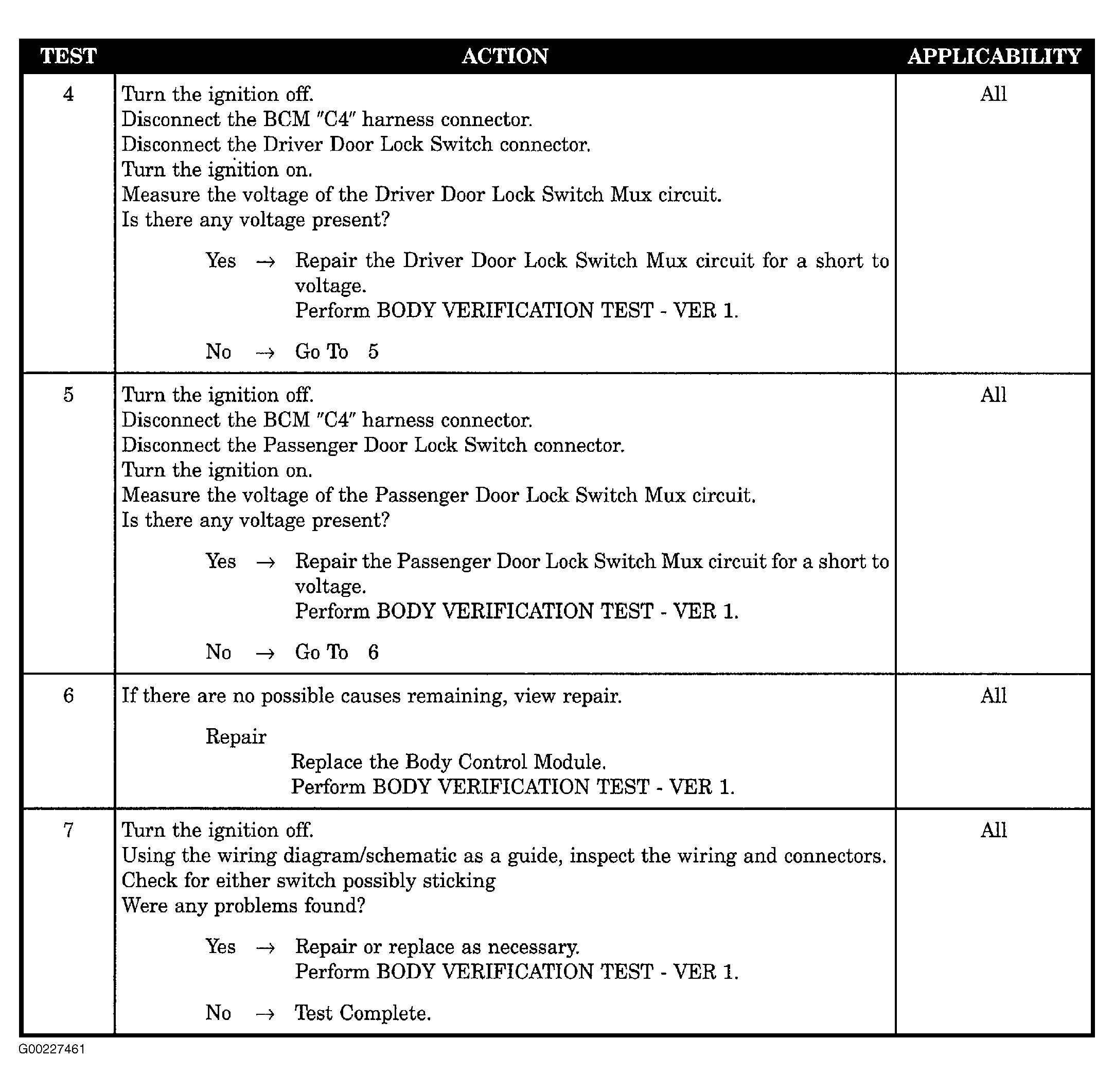

Fig 2: Door Lock Switch Failure - Steps 4-7 (2 Of 2)
G00227461Courtesy of CHRYSLER CORP.
