Recirc Door Output Shorted To Ground

For testing procedures, see Fig 1 and Fig 2 .

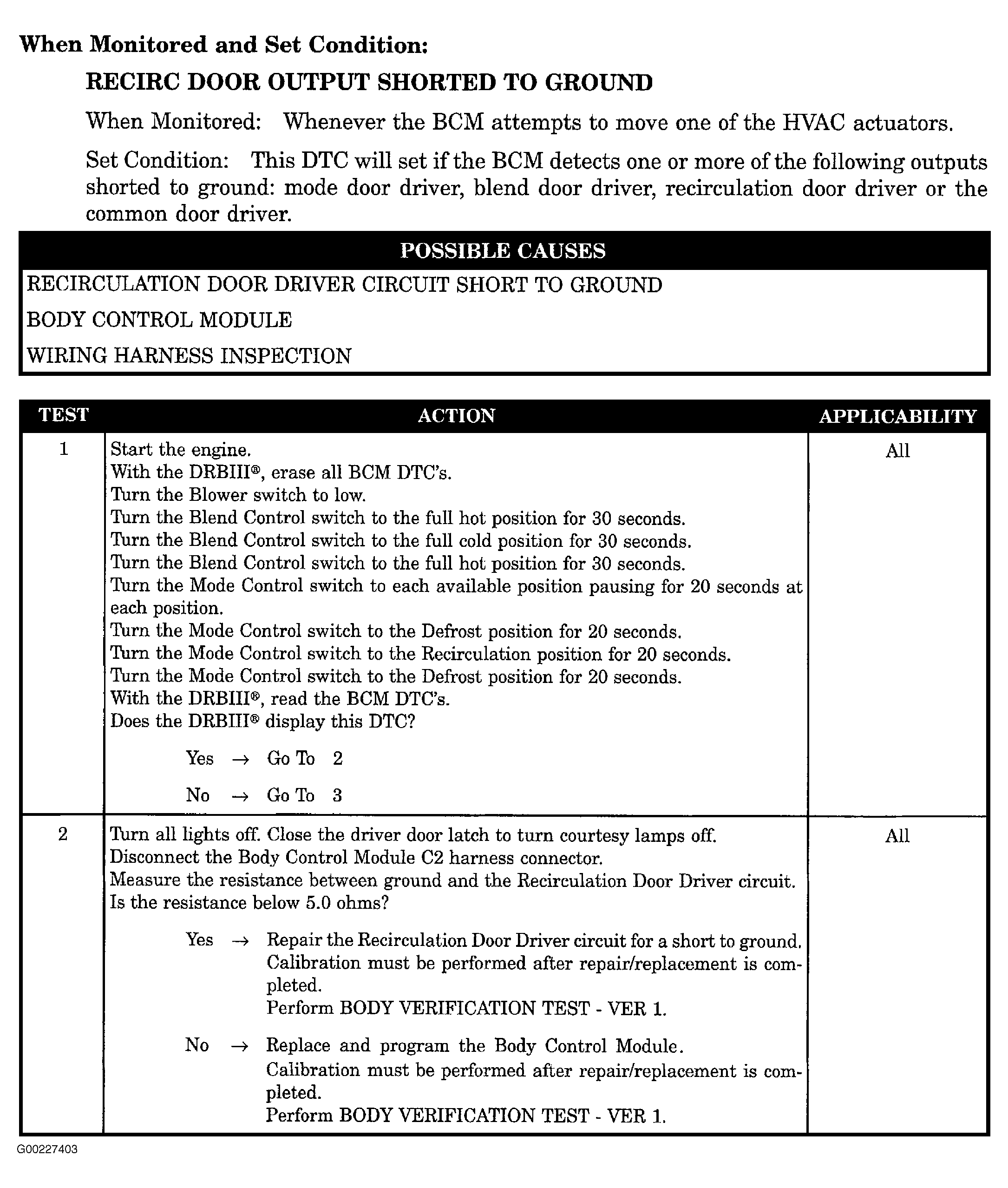

Fig 1: Recirc Door Output Shorted To Ground - Steps 1 & 2 (1 Of 2)
G00227403Courtesy of CHRYSLER CORP.

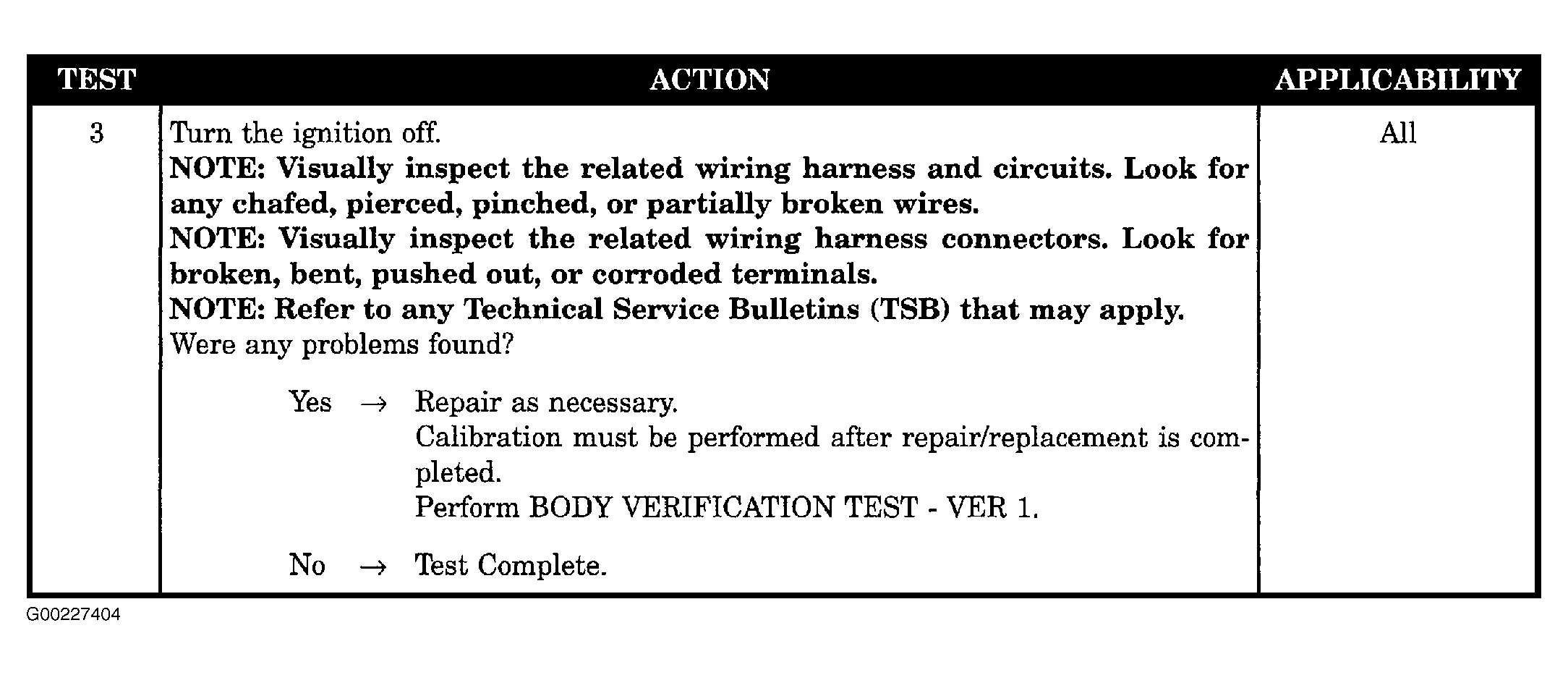

Fig 2: Recirc Door Output Shorted To Ground - Step 3 (2 Of 2)
G00227404Courtesy of CHRYSLER CORP.
