Recirc Door Output Shorted To Battery

For testing procedures, see Fig 1 -Fig 3 .

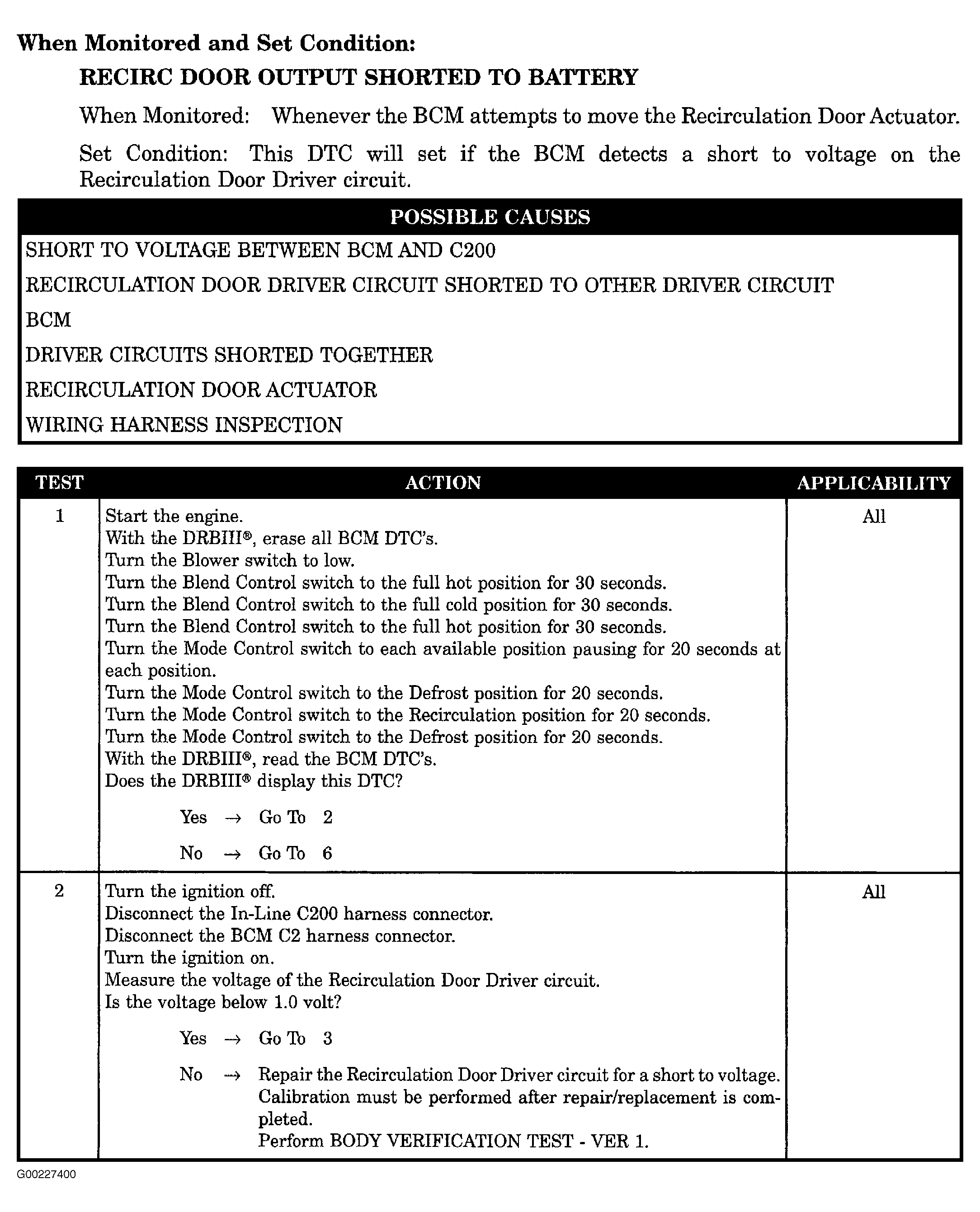

Fig 1: Recirc Door Output Shorted To Battery - Steps 1 & 2 (1 Of 3)
G00227400Courtesy of CHRYSLER CORP.

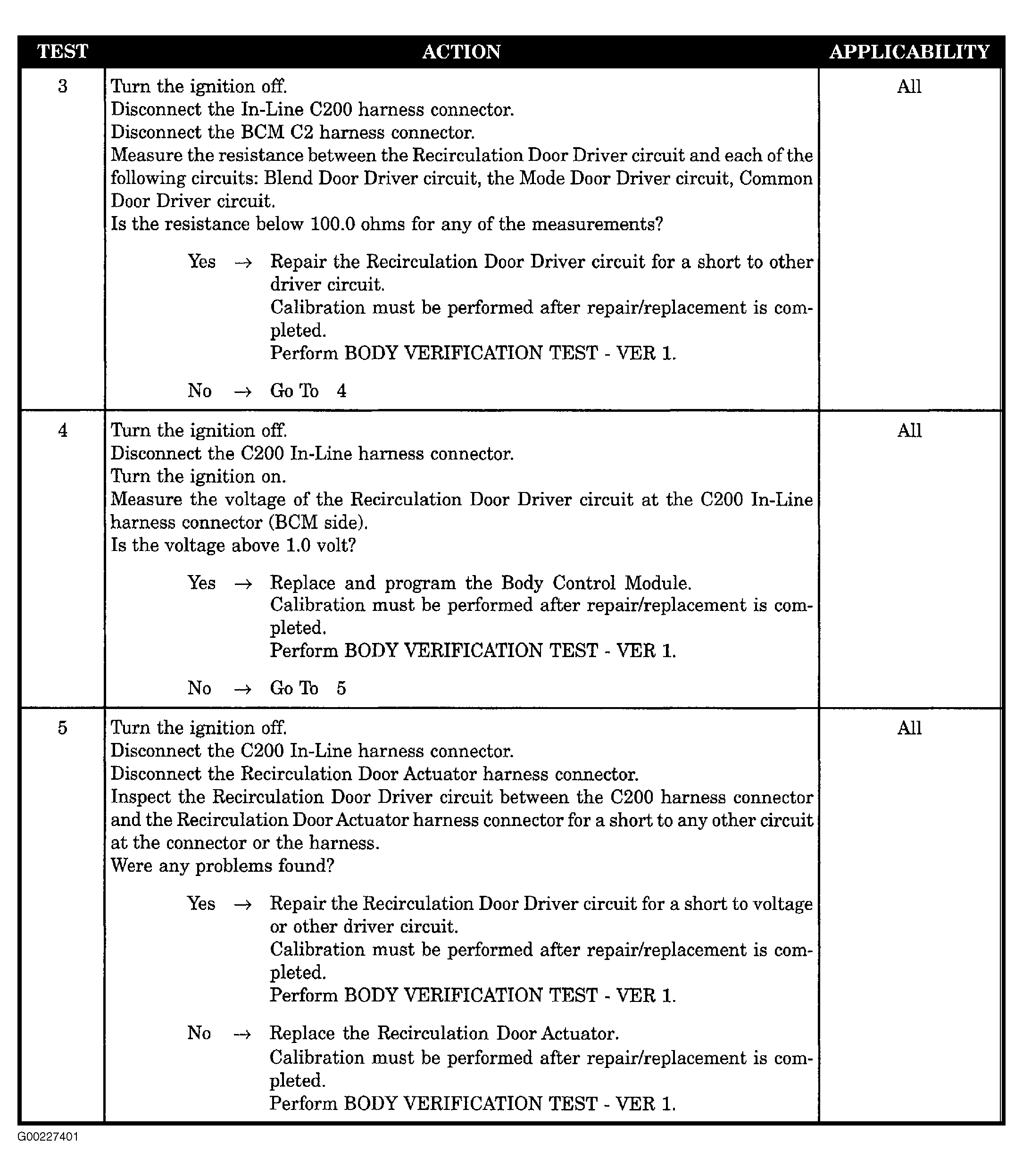

Fig 2: Recirc Door Output Shorted To Battery - Steps 3-5 (2 Of 3)
G00227401Courtesy of CHRYSLER CORP.

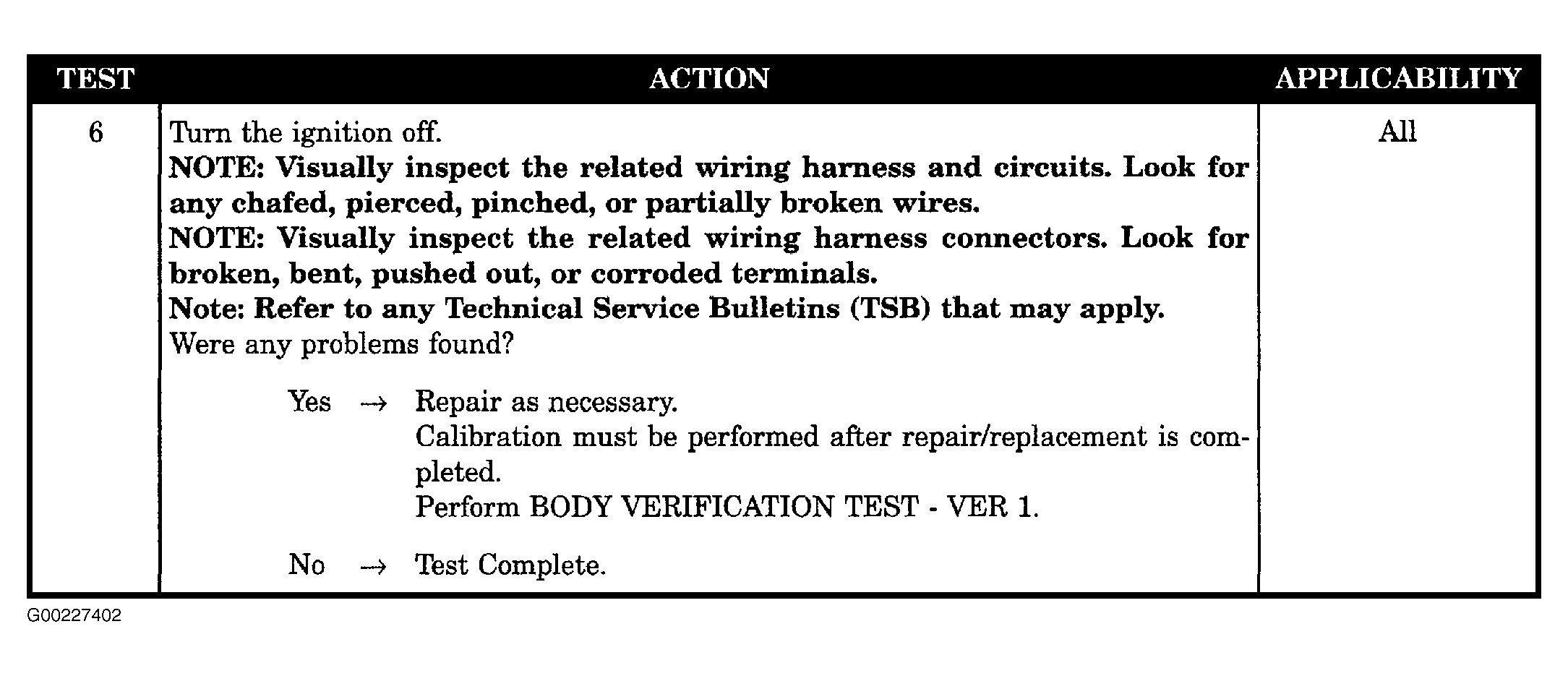

Fig 3: Recirc Door Output Shorted To Battery - Step 6 (3 Of 3)
G00227402Courtesy of CHRYSLER CORP.
