Mode Door Output Shorted To Battery

For testing procedures, see Fig 1 -Fig 3 .

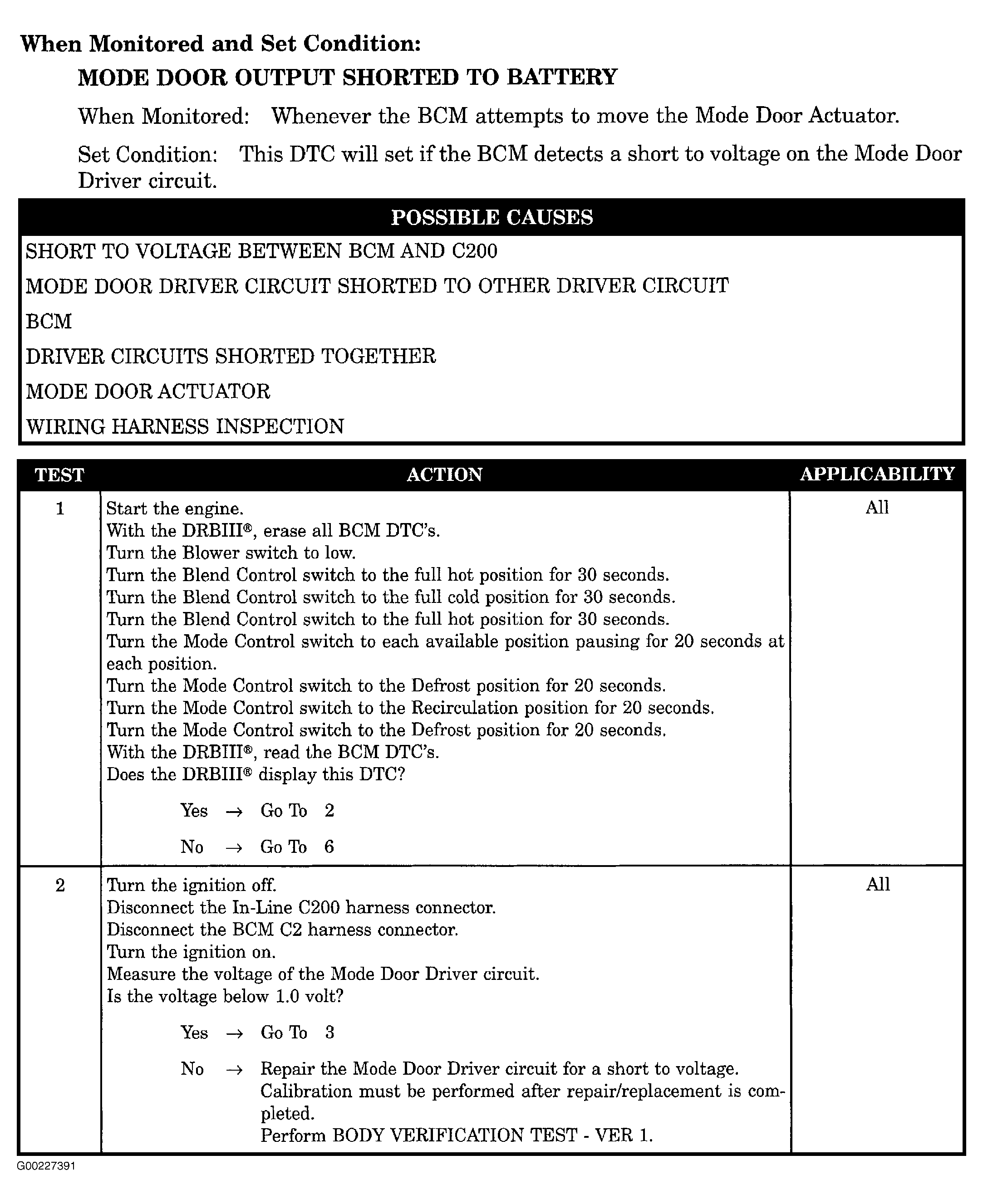

Fig 1: Mode Door Output Shorted To Battery - Steps 1 & 2 (1 Of 3)
G00227391Courtesy of CHRYSLER CORP.

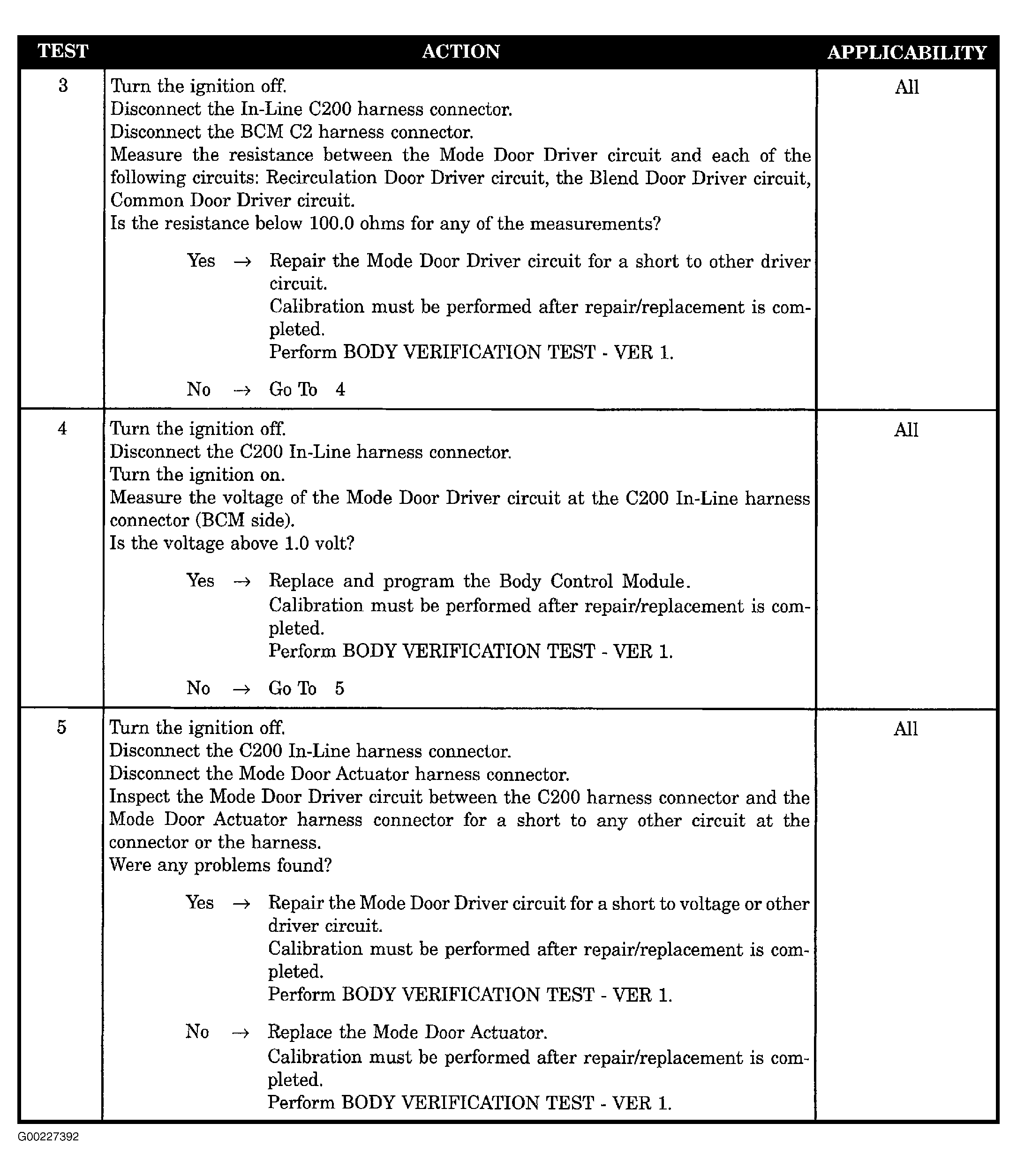

Fig 2: Mode Door Output Shorted To Battery - Steps 3-5 (1 Of 3)
G00227392Courtesy of CHRYSLER CORP.

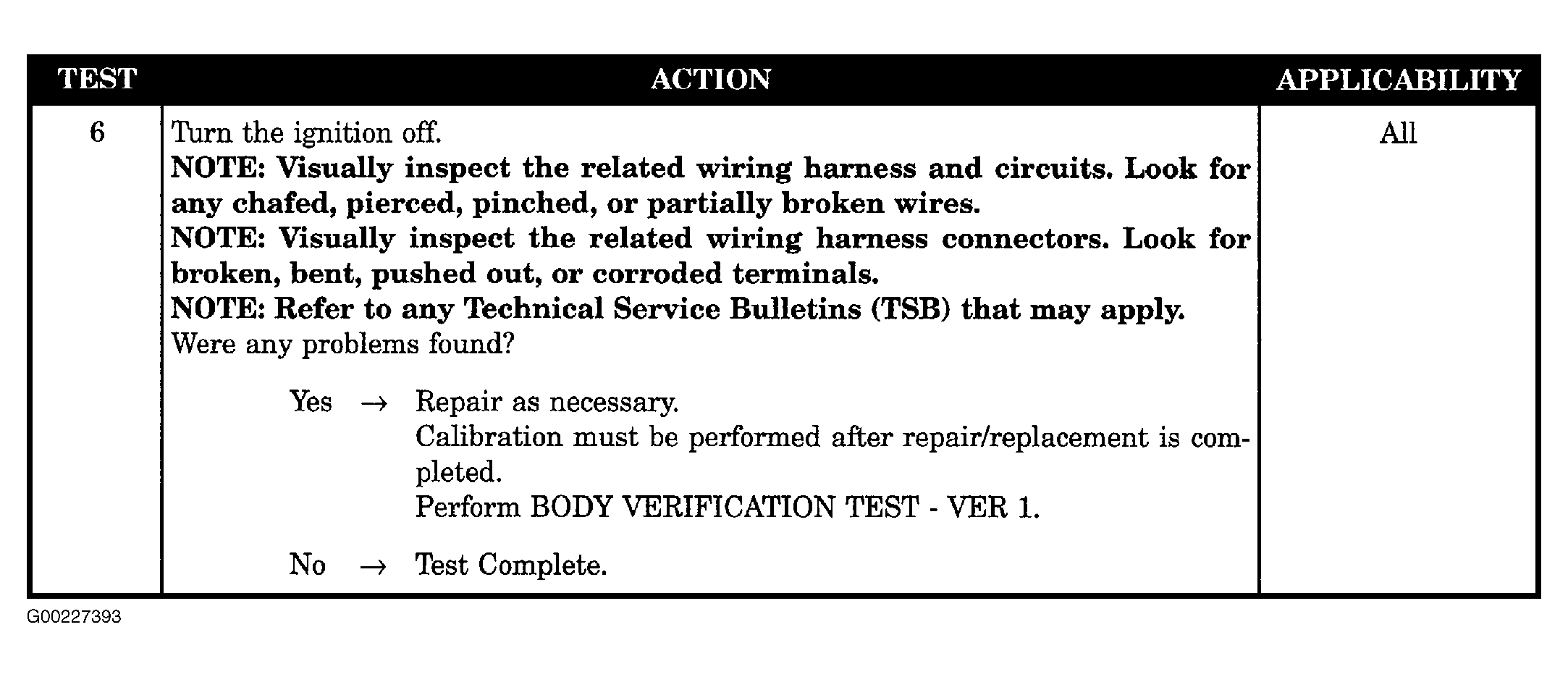

Fig 3: Mode Door Output Shorted To Battery - Step 6 (3 Of 3)
G00227393Courtesy of CHRYSLER CORP.
