Evaporator Sensor Failure

For testing procedures, see Fig 1 -Fig 4 .

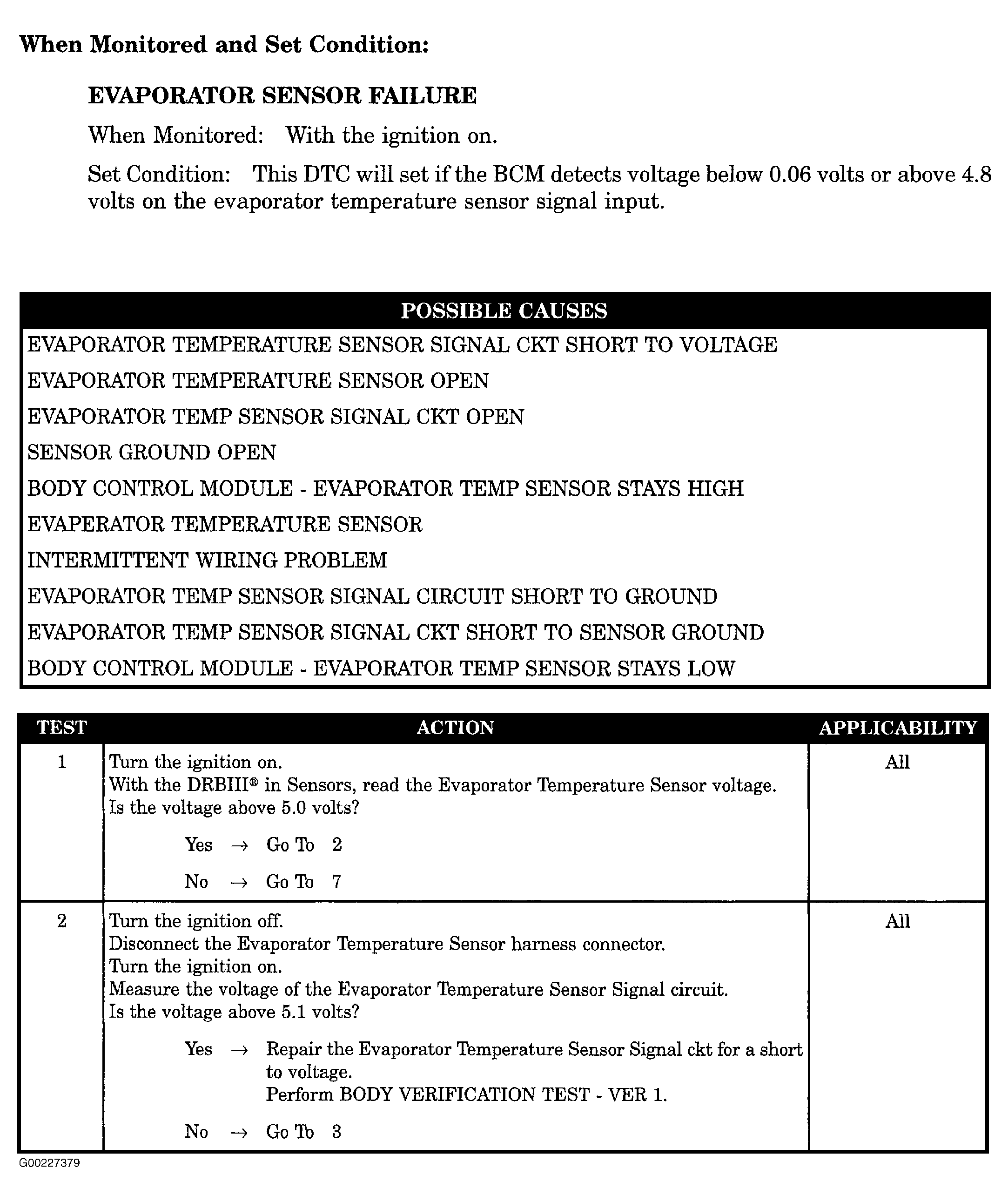

Fig 1: Evaporator Sensor Failure - Steps 1 & 2 (1 Of 4)

Courtesy of CHRYSLER CORP.

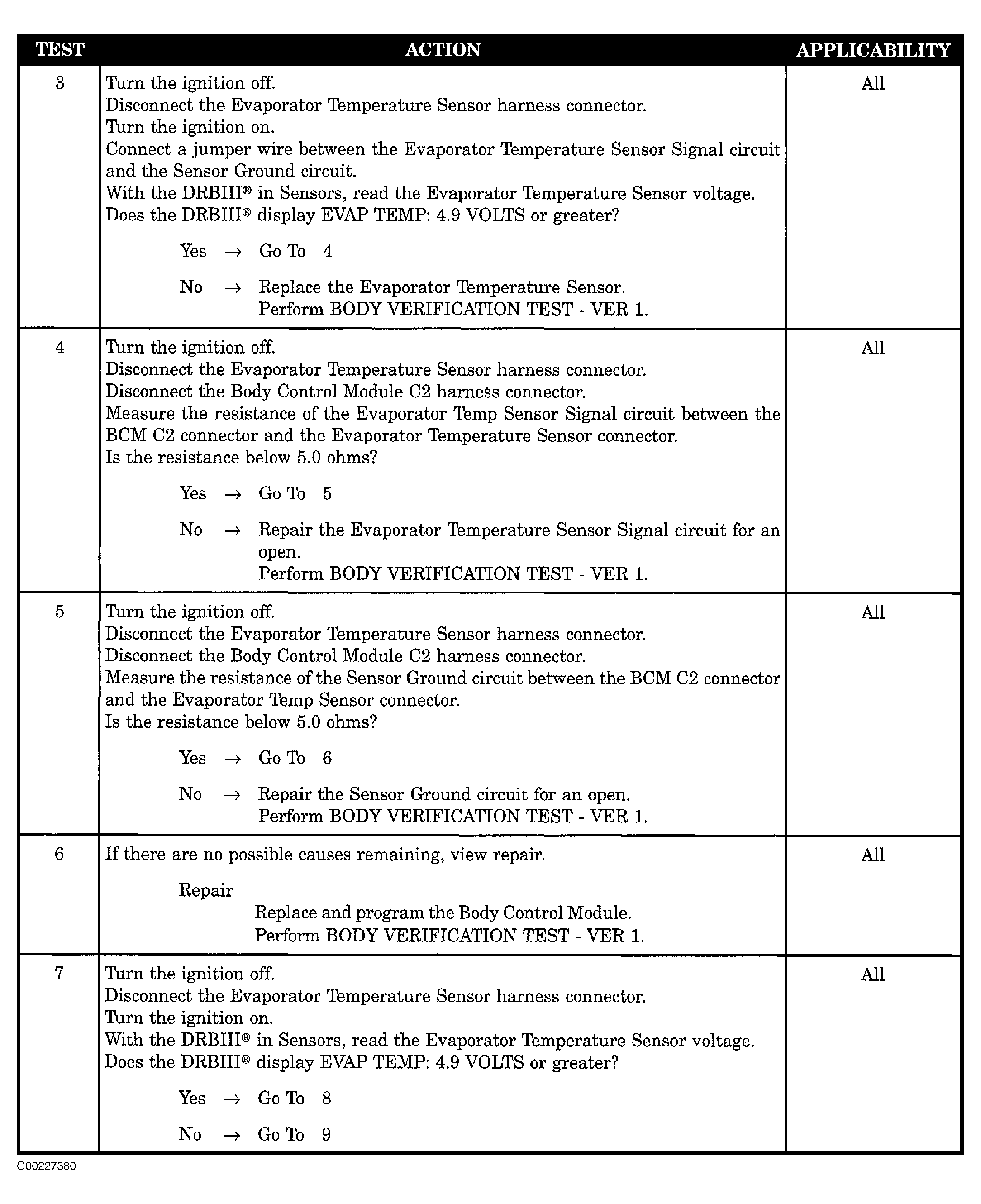

Fig 2: Evaporator Sensor Failure - Steps 3-7 (2 Of 4)

Courtesy of CHRYSLER CORP.

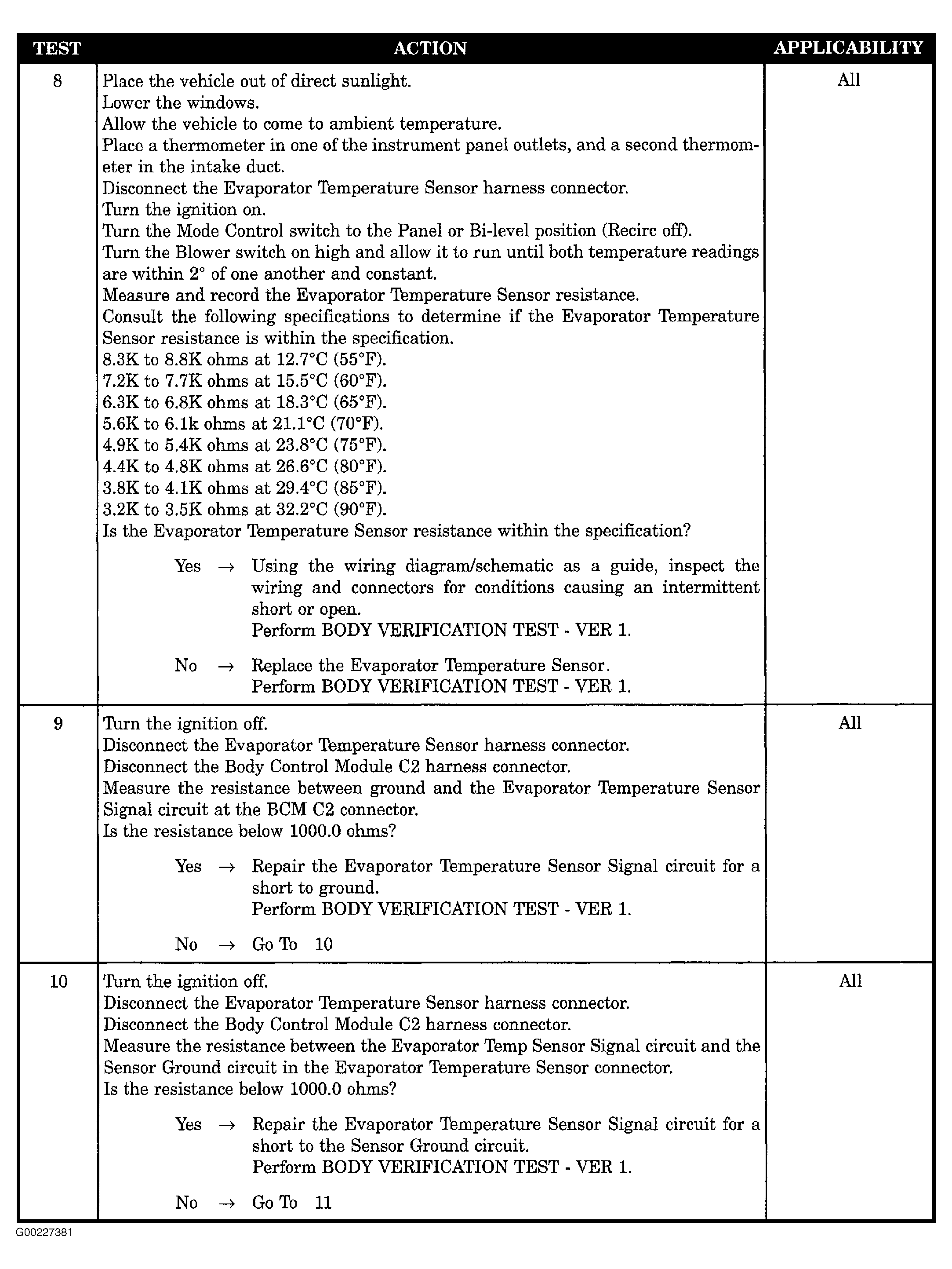

Fig 3: Evaporator Sensor Failure - Steps 8-10 (3 Of 4)

Courtesy of CHRYSLER CORP.

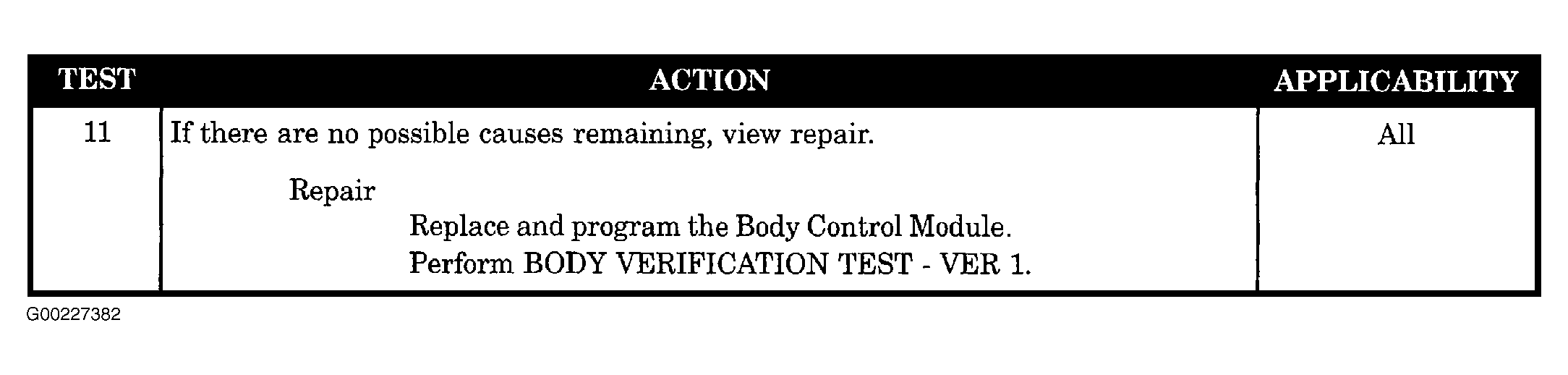

Fig 4: Evaporator Sensor Failure - Step 11 (4 Of 4)

Courtesy of CHRYSLER CORP.
