A/C Mode Door Input Open/Short To Ground

For testing procedures, see Fig 1 -Fig 3 .

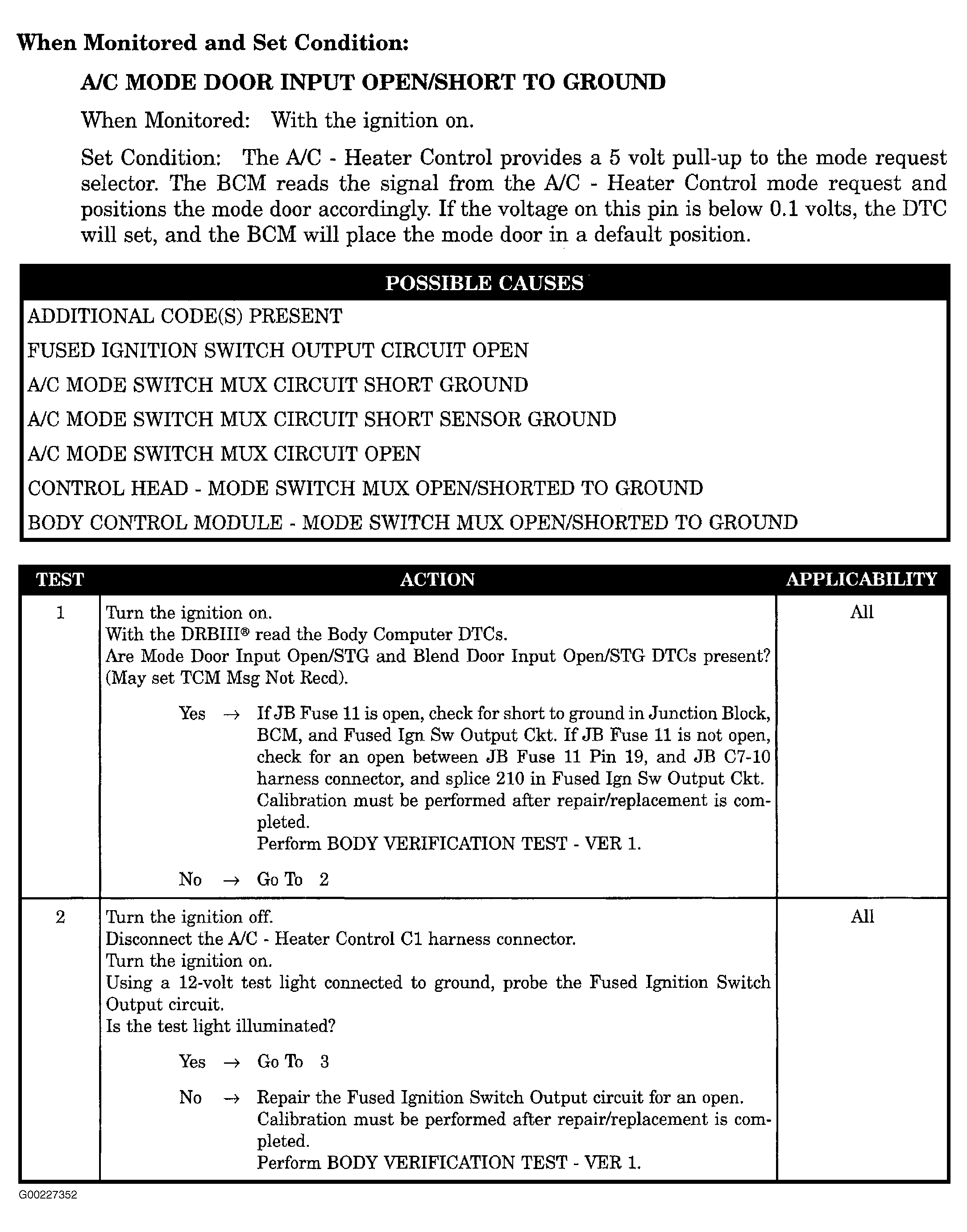

Fig 1: A/C Mode Door Input Open/Short To Ground - Steps 1 & 2 (1 Of 3)

Courtesy of CHRYSLER CORP.

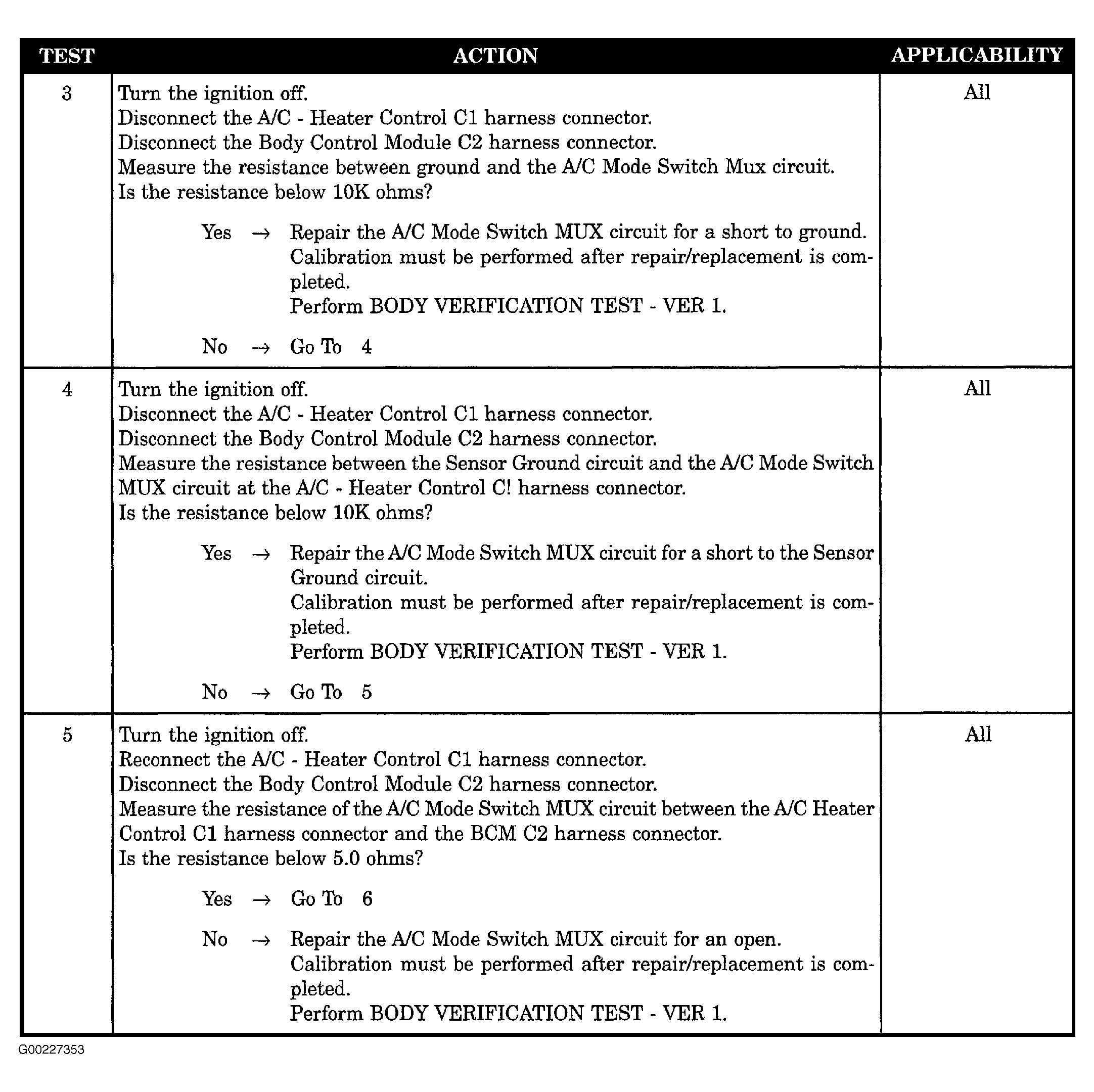

Fig 2: A/C Mode Door Input Open/Short To Ground - Steps 3-5 (2 Of 3)

Courtesy of CHRYSLER CORP.

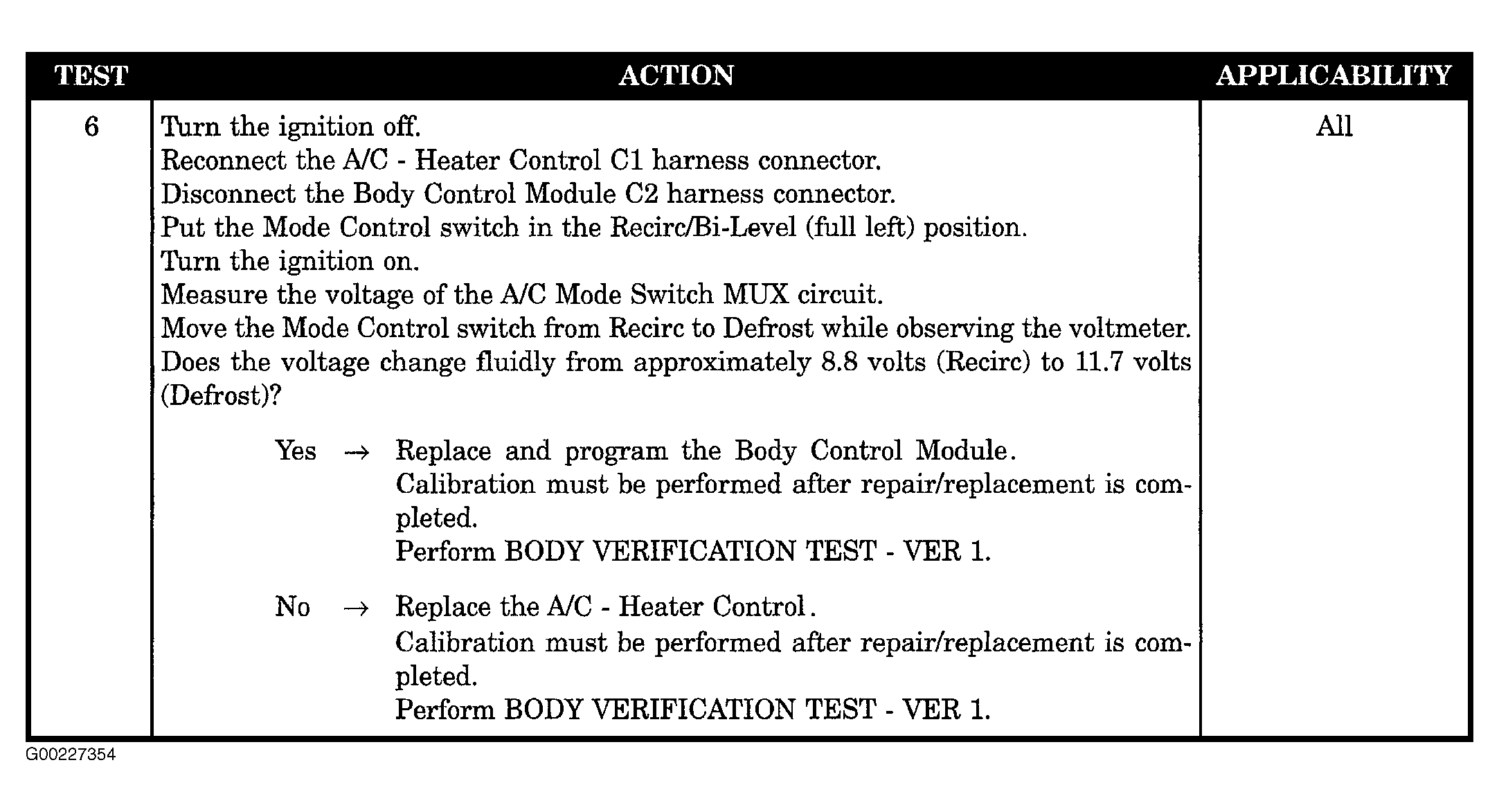

Fig 3: A/C Mode Door Input Open/Short To Ground - Step 6 (3 Of 3)

Courtesy of CHRYSLER CORP.
