A/C Head, EBL Input Shorted To Ground

NOTE: EBL is rear window defogger.

For testing procedures, see Fig 1 -Fig 3 .

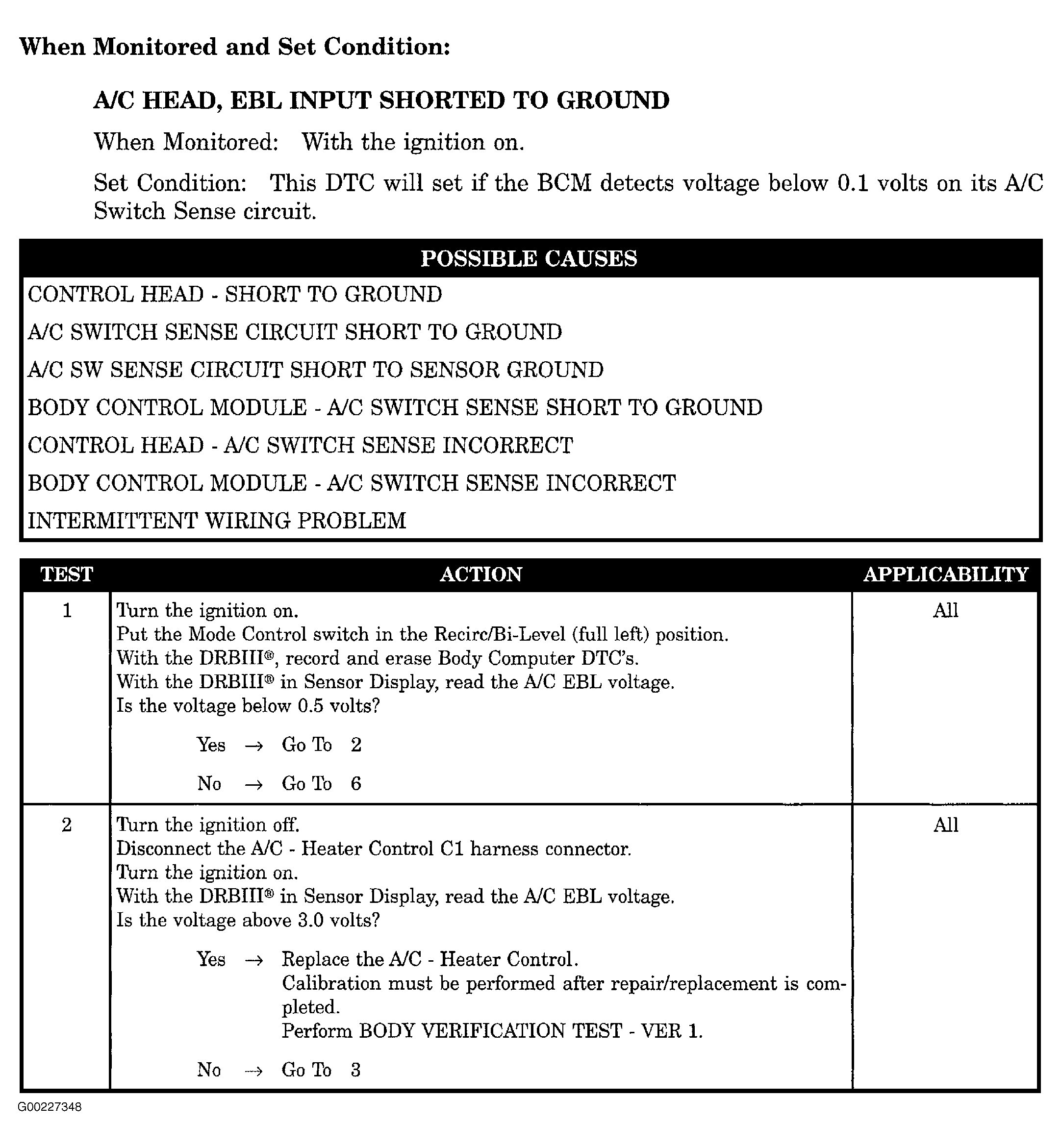

Fig 1: A/C Head, EBL Input Shorted To Ground - Steps 1 & 2 (1 Of 3)
G00227348Courtesy of CHRYSLER CORP.

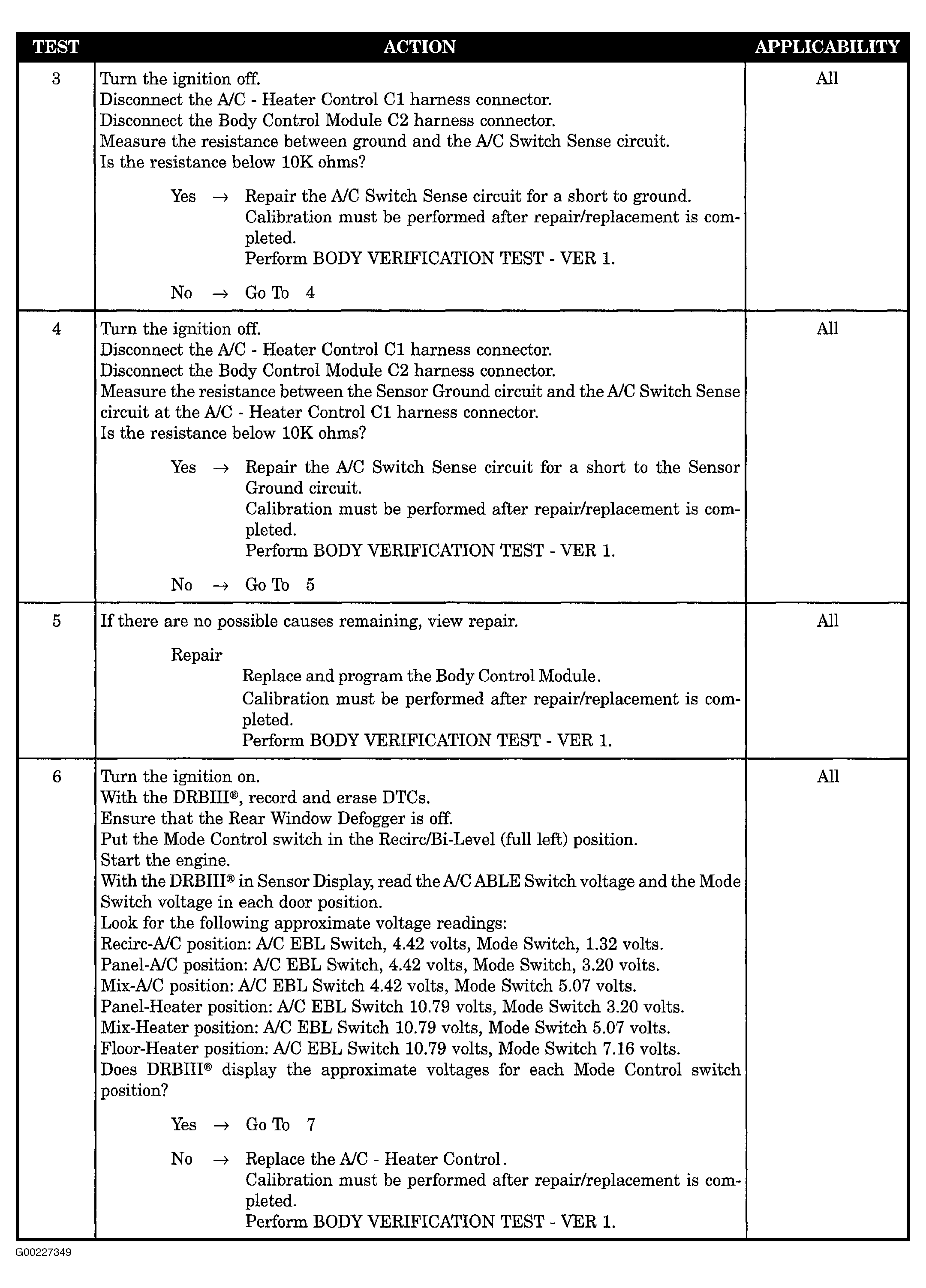

Fig 2: A/C Head, EBL Input Shorted To Ground - Steps 3-6 (2 Of 3)
G00227349Courtesy of CHRYSLER CORP.

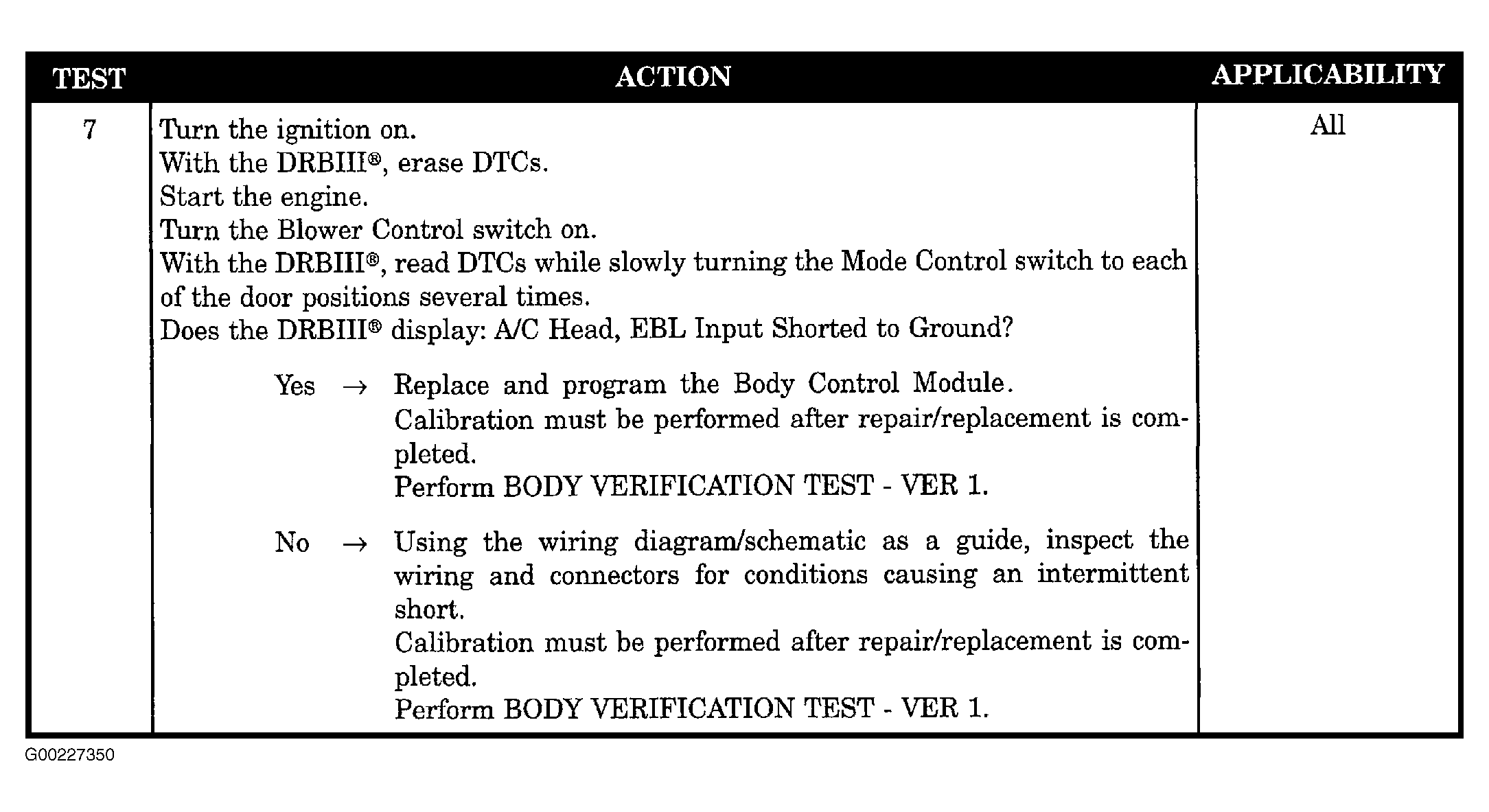

Fig 3: A/C Head, EBL Input Shorted To Ground - Step 7 (3 Of 3)
G00227350Courtesy of CHRYSLER CORP.
