A/C Head, EBL Input Shorted To Battery

NOTE: EBL is rear window defogger.

For testing procedures, see Fig 1 and Fig 2 .

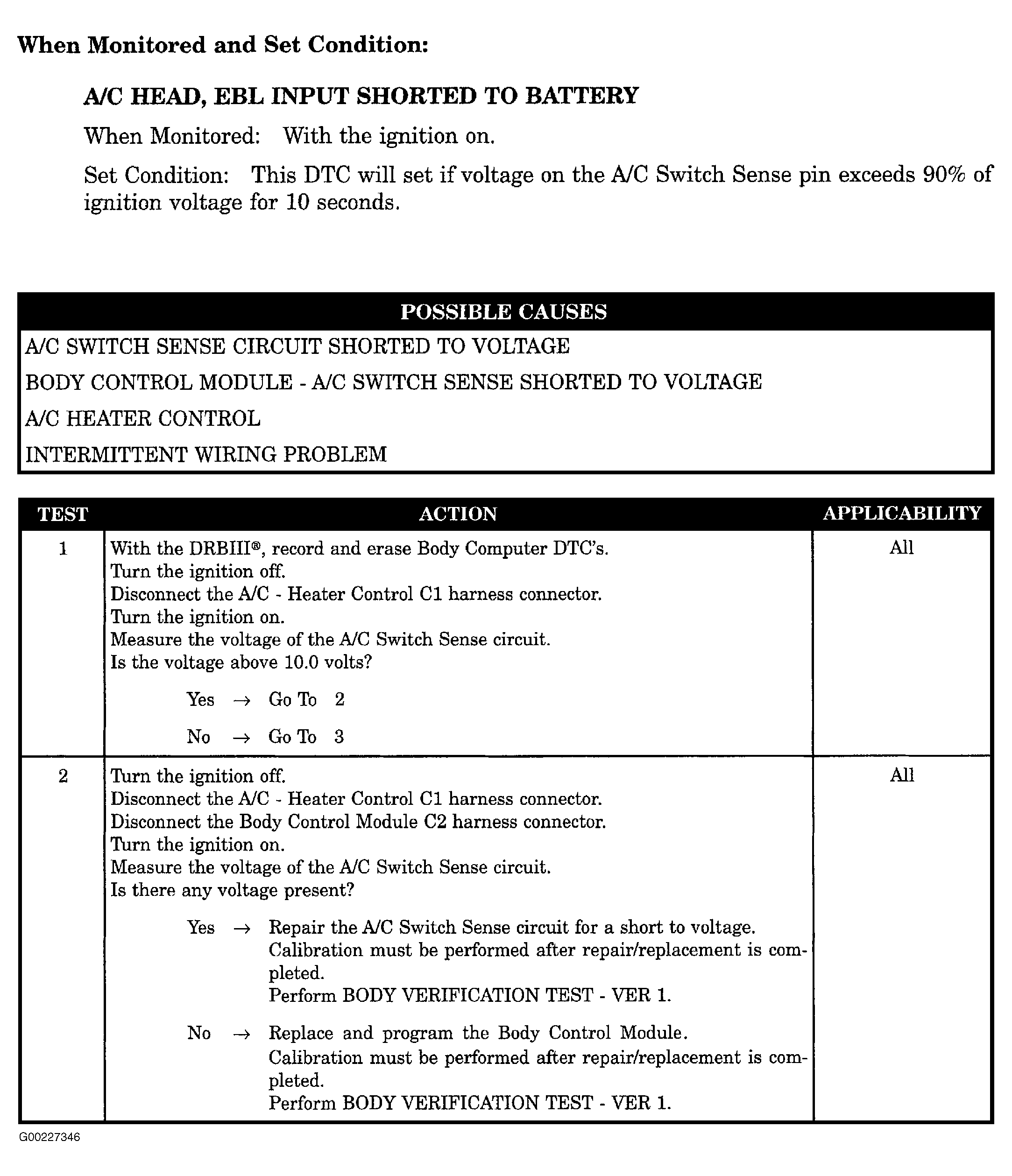

Fig 1: A/C Head, EBL Input Shorted To Battery - Steps 1 & 2 (1 Of 2)
G00227346Courtesy of CHRYSLER CORP.

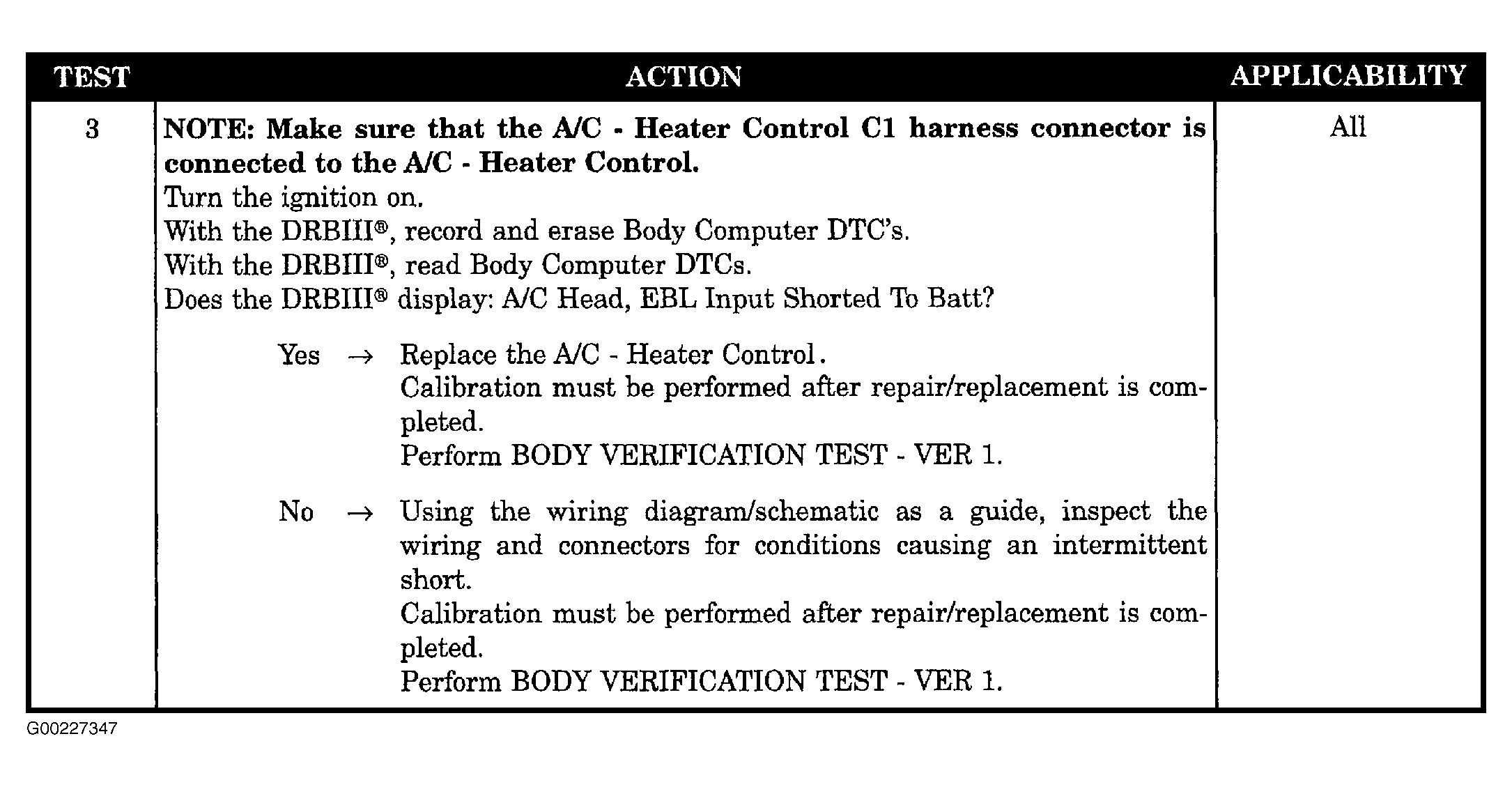

Fig 2: A/C Head, EBL Input Shorted To Battery - Step 3 (2 Of 2)
G00227347Courtesy of CHRYSLER CORP.
