A/C Head, A/C Switch Failure

For testing procedures, see Fig 1 .

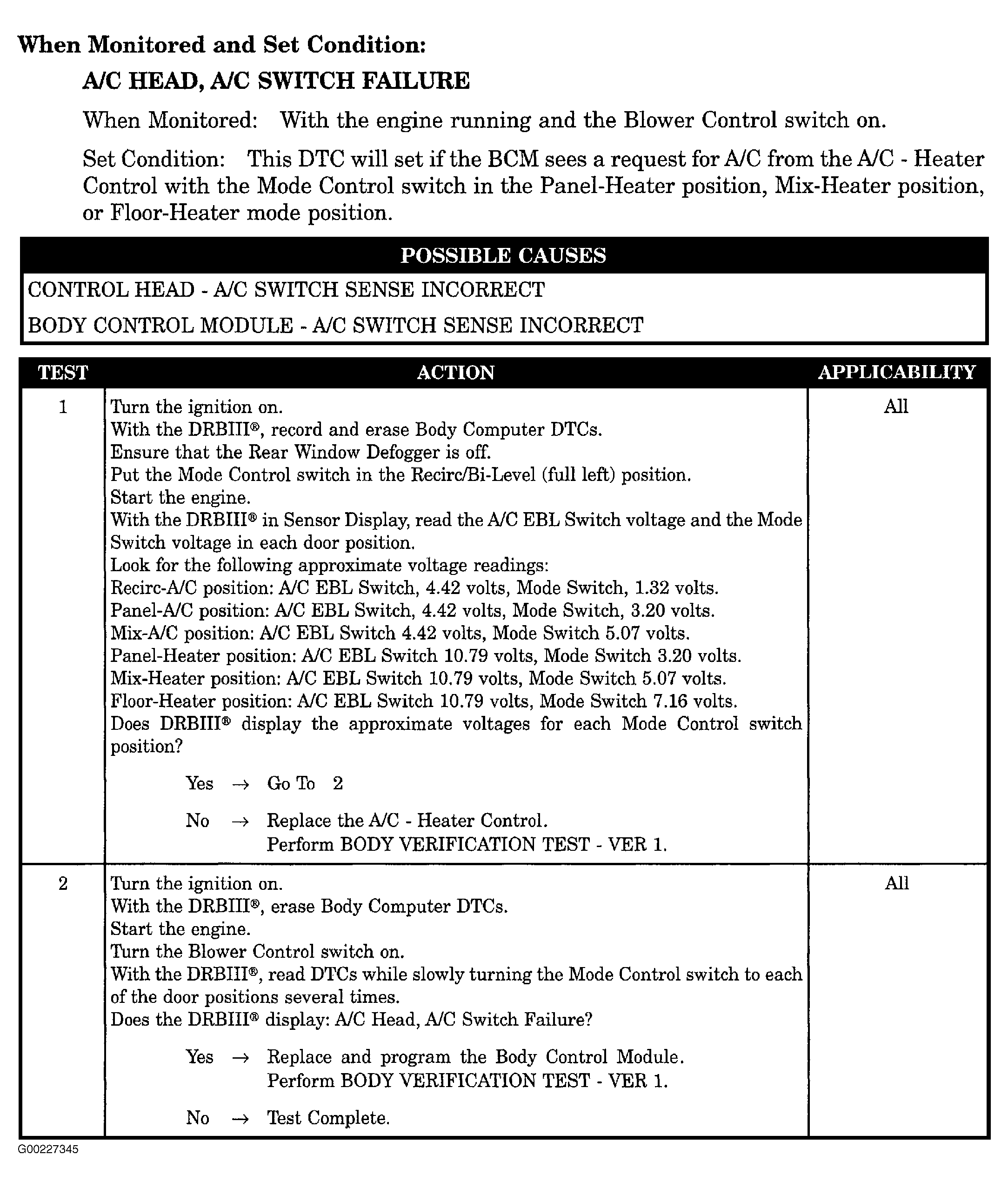

Fig 1: A/C Head, A/C Switch Failure

G00227345

Courtesy of CHRYSLER CORP.
