Headlight Delay Relay Inoperative

For testing procedures, see Fig 1 .

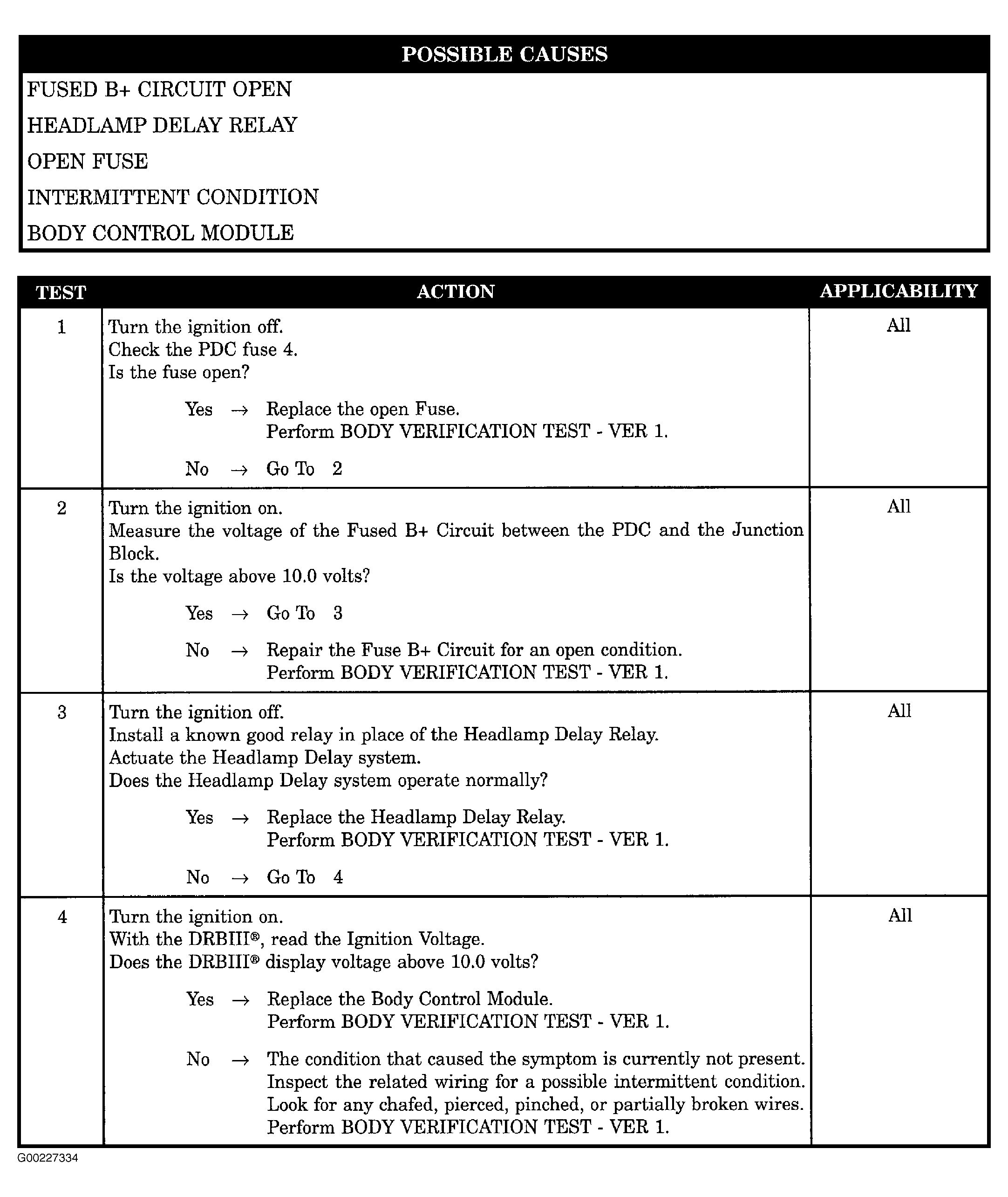

Fig 1: Headlight Delay Relay Inoperative

G00227334

Courtesy of CHRYSLER CORP.
