No Response From PCM (PCI Bus)

For testing procedures, see Fig 1 and Fig 2 .

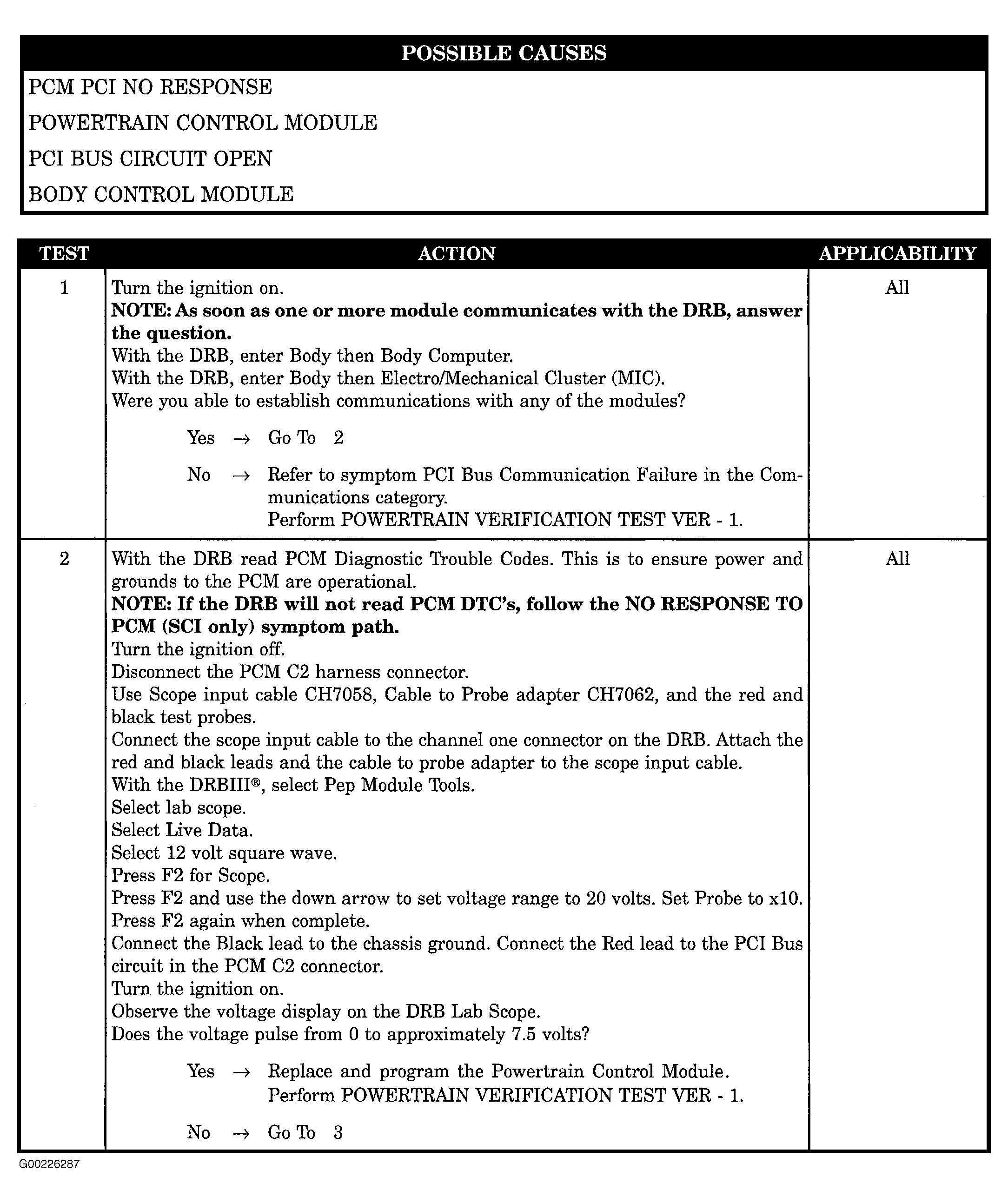

Fig 1: No Response From PCM (PCI Bus) - Steps 1 & 2 (1 Of 2)
G00226287Courtesy of CHRYSLER CORP.

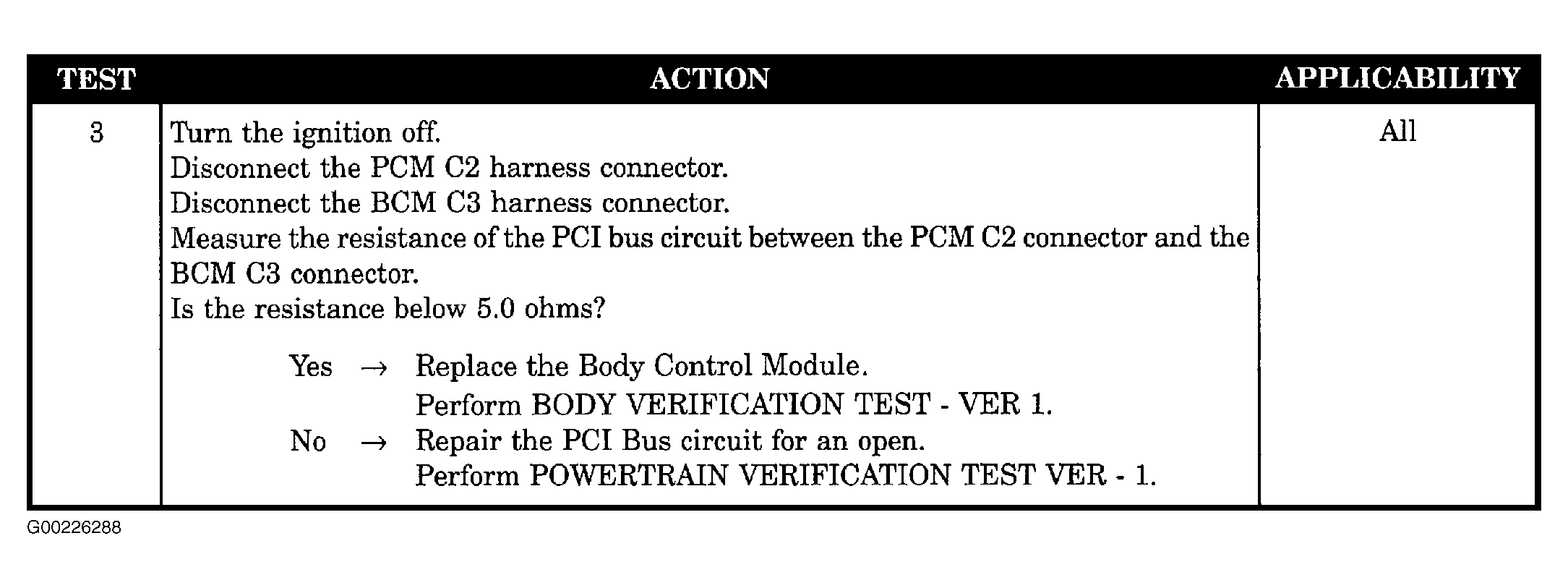

Fig 2: No Response From PCM (PCI Bus) - Step 3 (2 Of 2)
G00226288Courtesy of CHRYSLER CORP.
