Chime Sounds With Drivers Seat Belt Fastened

For testing procedures, see Fig 1 .

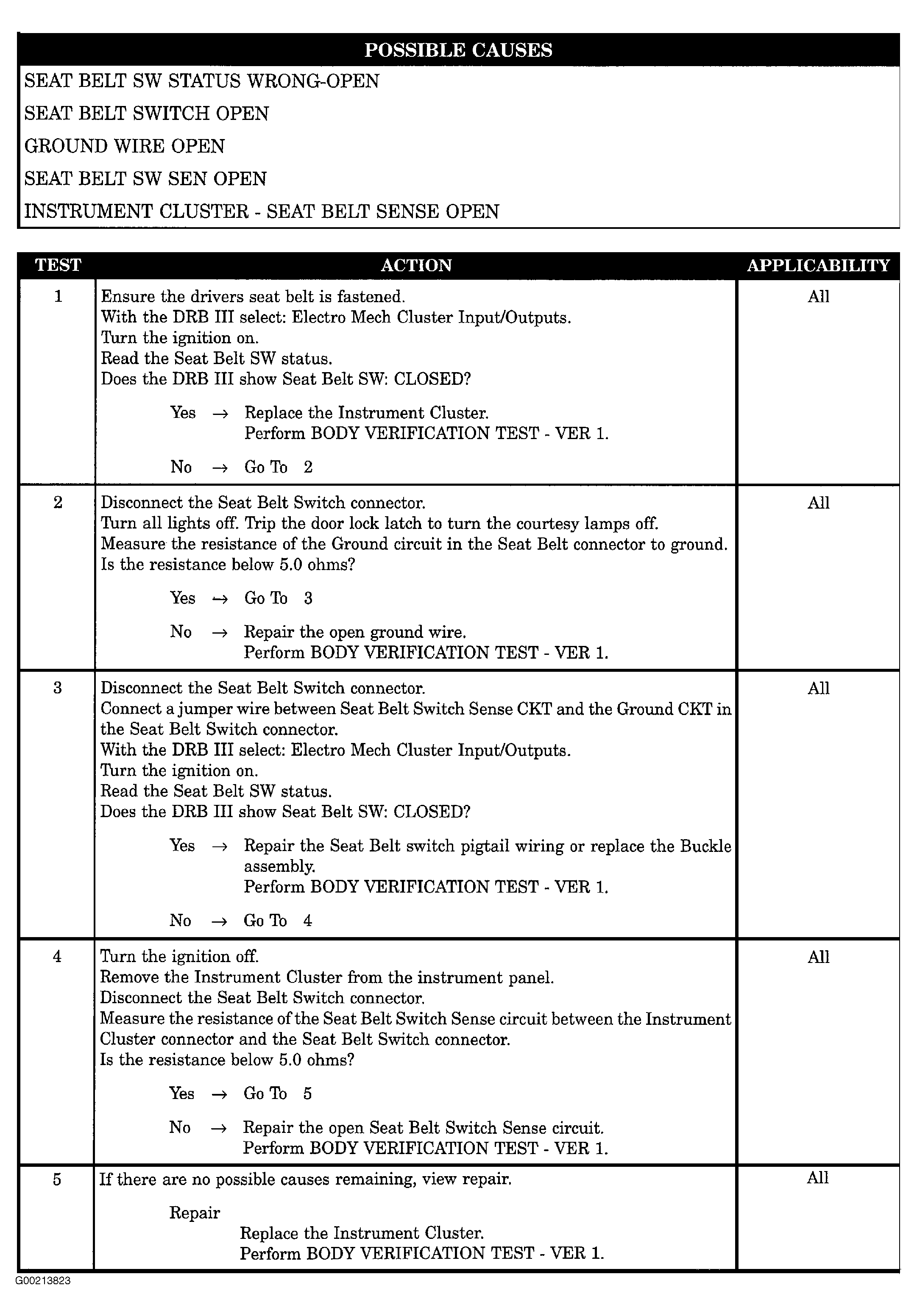

Fig 1: Chime Sounds With Drivers Seat Belt Fastened

G00213823

Courtesy of CHRYSLER CORP.
