Chime Inoperative With Key In Ignition & Drivers Door Open

For testing procedures, see Fig 1 and Fig 2 .

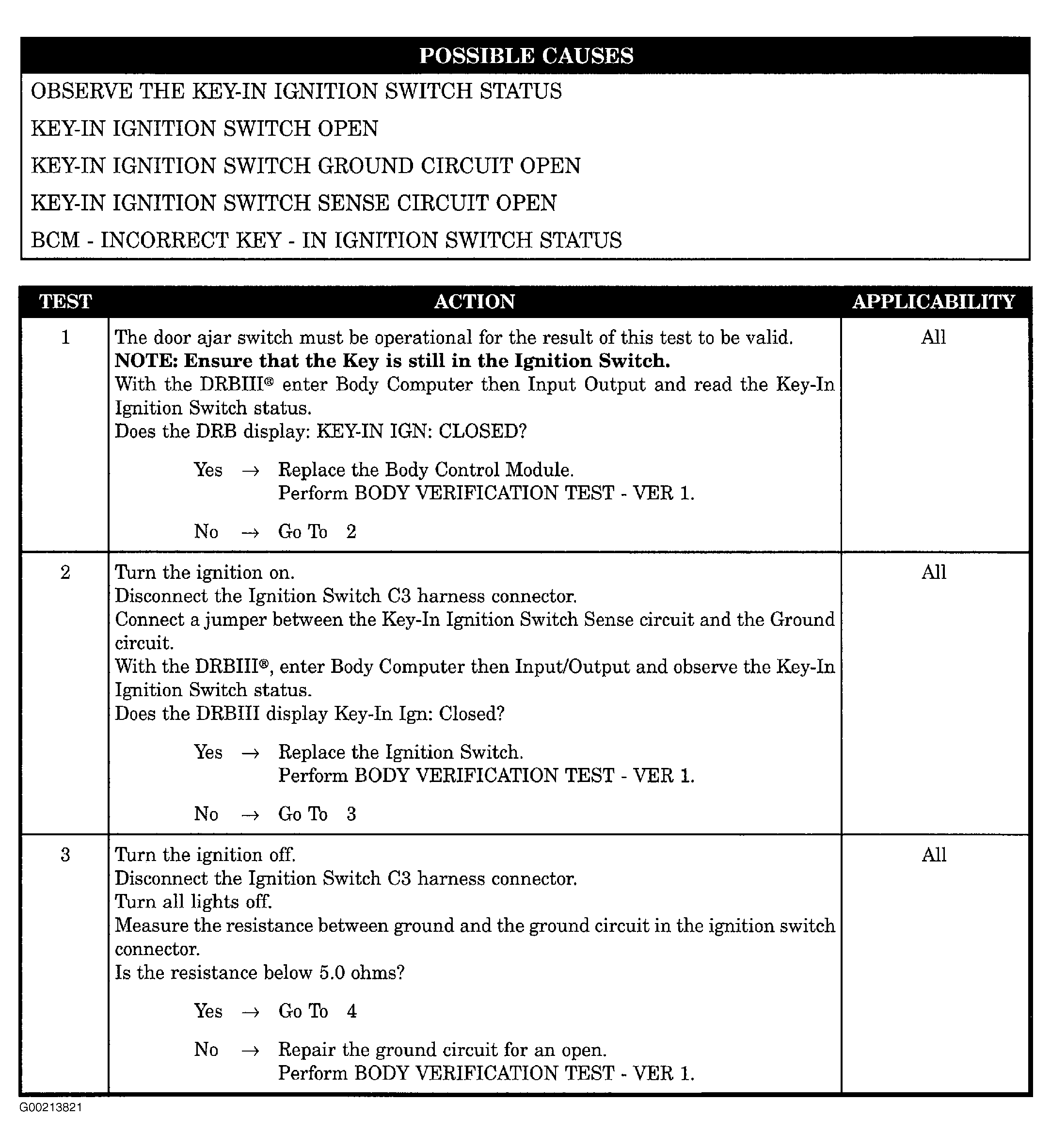

Fig 1: Chime Inoperative With Key-In Ignition & Drivers Door Open - Steps 1-3 (1 Of 2)

Courtesy of CHRYSLER CORP.

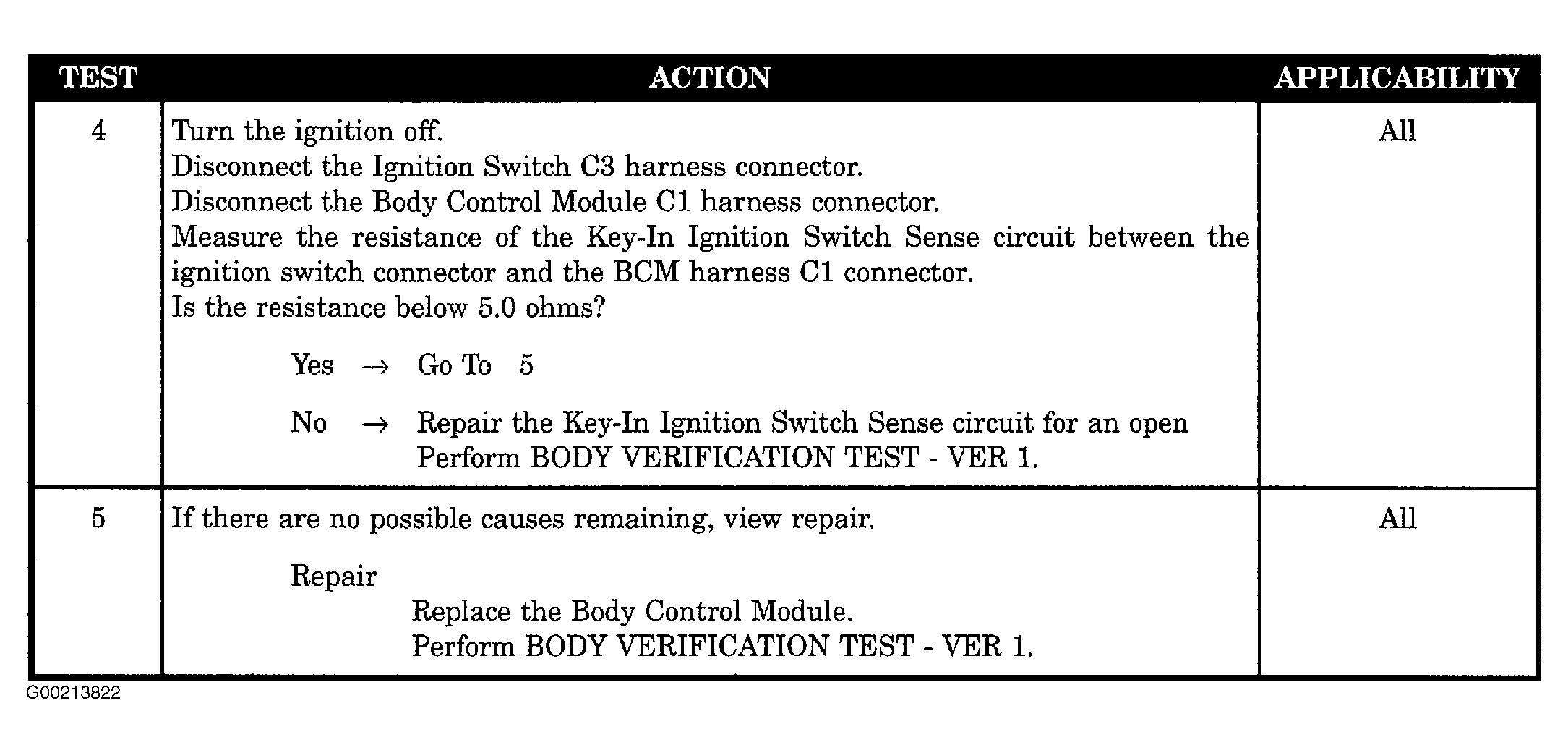

Fig 2: Chime Inoperative With Key-In Ignition & Drivers Door Open - Steps 4 & 5 (2 Of 2)

Courtesy of CHRYSLER CORP.
