Chime Inoperative At All Times

For testing procedures, see Fig 1 .

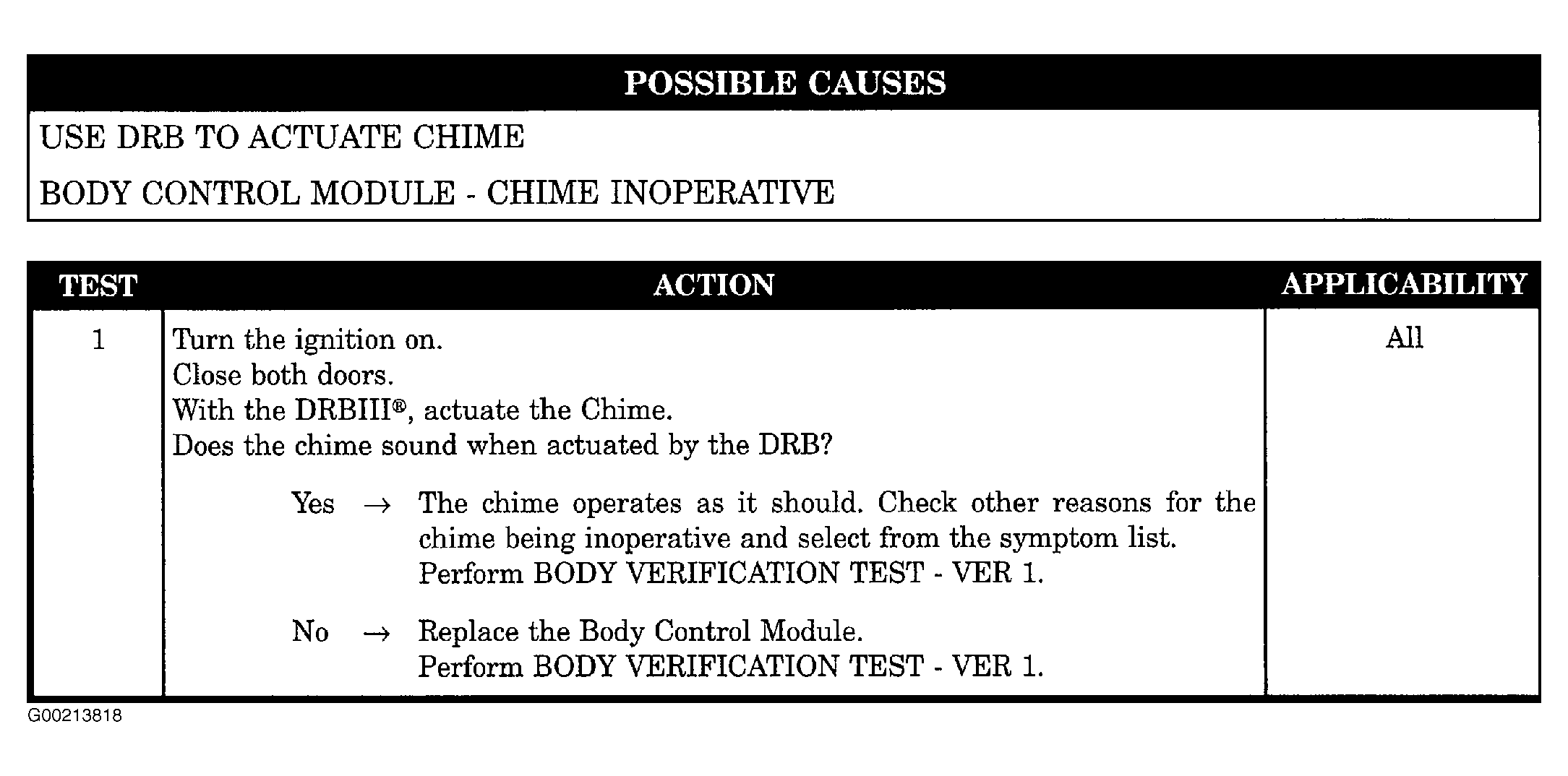

Fig 1: Chime Inoperative At All Times

G00213818

Courtesy of CHRYSLER CORP.
