Radio C2 Connector End View

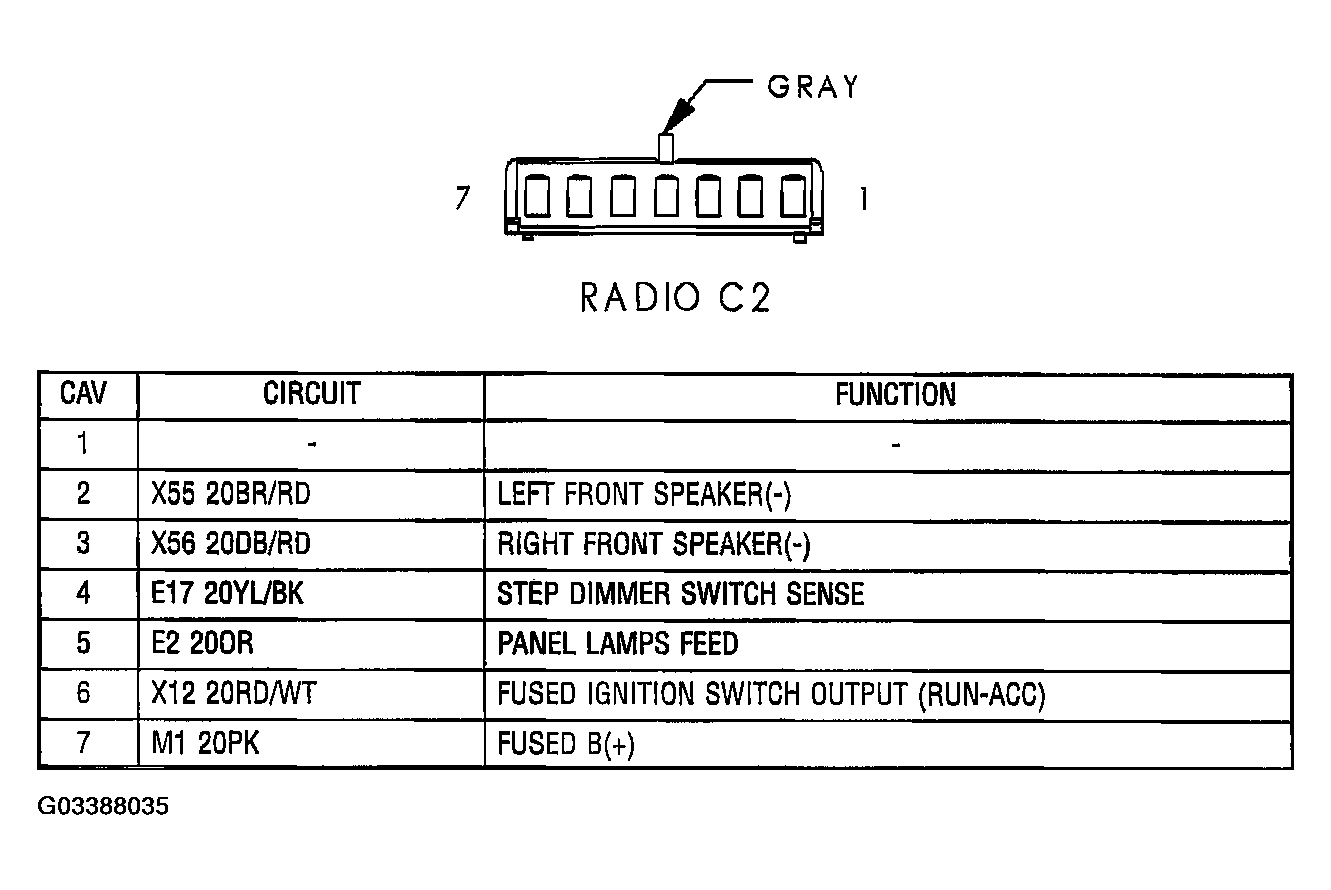

Fig 1: Radio C2 Connector End View

G03388035

Courtesy of CHRYSLER GROUP, LLC
