Radiator Fan Motor Connector End View

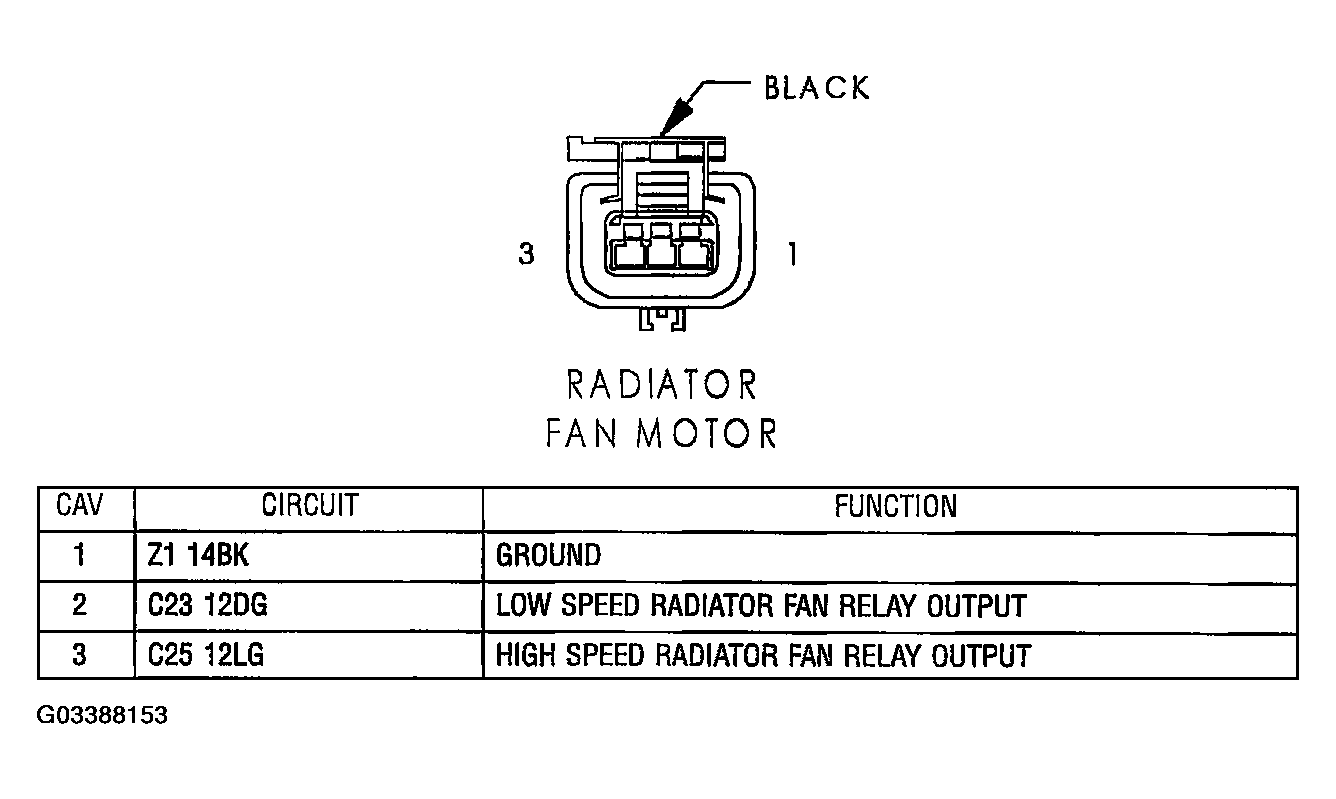

Fig 1: Radiator Fan Motor Connector End View

G03388153

Courtesy of CHRYSLER GROUP, LLC
