Left Tail/Stop/Turn Signal Lamp Connector End View

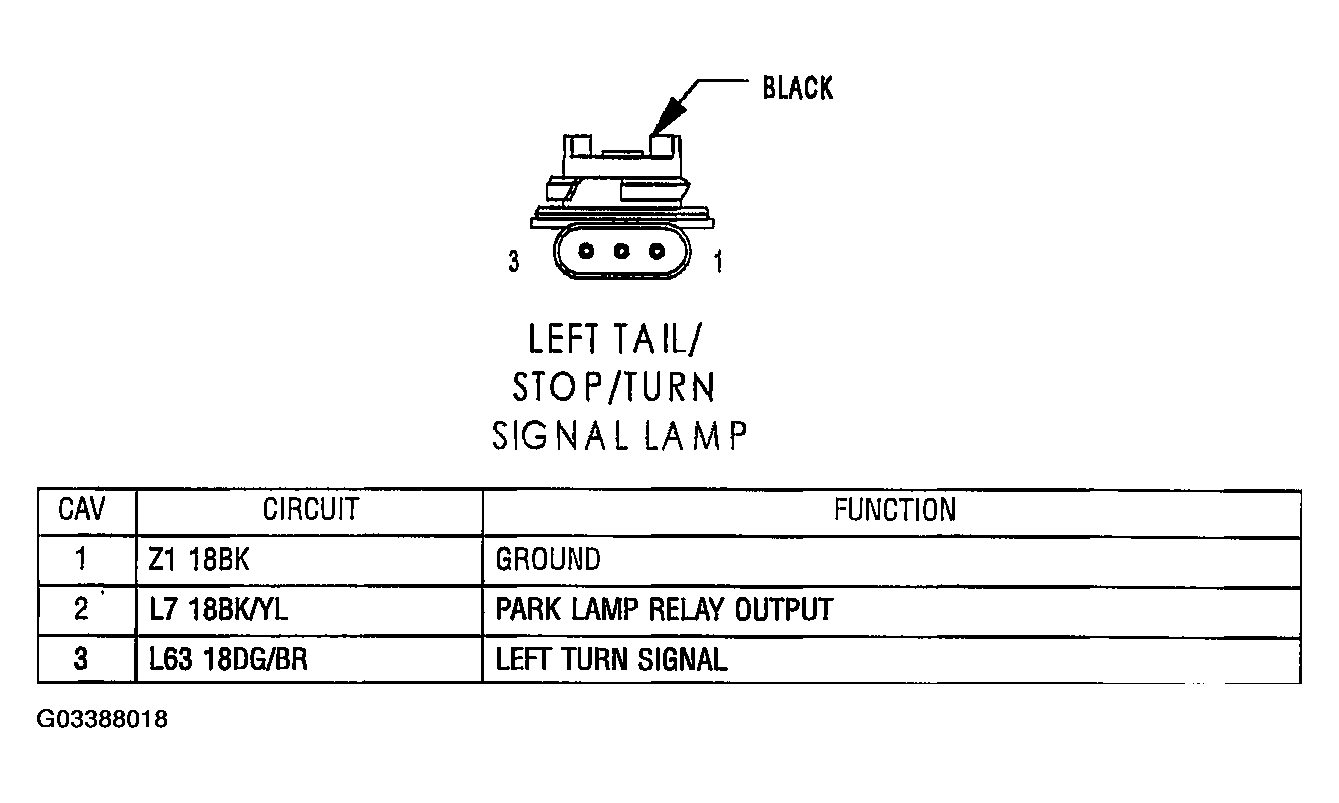

Fig 1: Left Tail/Stop/Turn Signal Lamp Connector End View

G03388018

Courtesy of CHRYSLER GROUP, LLC
