Driver Door Ajar Switch Connector End View

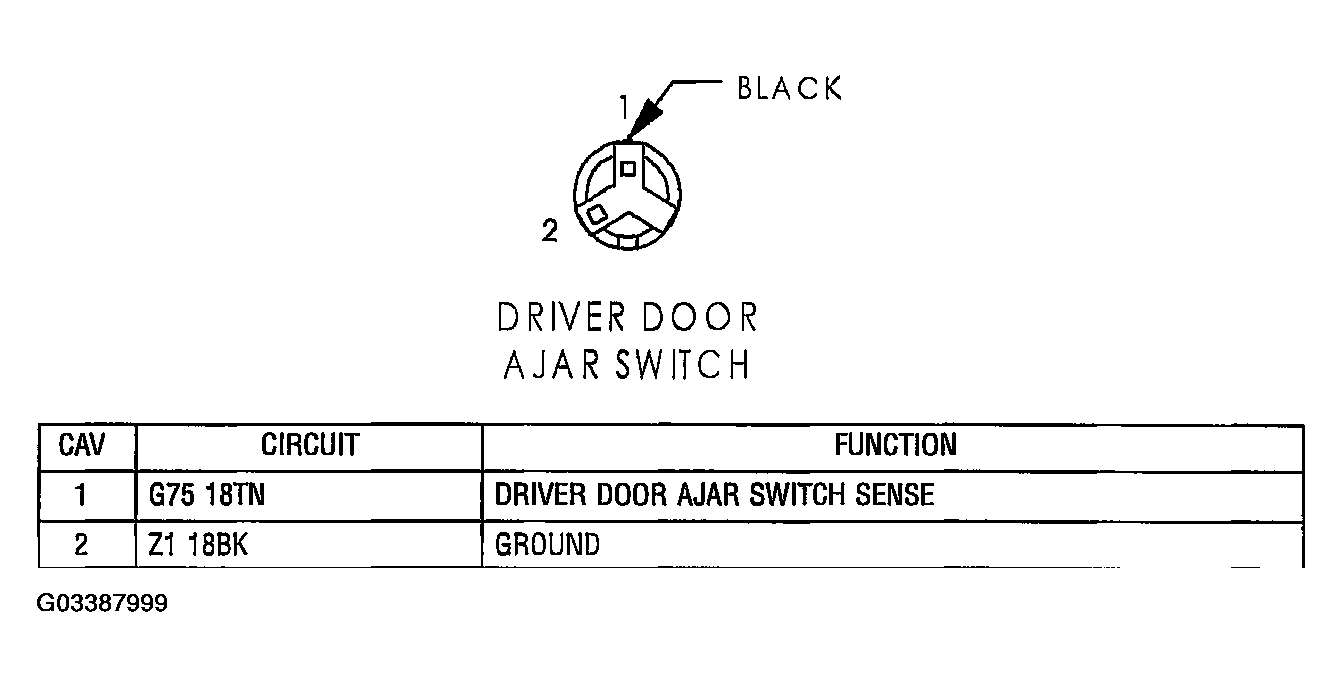

Fig 1: Driver Door Ajar Switch Connector End View

G03387999

Courtesy of CHRYSLER GROUP, LLC
