Manual A/C System

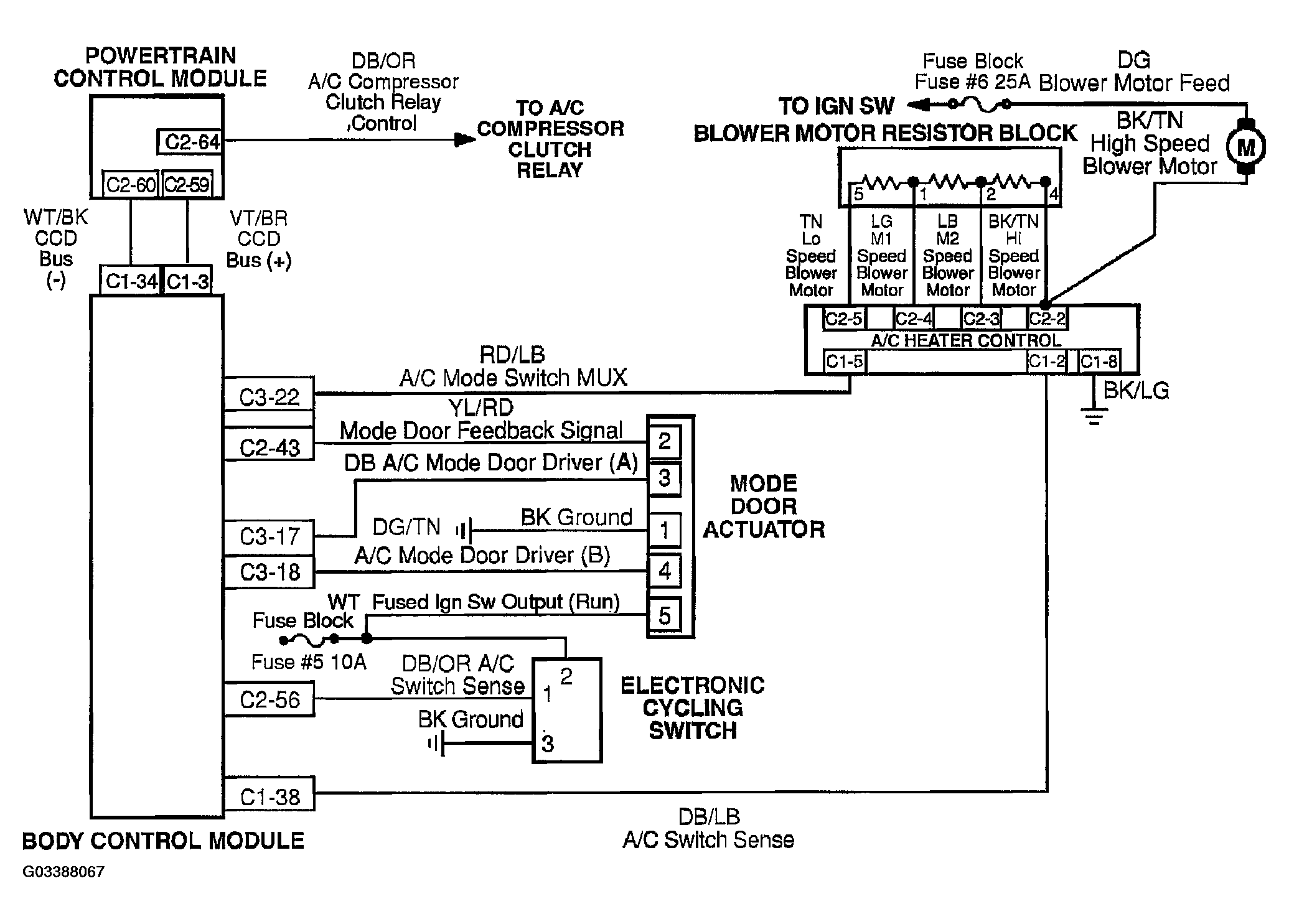

Fig 1: Manual A/C System Schematic Diagram

G03388067

Courtesy of DAIMLERCHRYSLER CORP.
