Interior Lighting

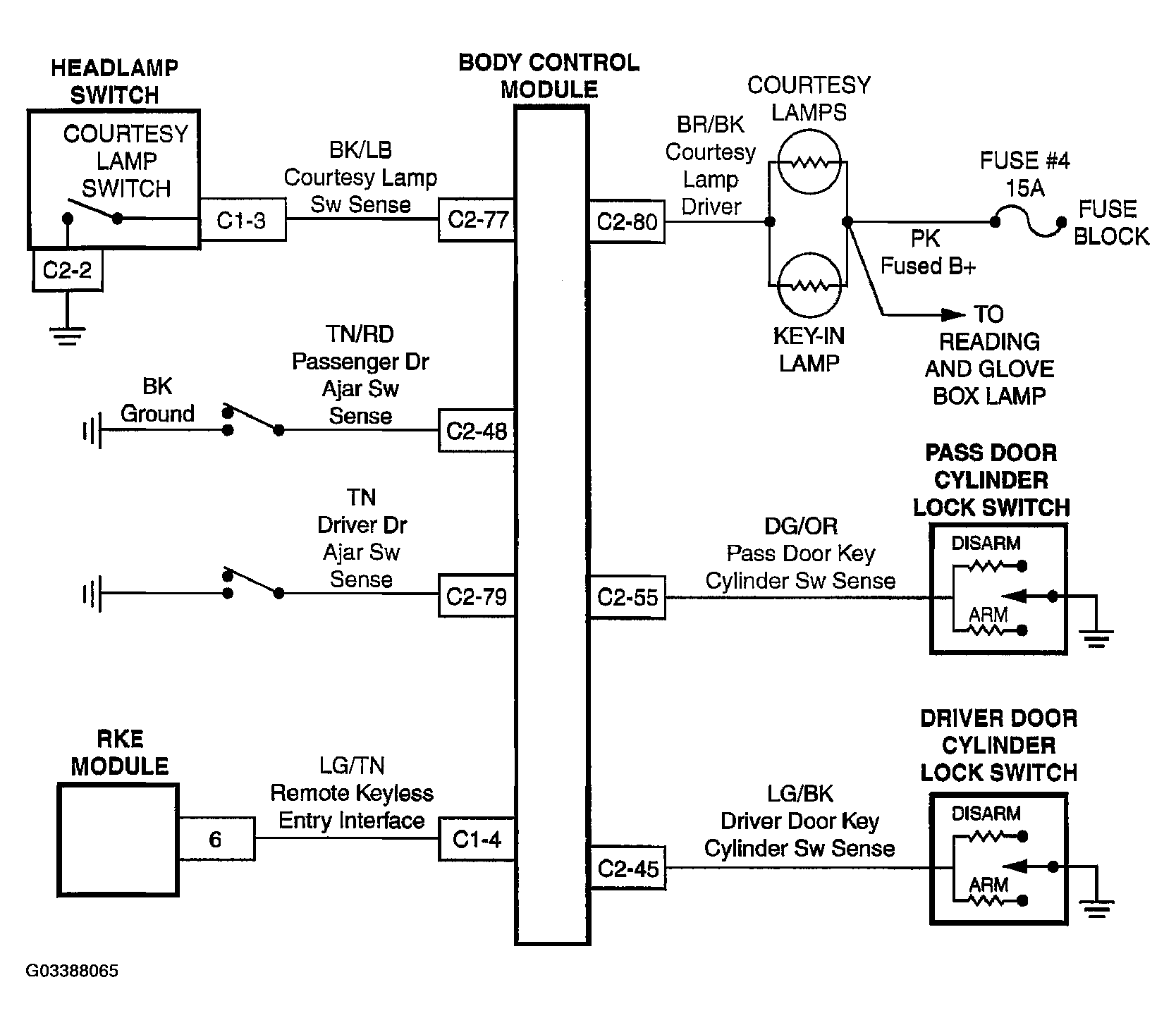

Fig 1: Interior Lighting Schematic Diagram

G03388065

Courtesy of DAIMLERCHRYSLER CORP.
