Driver Power Window/Door Lock Switch -11 Way

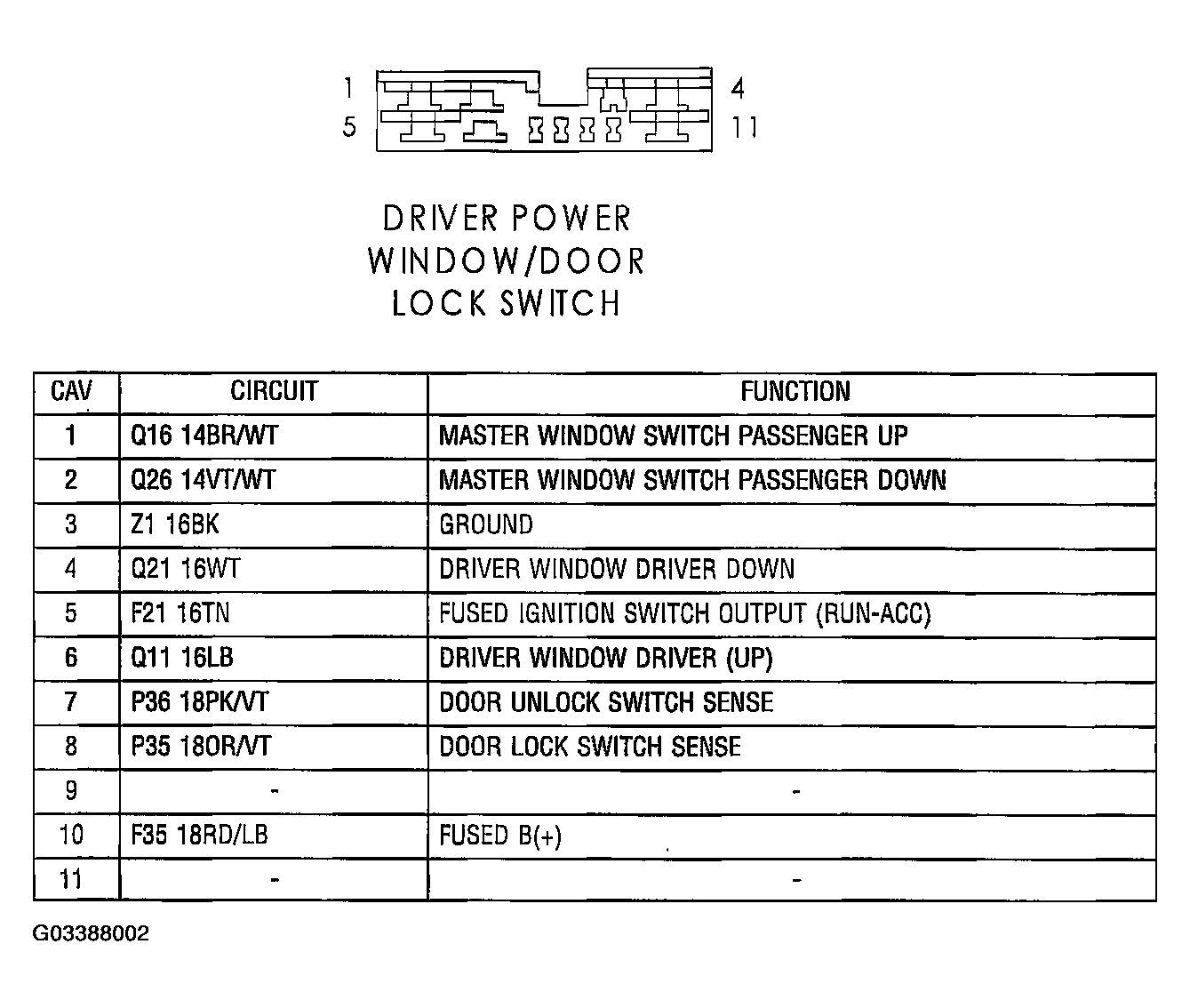

Fig 1: Identifying Driver Power Window/Door Lock Switch Connector

G03388002

Courtesy of DAIMLERCHRYSLER CORP.
